AMP Research Power Step Installation Manual page 7

A M P R E S E A R C H P O W E R S T E P

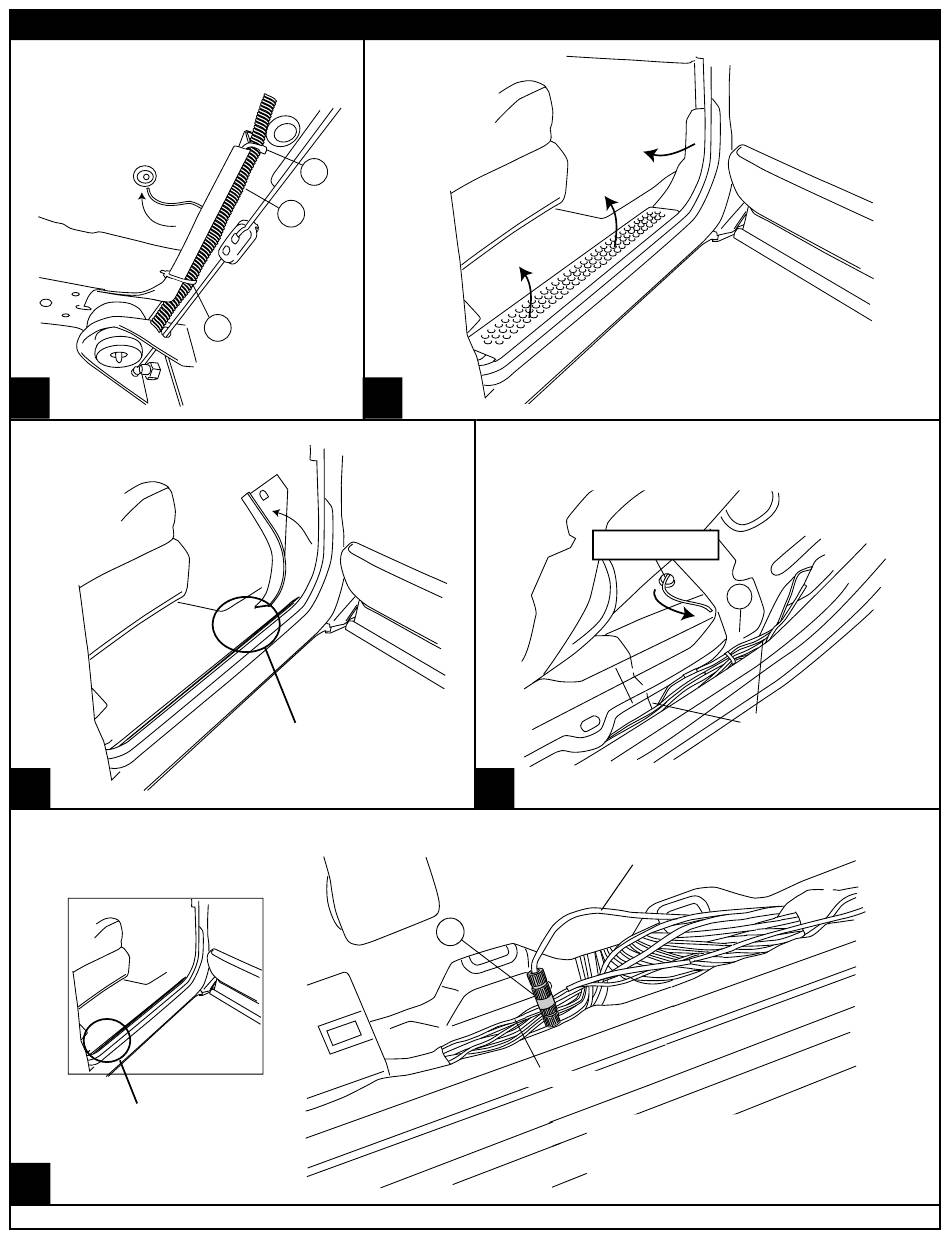

Puncture grommet and
thread trigger wire
11
Remove kick plate
13
Roll back carpet
See Detail
15
www.amp-research.com
14
4
14
12
Roll back carpet
See Detail 14
– F O R D S U P E R D U T Y & E X C U R S I O N
T M
Roll back carpet and pull trigger-wire through
grommet.
(See Wiring Guides for wiring details)
14
Connecting Wire or leg of Double Diode
18
Rear Door Adjar Wire
(See wiring guides for details and
step-by-step instuctions; colors and
proceedures will vary per model year)
6
7/12
TRIGGER WIRE
6
wire bundle
IM75104 rev 09.19.12
