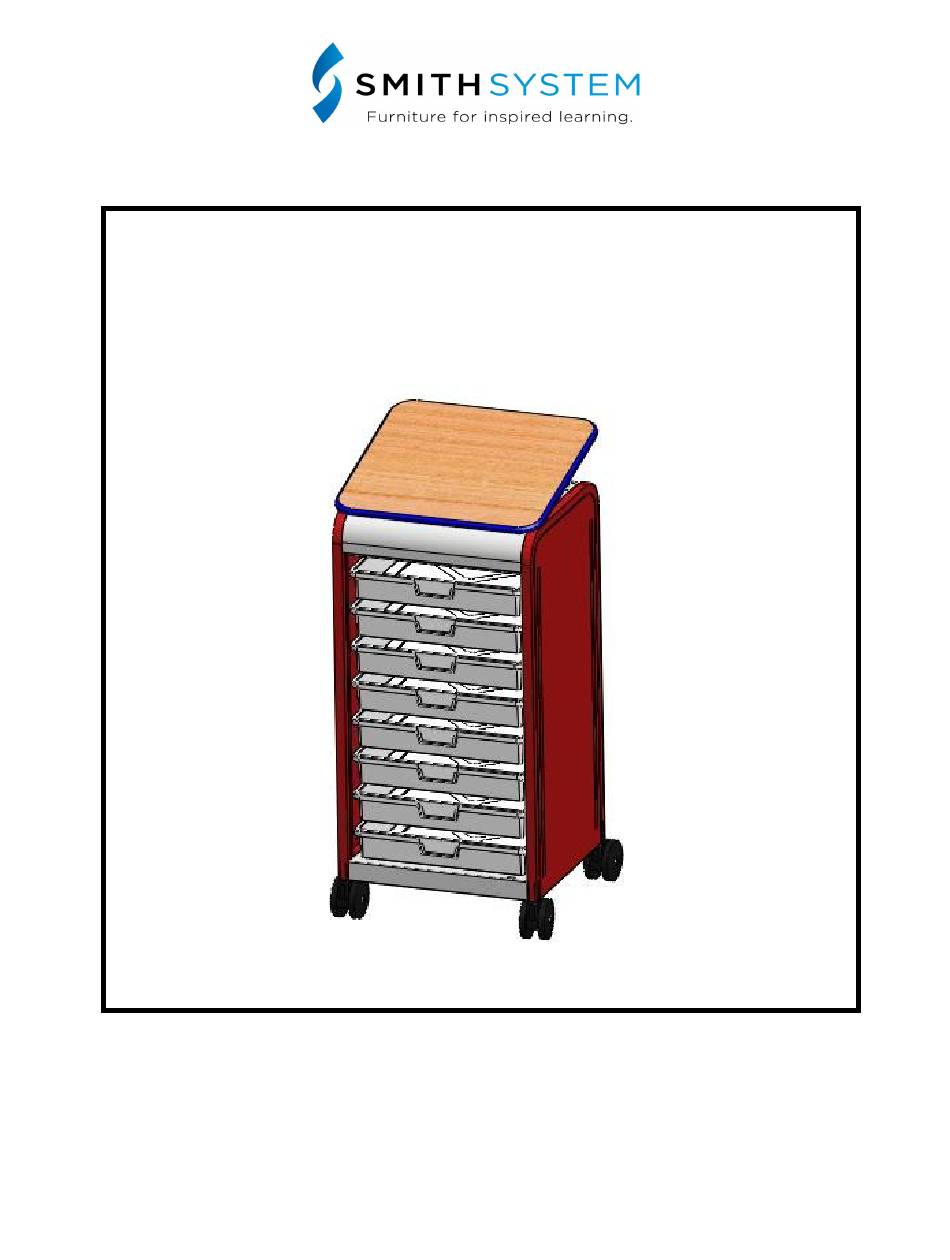

- Page 1 Cabinet Lectern Pole Kit Assembly Instructions If you have damaged or missing components, Please contact customer service. 800-328-1061 Form# 179966 07/2017...
- Page 2 Hardware and Components #10X5/8” Wood Screw P/N – 70080 Steel Washer 3/8-16 Hex Head Bolt Cascade Cab. Lectern Handle QTY. 4 QTY. 12 (2) 1.25” and (2) .5” QTY. 2 Cascade Cab. Lectern Brackets Cascade Lectern Top QTY. 2 QTY. 1 Cascade Cabinet Unit QTY. 1 Special Notes 1. Check that all components are accounted for and undamaged before a ssembling. 2. Please assemble the product in a clean and dry area. 3. For larger units you may need another person to help assemble the product. 4. Clean the product with a mild cleaner and a damp cloth. If you have damaged or missing components, Please contact customer service. 800-328-1061 Form# 179966 07/2017...
- Page 3 Assembly Instructions Step 1: Flip the top over and align the (2) brackets and the (2) Lectern Poles with the Predrilled holes. Be sure that the slants on the poles and brackets are slanted the same direction. Step 2: Attach the Lectern Poles and the brackets to the top using the provided wood screws. Notice that the arrows on the brackets point toward the INTERIOR of the top once in position. If you have damaged or missing components, Please contact customer service. 800-328-1061 Form# 179966 07/2017...
- Page 4 Step 3: Place the top onto the cascade unit aligning the Poles and Brackets with the holes on the top of the cascade unit. Align the Brackets towards the front of the unit. Step 4: Attach the Top to the cascade unit by using the 1.25” bolts on the rear with the poles, and the 0.5” bolts on the front with the brackets. Be sure to use the washers on the inside of the unit, when attaching the bolts from underneath. If you have damaged or missing components, Please contact customer service. 800-328-1061 Form# 179966 07/2017...
