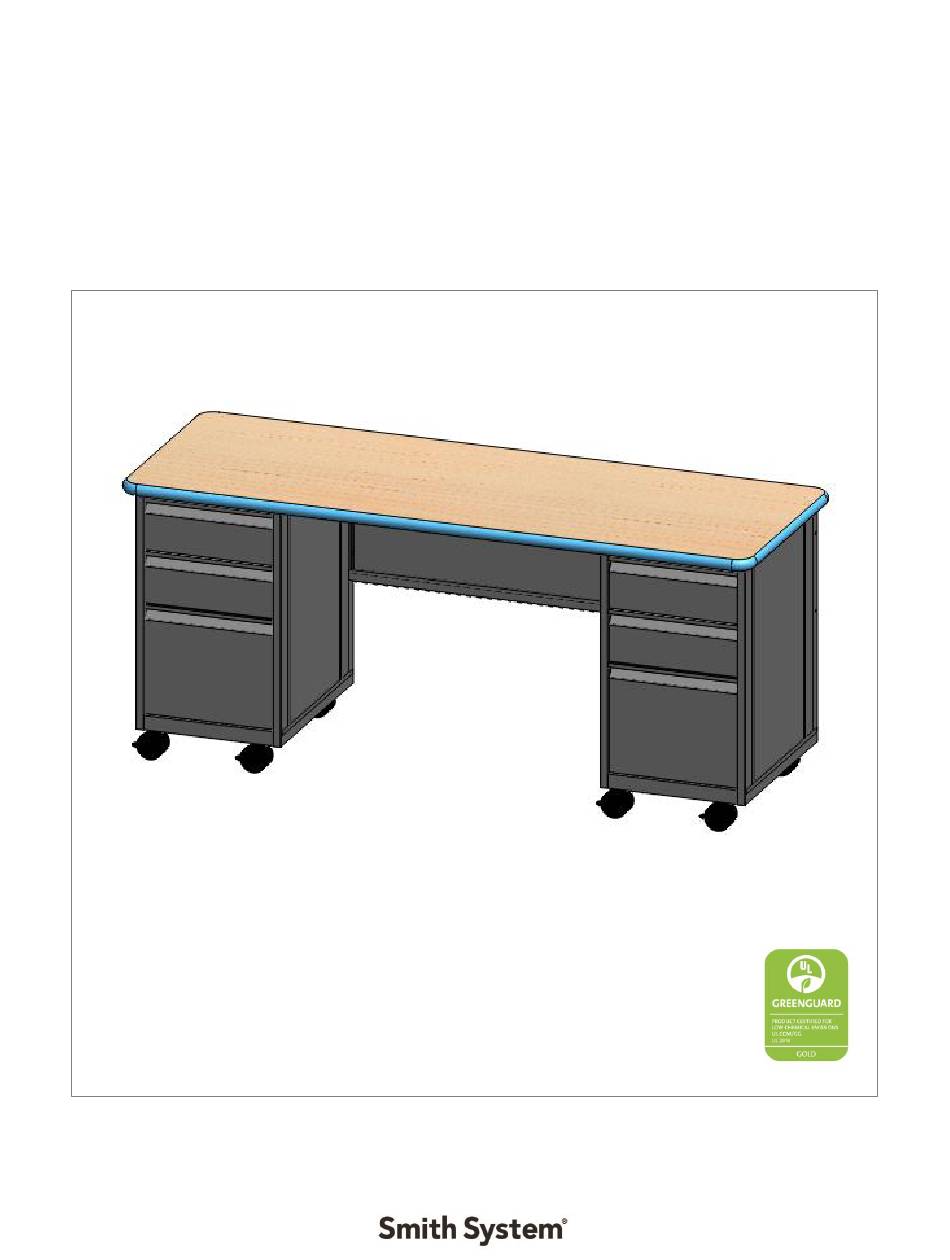

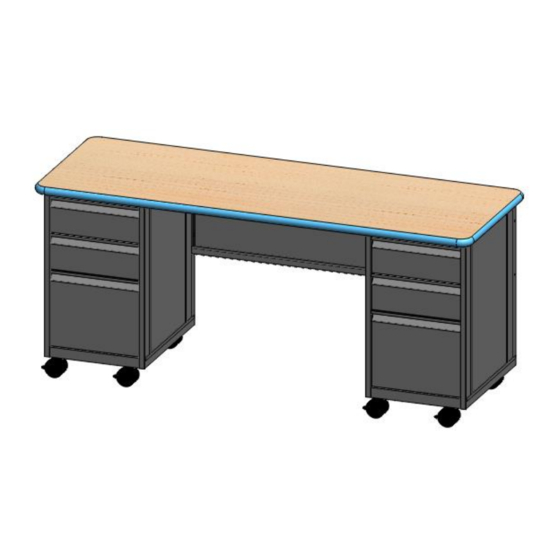

- Page 1 Assembly Instructions Cascade® Double Ped Teacher Desk If you have damaged or missing components, Please contact customer service at 1-800-328-1061 Form# 179951 08/2017...
- Page 2 Hardware and Components #10 Wood Screws ¼-20X1/2” Machine Screws (QTY. 27) (Qty. 8) P/N- 70054 Modesty Panel P/N- 77471 (Qty. 1) Cascade Ped (Qty. 2) Table Top (Qty. 1) Special Notes: Check that all components are accounted for and undamaged before assembling. ...
- Page 3 Assembly Instructions Step 1: Lay the top upside down, with the cut of the T-mold at the back, make sure the laminate is face down, and the pre-drilled holes are facing upwards. Step 2: Turn the peds upside down so you can align the holes with the predrilled top. Attach the modesty panel to the cabinets loosely, using the supplied ¼-20 machine screws.
- Page 4 Step 3: Align the holes on the peds with the predrilled holes on the work surface and secure using wood screws. Once the peds are attached to the top, fully tighten the machine screws holding the modesty panel. Hole placement for the Box Box File Ped is on the outside of the top plate of the ped. Hole placement for the Tote ped is on the inside of the ped on the top plate.
- Page 5 Step 4: Attach the casters to the peds using the supplied screws. Place the unit upright and unit is ready for use. Form# 179951 08/2017...
