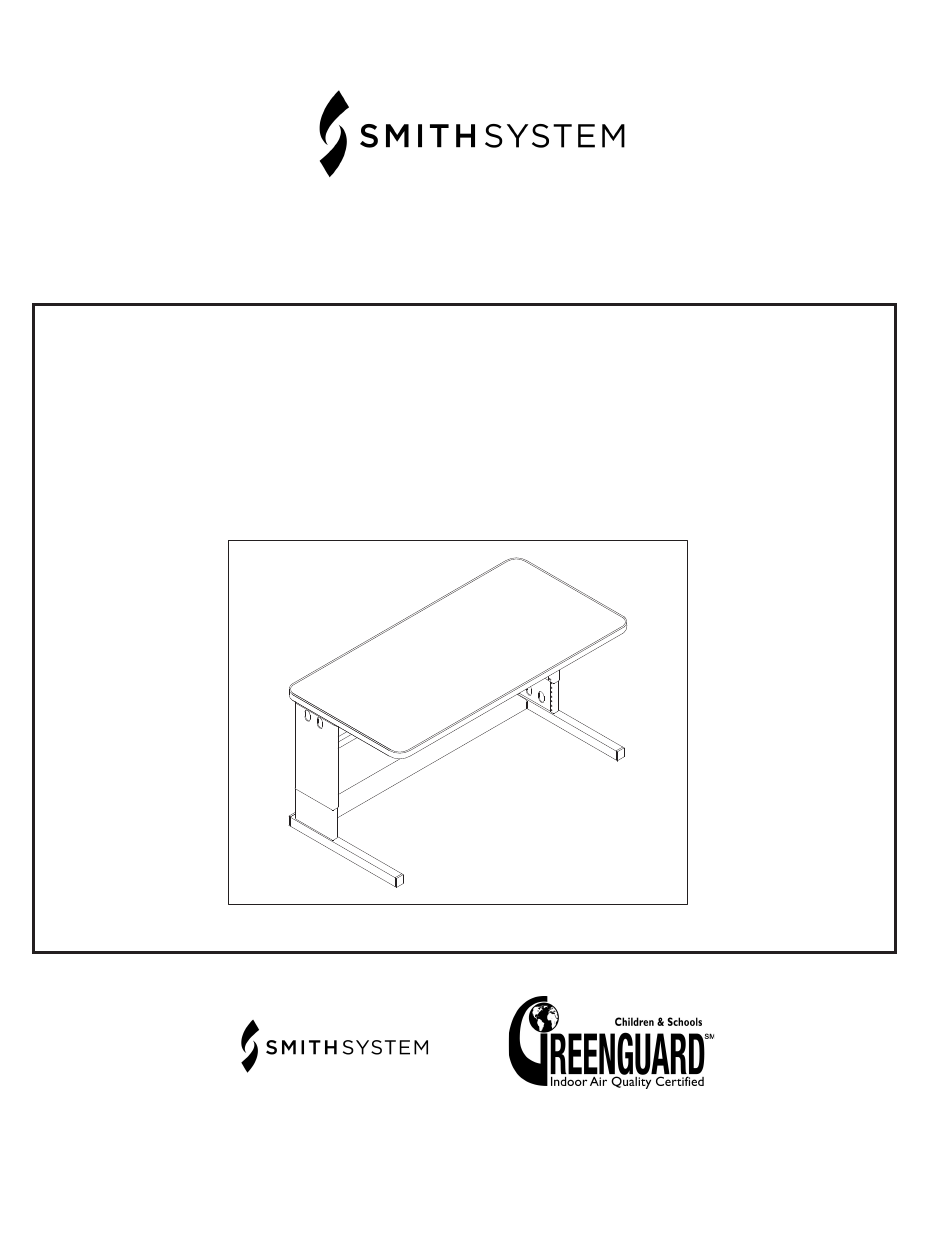

Circulation Desk
™
Assembly Instructions
for the following workstations:
Bullet
Rectangle
Peninsula
Contour
Form# 179863
For assistance in assembling product, missing or damaged
parts, or to place an order please contact customer service at 800-328-1061.
You may also place your order online at
www.smithsystem.com
2/2007
Form# 179863
page 1 of 5
Advertisement
Table of Contents
Related Manuals for SMITH SYSTEM Circulation Desk
Summary of Contents for SMITH SYSTEM Circulation Desk
- Page 1 Circulation Desk ™ Assembly Instructions for the following workstations: Bullet Rectangle Peninsula Contour Form# 179863 For assistance in assembling product, missing or damaged parts, or to place an order please contact customer service at 800-328-1061. You may also place your order online at www.smithsystem.com...
- Page 2 1. Check that all components are accounted for and undamaged before assembling. 2. Please assemble product in a clean and dry area. 3. For larger units you may need another person to help assemble the product. 4. Clean the product with a mild cleaner and a damp cloth. You will need a Phillips head screw driver.
- Page 3 Assembly Instructions for Circulation Workstation Step 1 Locate all the parts needed for assembly. Place the table top face down on a clean, dry surface. Attach the brackets to the top using the (8) wood screws and a phillips head screw driver. (See Drawing 1A). Next attach the legs to the brackets using (8) Machine Screws, (4) per leg.
- Page 4 Assembly Instructions for Acrobat Workstation Step 3 Now install (1) Tinnerman Clip per leg, in square hole located inside of the leg. (See Drawing 3A) NOTE: Tinnerman clip only used if desk is raised to high range, when set to low range threaded hole from lower leg will be used instead of tinnerman clip.
- Page 5 Assembly Directions for a Circulation Workstation Step 5 Attach the cross bar to the foot of the legs using (4) 10-32X1/2" Machine Screws. (See Drawing 5A). Drawing 5A Step 6 With help, tip the desk in the upright position. Your desk is ready for use. If you have any quesions contact customer service.
