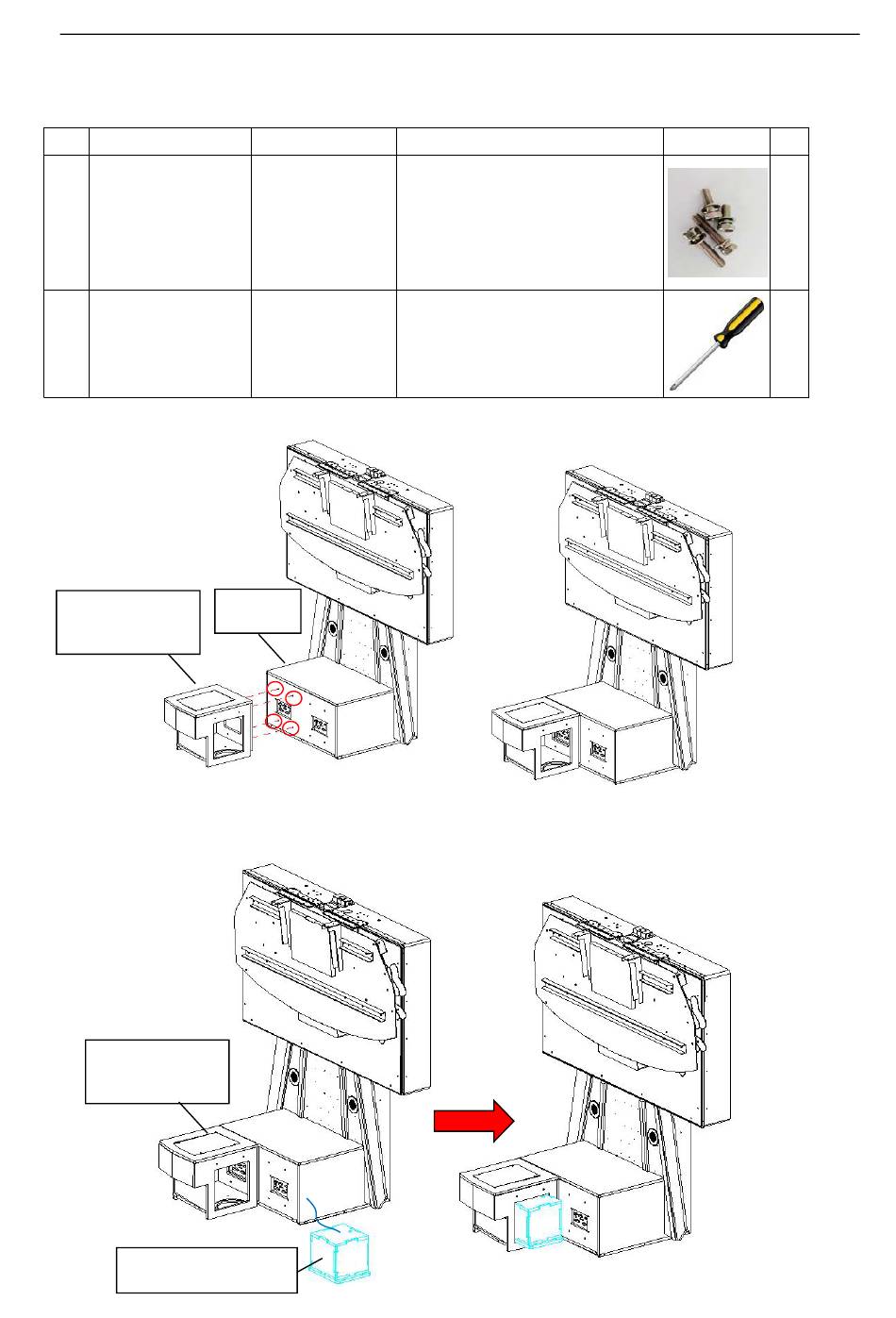

4.5 Machine Installation
4.5.1 Connective Part
Before processing with assembly assure you have the following tools.
No. Part No.
1 W119-349-000 20104023004 Cross recessed hexagon bolt
2 /
1) Utilize the Phillips screwdriver to tighten four screws to fix L Connective Box B to Box A.
L Connective
Box B
2) Put the Woofer Assembly into L Connective Box B as shown.
Route the cable to L Connective Box B. (Take caution to prevent pinching the cable of the
Woofer Assembly.)
L Connective
Box B
Woofer Assembly
Code
/
Box A
Name
Phillips screwdriver
World Soccer D&B Manual
Picture Qty
14
1
