OPERATING TOUCHSCREEN & CAMERA
6.3

Operating the Camera

6.3.1

Positioning

Safe Handling
How to Position
VectorVision² or
VectorVision
compact Camera
Steps
System User Guide Rev. 1.6 VectorVision
The components in the camera unit are precise, sensitive instruments. Dropping or
jolting the camera may cause miscalibration.
s
a
1. Grip camera handle a with your hand.
2. Press release button
3. Move the camera into the desired position so that the operating field is in the center of the
camera field of view.
4. Release the release button

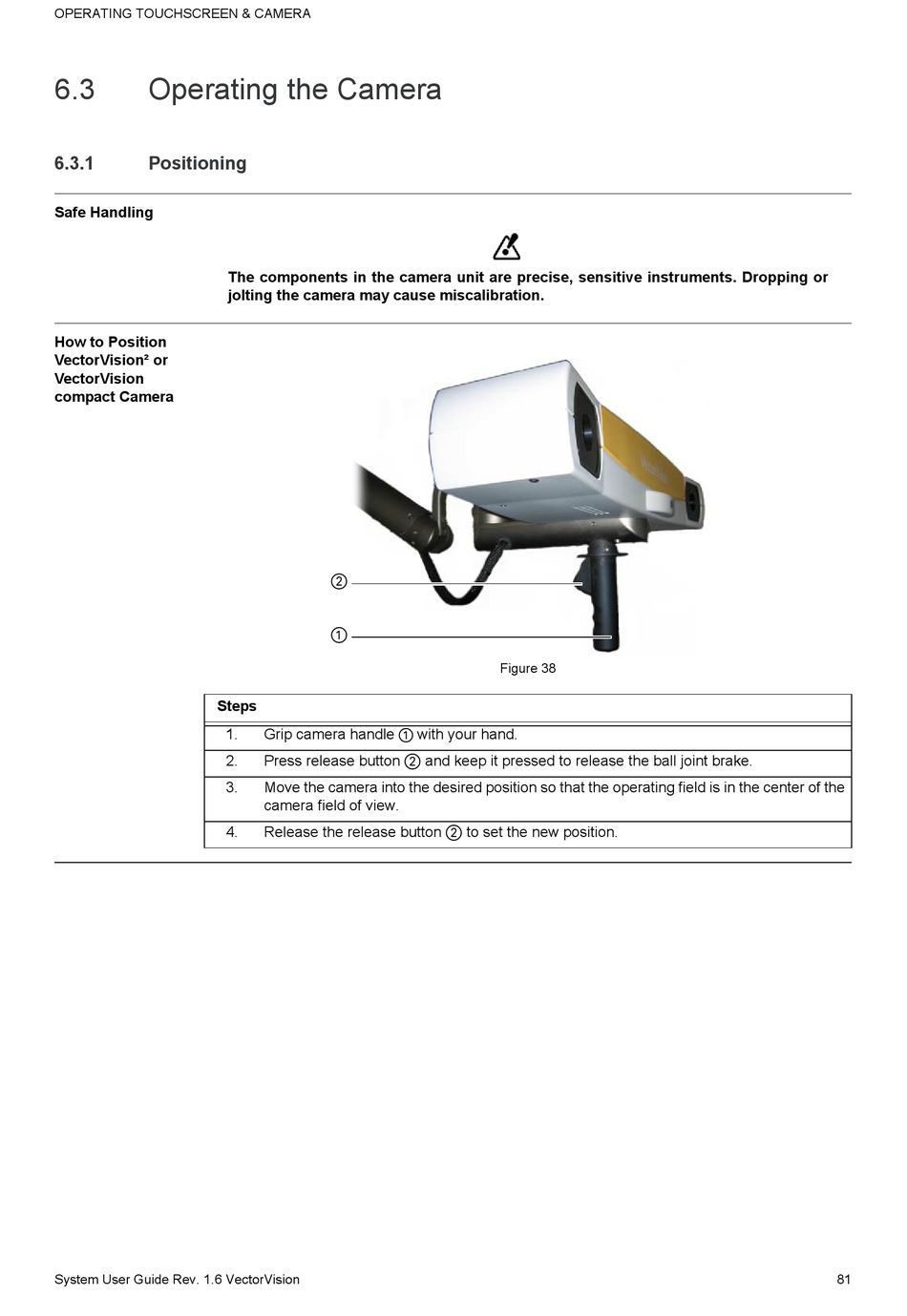

Figure 38
s and keep it pressed to release the ball joint brake.
to set the new position.
s
