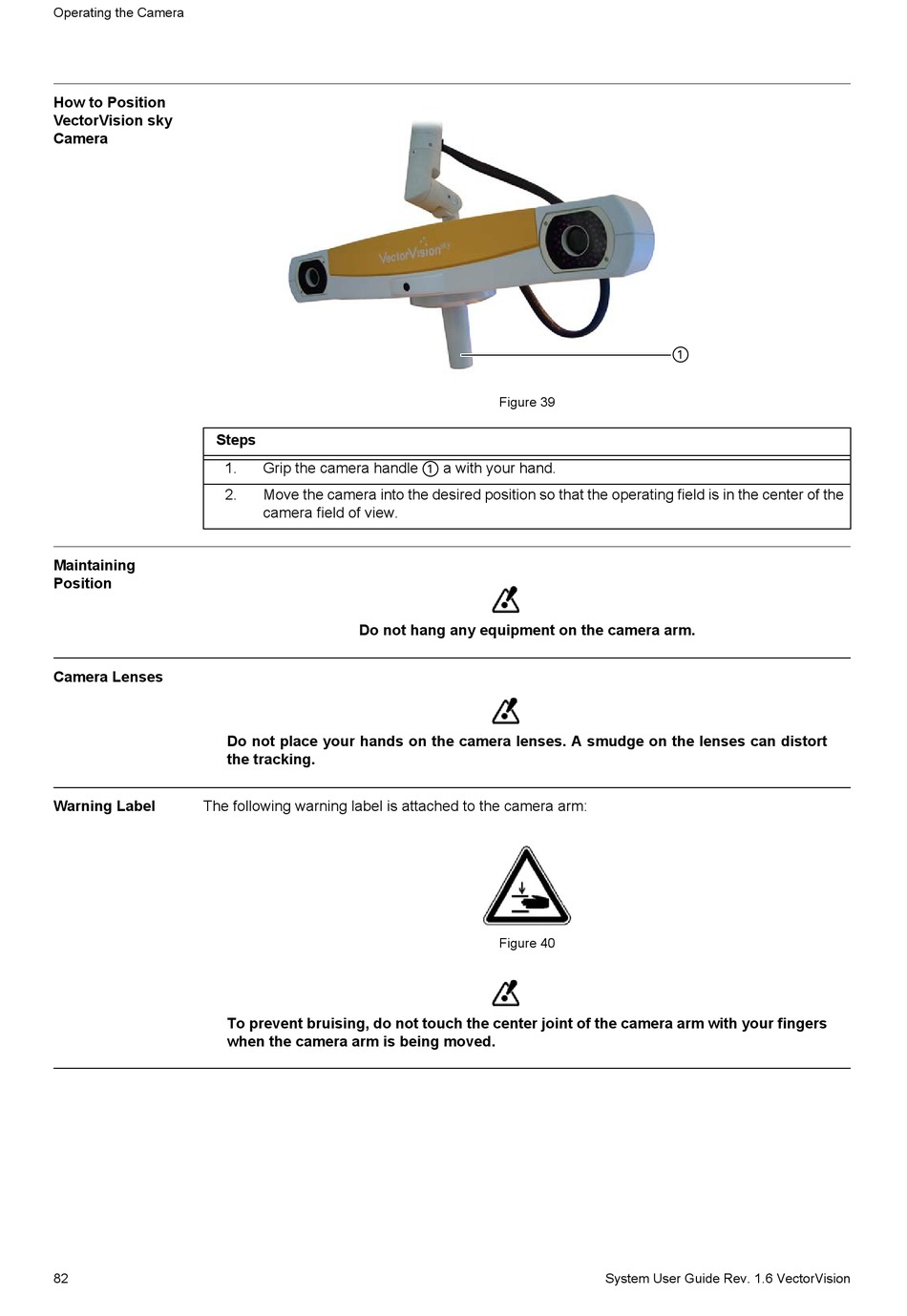

Operating the Camera
How to Position
VectorVision sky
Camera
Steps
Maintaining
Position
Camera Lenses
Warning Label The following warning label is attached to the camera arm:
82
1. Grip the camera handle
2. Move the camera into the desired position so that the operating field is in the center of the
camera field of view.
Do not hang any equipment on the camera arm.
Do not place your hands on the camera lenses. A smudge on the lenses can distort
the tracking.
To prevent bruising, do not touch the center joint of the camera arm with your fingers
when the camera arm is being moved.
Figure 39
a with your hand.
a
Figure 40
a
