VECTORVISION COMPACT NAVIGATION STATION
4.3.6

Placing Protection Covers

Purpose
Before you Begin
How to Place the
Protection Covers
Steps
System User Guide Rev. 1.6 VectorVision
To avoid damaging the system, make sure that the protection covers are placed on the
monitor and camera before moving and storing the system.
Do not cover camera or monitor with the protection cover when the system is running!
a
1. Ensure that system is in parking position.
2. Pull the monitor protection cover
3. Close the buckle at the lower back of the monitor protection cover.
4. Pull the camera protection cover
5. Fasten the camera arm at the top of the camera protection cover using the velcro fasten-
er for the camera arm
NOTE: Otherwise the camera arm may not remain in the transport position while the nav-
igation station is being moved.
s

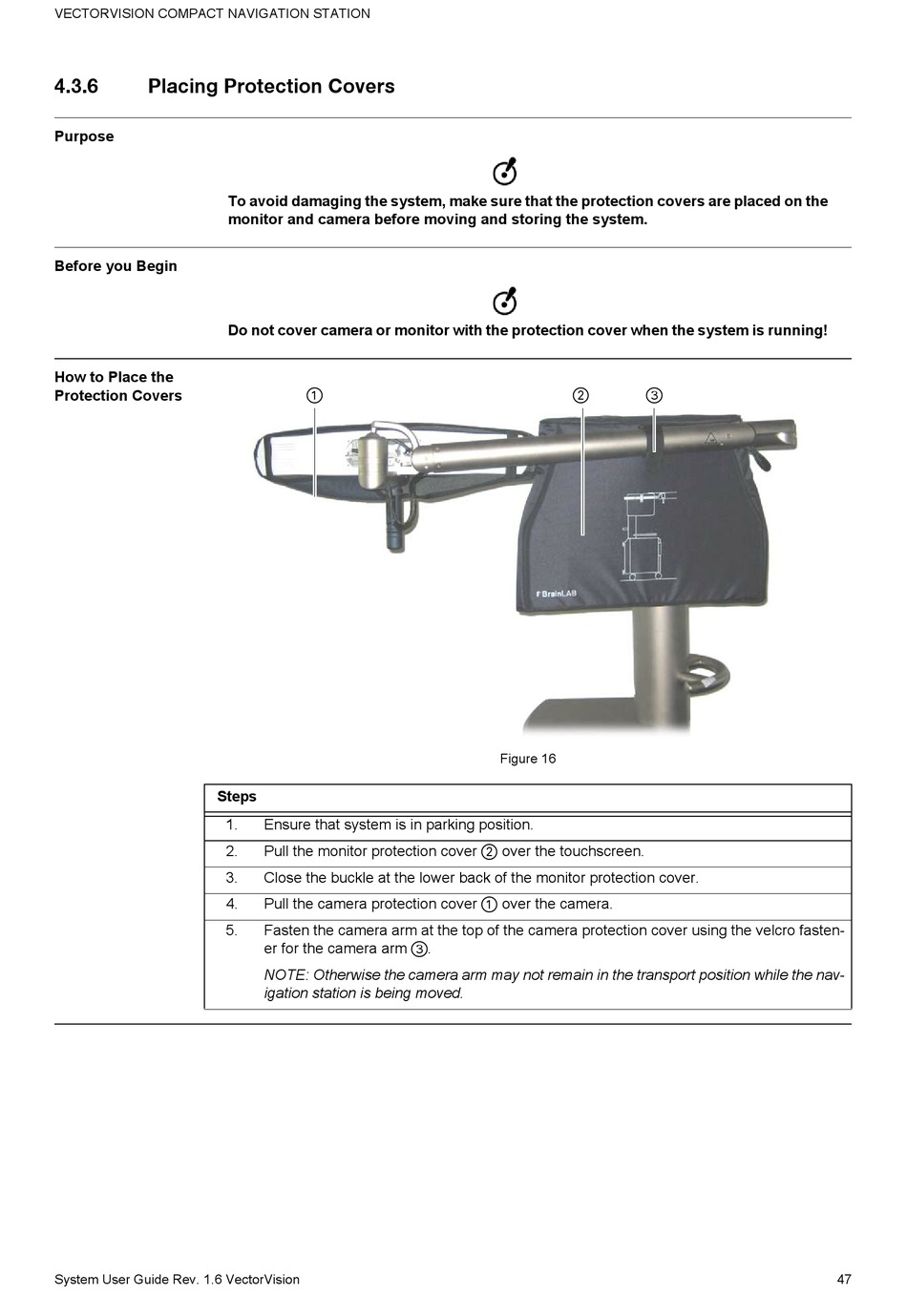

Figure 16
over the touchscreen.
s
a over the camera.
d .
d
47
