VECTORVISION SKY NAVIGATION STATION
5.3.4

Placing Protection Covers

Purpose
Before you Begin
How to Place
Steps
NOTE: The camera arm and/or the monitor arm might be pushed slightly downwards due to the
additional weight of the protection covers.
System User Guide Rev. 1.6 VectorVision
To avoid damaging the system, place the protection covers on the monitor and cam-
era before moving, transporting or storing the system.
Do not cover camera or monitor with protection cover when the system is running.
a s
1. Pull monitor protection cover
2. Close buckle s at the lower back of monitor protection cover.
3. Pull camera protection cover
d

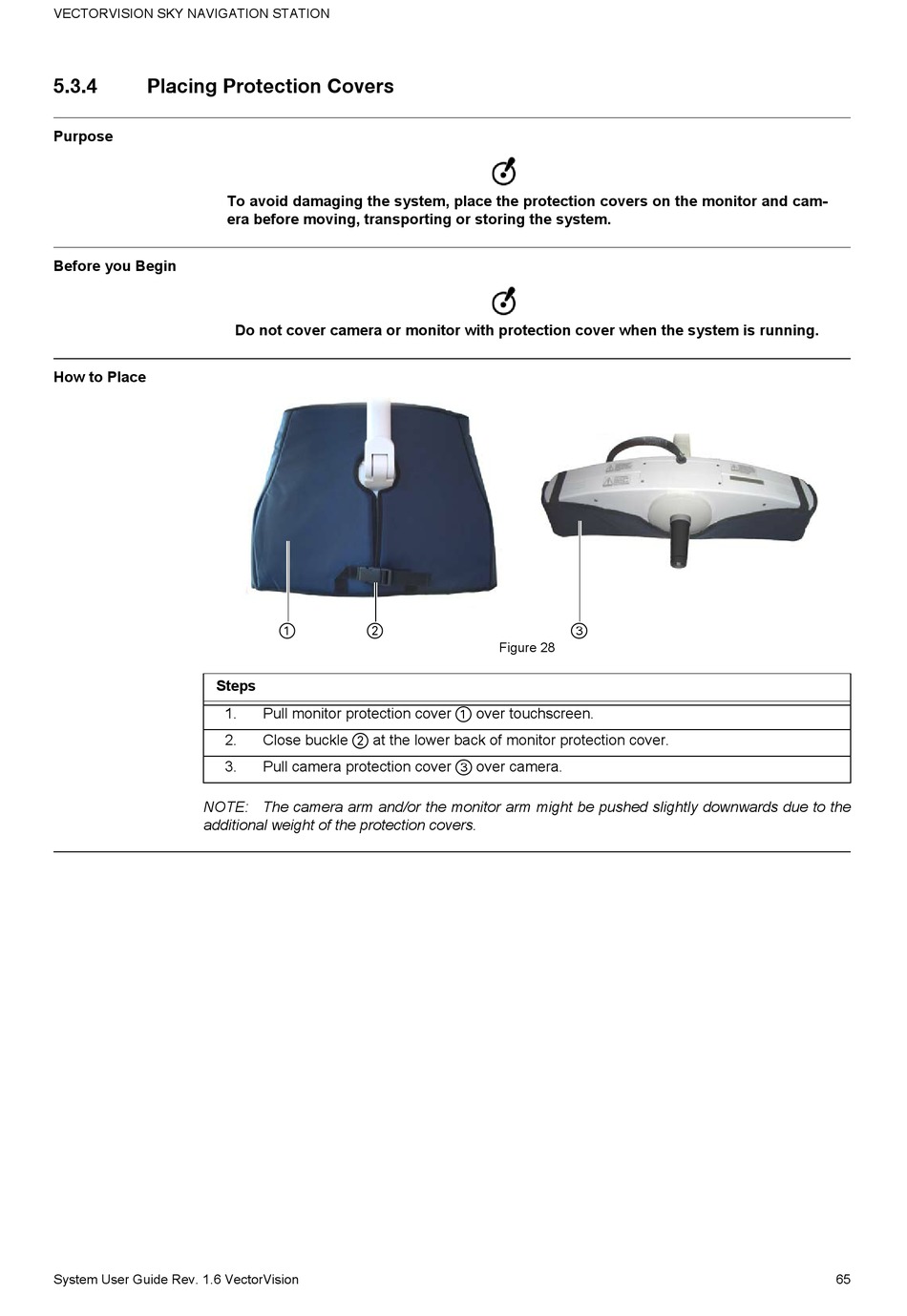

Figure 28
over touchscreen.
a
d over camera.
65
