Mounting guidelines for the DESKLINE
The motor housing is supplied with 6 pcs. M6 threaded holes meant for mounting on the desk frame. We advise you to fasten
the desk frame by means of 6 pcs. M6 screws of a good quality and a suitable length, which must not go further into the
motor housing than max.10 mm. The thrust moment must not exceed 7.5 Nm.
It is important that the correct screws are used.
Check that the screws are fitted correctly to ensure a correct function to prevent the guidance from coming apart
when the desktop is lifted.
2 pcs. self
cutting plastic
screw Type K50
Max. 10 mm
DB5/DB6
motor housing
Page 10 of 28
DB5 system
®

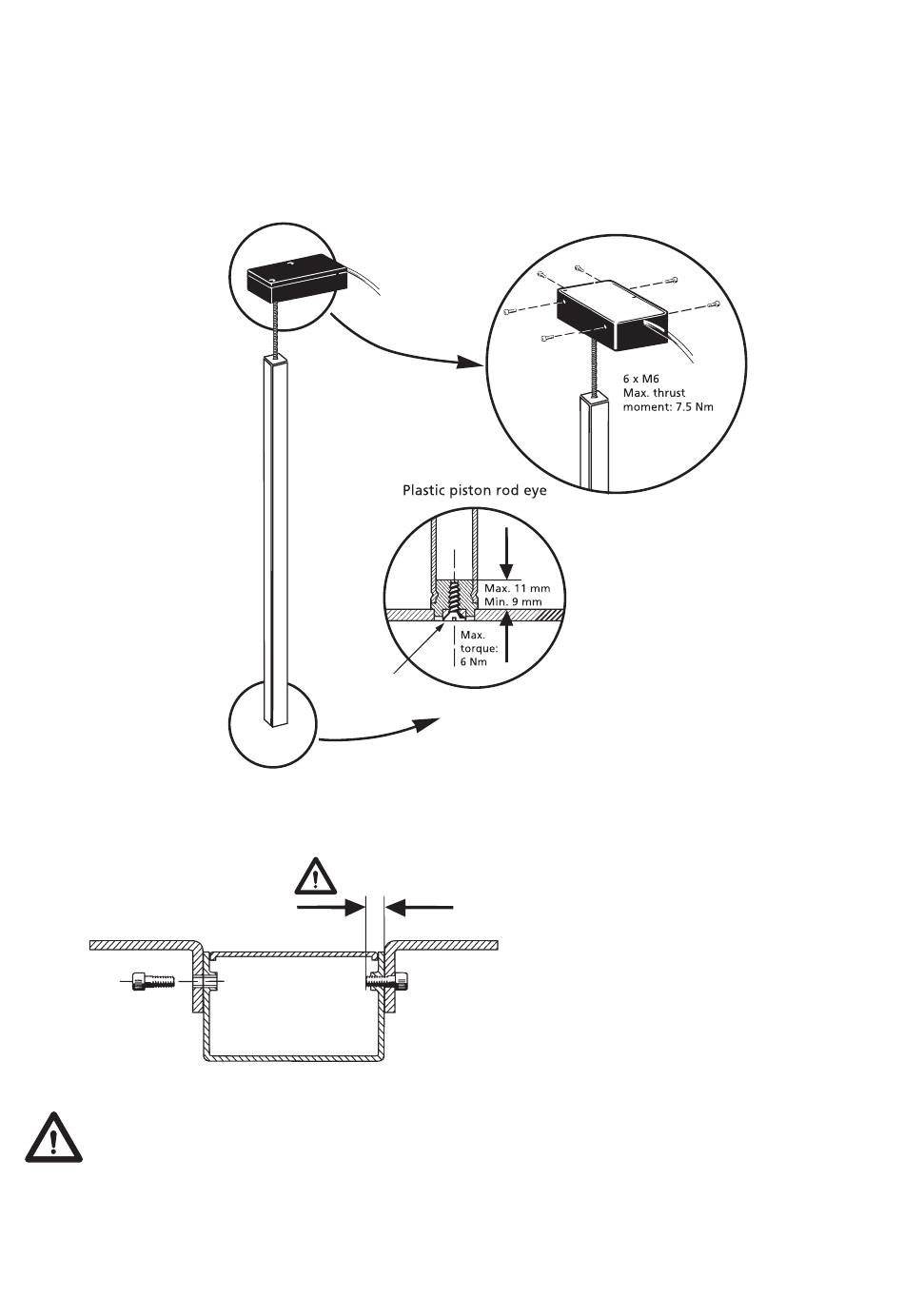

Figure 1
(Example of how to mount the DB5)
