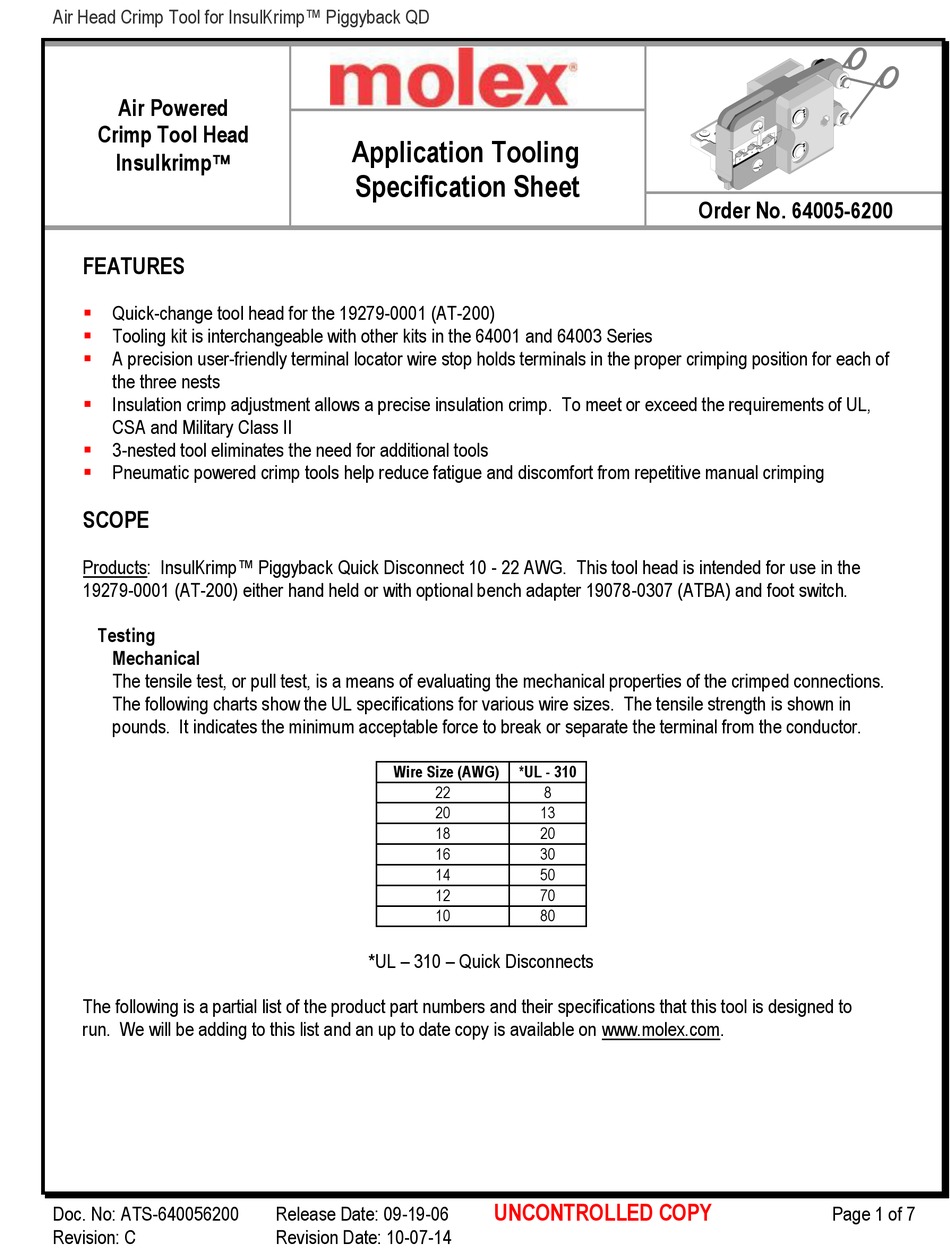

molex 64005-6200 Specification Sheet

Air Head Crimp Tool for InsulKrimp™ Piggyback QD
Air Powered
Crimp Tool Head
Insulkrimp
FEATURES
Quick-change tool head for the 19279-0001 (AT-200)

Tooling kit is interchangeable with other kits in the 64001 and 64003 Series

 A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position for each of
the three nests
Insulation crimp adjustment allows a precise insulation crimp. To meet or exceed the requirements of UL,

CSA and Military Class II
 3-nested tool eliminates the need for additional tools
Pneumatic powered crimp tools help reduce fatigue and discomfort from repetitive manual crimping

SCOPE
Products: InsulKrimp™ Piggyback Quick Disconnect 10 - 22 AWG. This tool head is intended for use in the
19279-0001 (AT-200) either hand held or with optional bench adapter 19078-0307 (ATBA) and foot switch.
Testing
Mechanical
The tensile test, or pull test, is a means of evaluating the mechanical properties of the crimped connections.
The following charts show the UL specifications for various wire sizes. The tensile strength is shown in
pounds. It indicates the minimum acceptable force to break or separate the terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool is designed to
run. We will be adding to this list and an up to date copy is available on www.molex.com.
Doc. No: ATS-640056200
Revision: C
Application Tooling
Specification Sheet
Wire Size (AWG)
22
20
18
16
14
12
10
*UL – 310 – Quick Disconnects
Release Date: 09-19-06
Revision Date: 10-07-14
*UL - 310
8
13
20
30
50
70
80
UNCONTROLLED COPY
Order No. 64005-6200
Page 1 of 7
