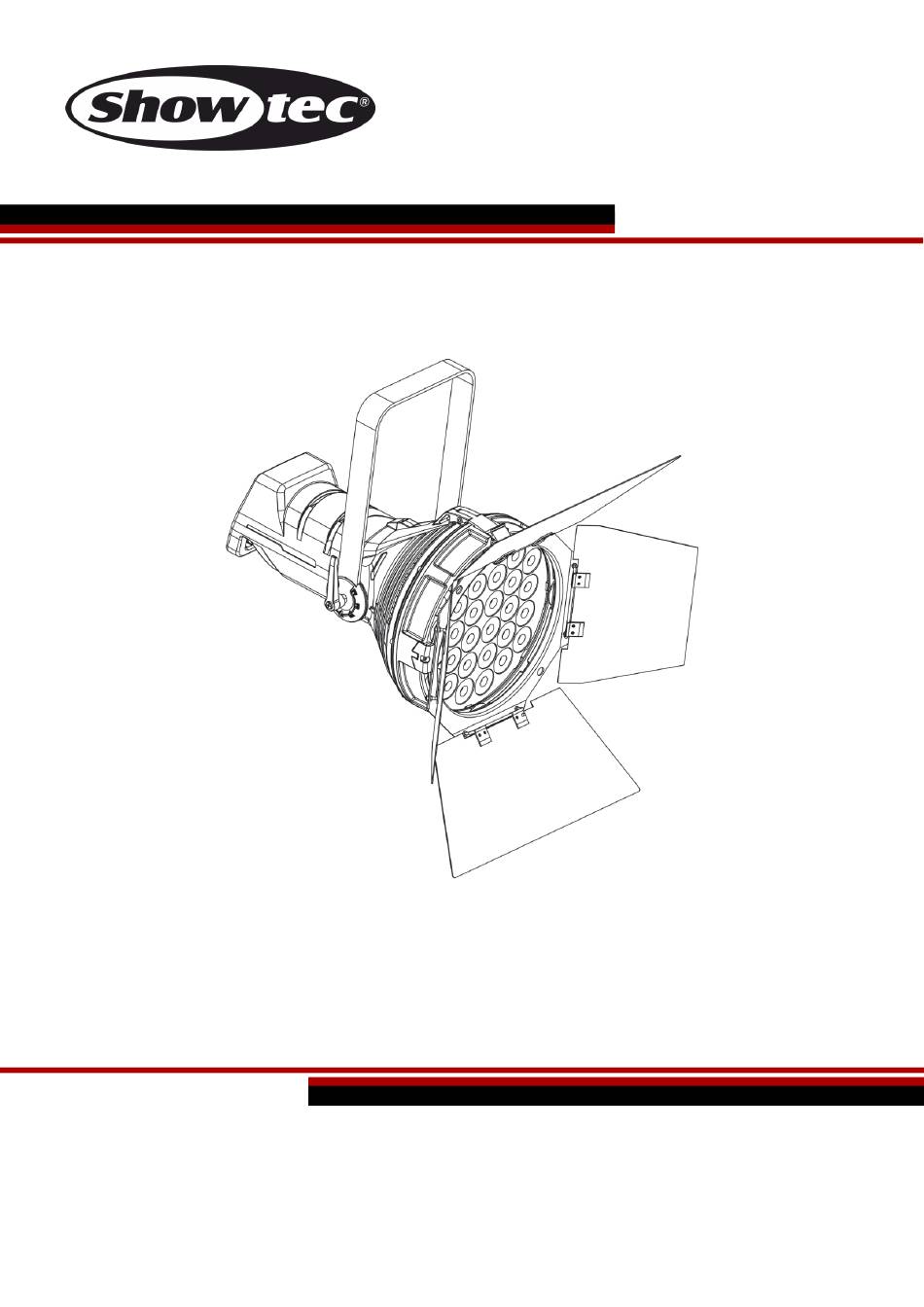

- Page 1 USER MANUAL ENGLISH Solar FL-550 Product code: 46250 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Solar FL-550 Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Solar FL-550 Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Product Lifespan ..............................4 LEDs Lifespan ............................... 4 Text Conventions ..............................4 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................5 Safety .................................. - Page 4 Solar FL-550 Preventive Maintenance ..........................26 Basic Cleaning Instructions ........................27 Corrective Maintenance ..........................27 Deinstallation, Transportation and Storage ....................28 Instructions for Deinstallation ..........................28 Instructions for Transportation ........................28 Storage ................................28 10. Disposal ................................28 11. Approval ................................28 Product code: 46250...
-
Page 5: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Showtec Solar FL-550, barndoor not included ● Schuko to Powercon power cable (1,5 m) ● User manual Fig. -
Page 6: Symbols And Signal Words
Solar FL-550 Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 7: Safety
Solar FL-550 Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... - Page 8 Solar FL-550 WARNING Risk of burns due to hot surface The surface and the inner parts of the device can become very hot during operation. ● Do not touch the device during operation. ● Allow the device to cool down for at least 15 minutes before handling.
-
Page 9: Requirements For The User
Solar FL-550 ● If the device is exposed to extreme temperature variations (e.g. after transportation), do not switch it on immediately. Let the device reach room temperature before switching it on, otherwise it may be damaged by the formed condensation. -
Page 10: Description Of The Device
Solar FL-550 Description of the Device The Solar FL-550 is a LED fixture with an impressive light output in a compact but sturdy housing. Front View 01) Mounting bracket 02) Adjustment screw 03) 14x 20W White CREE LED 04) Barndoor not included Fig. -
Page 11: Product Specifications
Solar FL-550 Product Specifications Model: Solar FL-550 Electrical: Input voltage: 100–240 V AC, 50/60 Hz Power consumption: 550 W Physical: Dimensions: 562 x 331 x 320 mm (L x W x H) Weight: 11,8 kg Optics: Light source: 24x 20W White CREE LED... -
Page 12: Dimensions
Solar FL-550 Dimensions Fig. 04 Fig. 05 Product code: 46250... -
Page 13: Installation
Solar FL-550 Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. -
Page 14: Angle Adjustment
Solar FL-550 Fig. 06 Angle Adjustment You can adjust the angle of the device with the 2 adjustment screws (03). 01) Turn the adjustment screws (03) counterclockwise to release them. 02) Tilt the device at the desired angle (see Fig. 07). -
Page 15: Connecting To Power Supply
● Do not link more devices on one power link than the maximum recommended number. Maximum recommended number of devices: ● at 100–120 V: 3 devices Solar FL-550 ● at 200–240 V: 6 devices Solar FL-550 Product code: 46250... -
Page 16: Setup
Disconnect power supply before connecting or disconnecting data cables. Stand-alone Setup When the Solar FL-550 is not connected to a controller or to other devices, it functions as a stand-alone device. It can be operated manually, in auto mode or in sound-controlled mode. -
Page 17: Dmx Cables
Solar FL-550 DMX Cables Shielded twisted-pair cables with 5-pin XLR connectors must be used for reliable DMX connection. You can purchase DMX cables directly from your Highlite International dealer or make your own cables. If you use XLR audio cables for DMX data transmission, this may lead to signal degradation and unreliable operation of the DMX network. -
Page 18: Dmx Linking
04) Continue assigning the starting addresses of the remaining devices by adding each time 10 to the previous number. Make sure that you do not have any overlapping channels in order to control each Solar FL-550 correctly. If two or more devices are addressed similarly, they will work similarly. -
Page 19: Operation
Control Modes The Solar FL-550 can be operated with a DMX controller, or without a DMX controller as a stand-alone device. The Solar FL-550 supports the following control modes: ●... -
Page 20: Control Panel
Solar FL-550 Control Panel A) LCD display CONFIRM button C) Enter button (PRESS) + Up/down (TURN) D) MENU button Fig. 12 ● Use the MENU button to exit the current submenu, to return to the main menu and to return to the start screen. -
Page 21: Menu Overview
Solar FL-550 Menu Overview Product code: 46250... -
Page 22: Main Menu Options
Solar FL-550 Main Menu Options The main menu has the following options: DMX address DMX channel mode Manual control Settings Info Press the UP/DOWN buttons to navigate through the main menu. 02) Press the ENTER button to open the submenus. -
Page 23: Menu Settings
Solar FL-550 Menu Settings With this menu you can change the device’s settings. 01) While in the main menu, press the UP/DOWN buttons to choose SETTING. 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to choose one of the 4 submenus:... -
Page 24: Factory Reset
Solar FL-550 Factory Reset In this menu you can restore the default factory settings. 01) Press the ENTER button to open menu Factory. 02) Press the UP/DOWN buttons to select Yes or No. 03) If you choose Yes and confirm it with the ENTER button, the device will be reset to its factory default settings. -
Page 25: Info
Solar FL-550 Info With this menu you can view information about your device 01) While in the main menu, press the UP/DOWN buttons to choose INFO. 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to choose one of the 3 submenus:... -
Page 26: Troubleshooting
Solar FL-550 Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 27: Maintenance
Solar FL-550 Maintenance Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. WARNING Risk of burns due to hot surface Allow the device to cool down for at least 15 minutes before servicing or cleaning. -
Page 28: Basic Cleaning Instructions
Solar FL-550 Basic Cleaning Instructions The external lens of the device must be cleaned periodically in order to optimize the light output. The cleaning schedule depends on the conditions at the site where the device is installed. When smoke or fog machines are used at the site, the device will need more frequent cleaning. -
Page 29: Deinstallation, Transportation And Storage
Solar FL-550 Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Let the device cool down before dismounting. ● Disconnect power supply before deinstallation. ● Always observe the national and site-specific regulations during deinstallation and derigging of the device. - Page 30 Solar FL-550 Product code: 46250...
- Page 31 Solar FL-550 Product code: 46250...
- Page 32 ©2020 Showtec...
