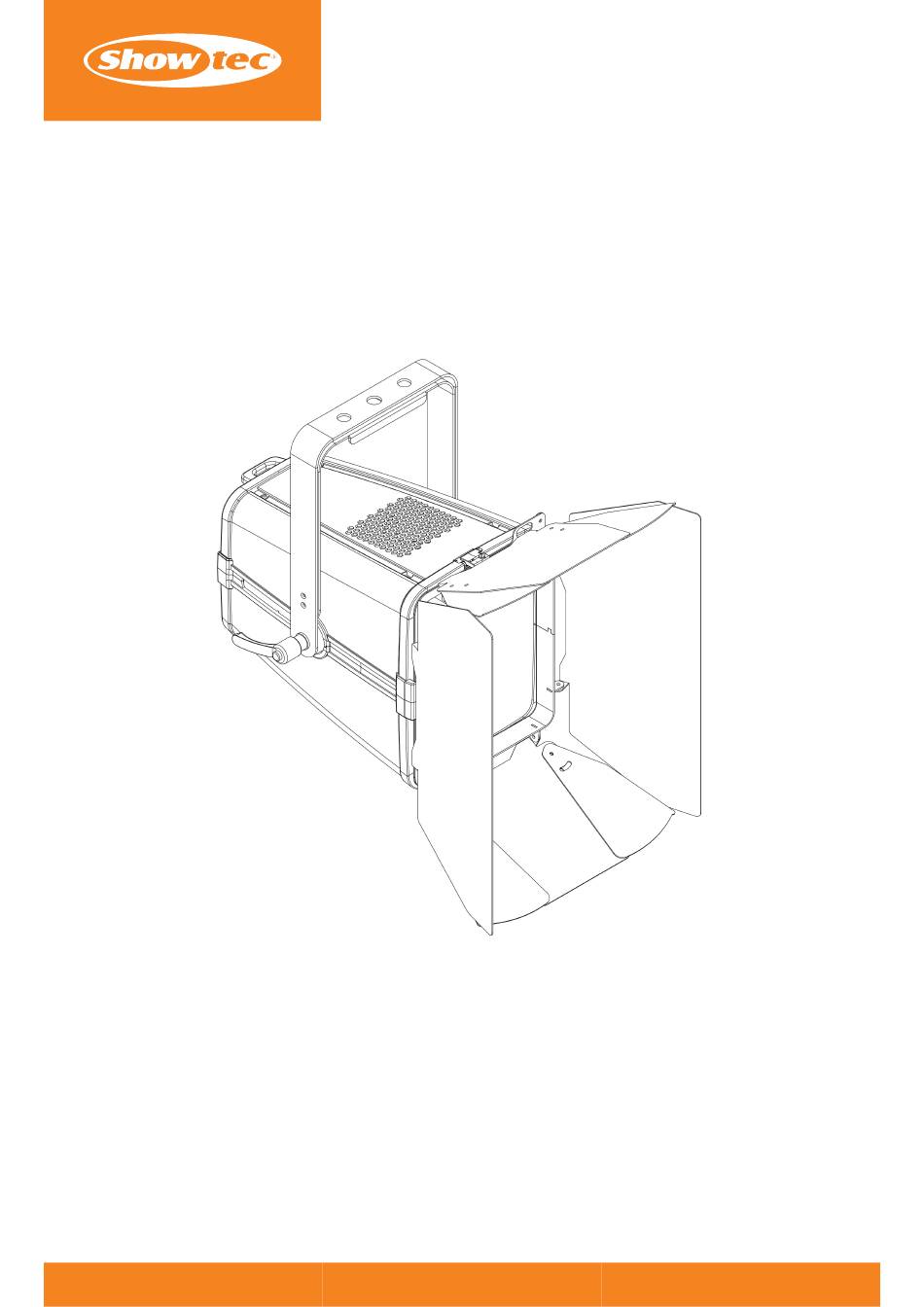

- Page 1 USER MANUAL ENGLISH V1.0 ACT Flood 200 RGBAL Product code: 34042...
- Page 2 ACT Flood 200 RGBAL Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
....................... . Product code: 34042... - Page 4 ............................Product code: 34042...
-
Page 5: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: Figure 1 • • Showtec ACT Flood 200 RGBAL • • Barndoor • • Schuko to Power Pro cable (1,5 m) •... -
Page 6: Symbols And Signal Words
This product is provided with an information label. The information label is located on the mounting bracket of the device. The information label contains the following symbols: This device is designed for indoor use. This device shall not be treated as household waste. Product code: 34042... -
Page 7: Safety
Do not immerse the device in water or other liquids. Do not install the device in a location where flooding may occur. • • Do not use the device during thunderstorms. Disconnect the device from the electrical power supply immediately. Product code: 34042... - Page 8 The safety devices are not damaged. • • There are no deformations on housings, fixings and installation points. • • The lens is not cracked or damaged. • • The power cables are not damaged and do not show any material fatigue. Product code: 34042...
-
Page 9: Requirements For The User
2.3. Personal Protective Equipment During installation, deinstallation and rigging wear personal protective equipment in compliance with the national and site-specific regulations. Product code: 34042... -
Page 10: Description Of The Device
Description of the Device The Showtec ACT Flood 200 RGBAL is a 200 W RGBAL LED flood light. It projects a bright, soft field of colored light and has a fixed beam angle of 90° x 105°. The color temperature can be adjusted between 2800 K and 10000 K. -
Page 11: Barndoor
ACT Flood 200 RGBAL 3.3. Barndoor Figure 4 Safety eye (barndoor) Product code: 34042... -
Page 12: Product Specifications
Power Pro Gray DMX connector IN XLR 3P DMX connector OUT XLR 3P Mechanical Specifications: Length 280 mm Width 258 mm Height 304 mm Weight 4,3 kg IP Rating IP20 (indoor use only) Housing Aluminum Color Black Product Properties: Cooling Convection Product code: 34042... -
Page 13: Dimensions
ACT Flood 200 RGBAL Rigging: Mounting options Bracket / Floor Thermal Specifications: Maximum Ambient Temperature 45 °C Included Items: Included cables Power Pro Cable Included accessories Barndoor 3.5. Dimensions Figure 5 Product code: 34042... -
Page 14: Installation
(06). 03) If the barndoor is installed, secure the barndoor to the overhead structure with an appropriate secondary attachment, for example a safety cable. Put the safety cable through the safety eye (15) of the barndoor. Product code: 34042... -
Page 15: Angle Adjustment
01) Turn the adjustment handle (05) counterclockwise to loosen it. 02) Tilt the device to the desired angle. 03) Turn the adjustment handle (05) clockwise to tighten it. Make sure that the device cannot move freely after the adjustment handle (05) is tightened. Figure 7 Product code: 34042... -
Page 16: Barndoor Installation
04) Secure the barndoor to the overhead structure with an appropriate secondary attachment, for example a safety cable. Put the safety cable through the safety eye (barndoor) (15). Note: Make sure that the barndoor is locked in position with the barndoor clip before using the device. Figure 8 Product code: 34042... -
Page 17: Connecting To Power Supply
Do not link more devices on one power link than the maximum recommended number. Maximum recommended number of devices: • • at 100–120 V: 5 devices ACT Flood 200 RGBAL • • at 200–240 V: 10 devices ACT Flood 200 RGBAL Product code: 34042... -
Page 18: Setup
If you use XLR audio cables for DMX data transmission, this may lead to signal degradation and unreliable operation of the DMX network. When you make your own DMX cables, make sure that you connect the pins and wires correctly as shown in the figure below. Product code: 34042... -
Page 19: Dmx Linking
3-pin DMX cable. 03) Repeat step 2 to connect all devices in a daisy-chain. 04) Connect a DMX terminator (120 Ω resistor) to the DMX OUT connector of the last device on the data link. Figure 10 Product code: 34042... -
Page 20: Dmx Addressing
04) Continue assigning the starting addresses of the remaining devices by adding each time 12 to the previous number. Make sure that you do not have any overlapping channels in order to control each ACT Flood 200 RGBAL correctly. If two or more devices are addressed similarly, they will work similarly. Product code: 34042... -
Page 21: Operation
24). 03) Select the DMX channel mode in the DMX Mode submenu (see 6.6.1.2. Mode on page 23). See DMX Channels (see 6.7. DMX Channels on page 28) for a complete overview of all DMX channels. Product code: 34042... -
Page 22: Control Panel
If no button is pressed, after 30 seconds of inactivity the display will turn off. Press any button to turn the display on. Refer to the Display Settings (see 6.6.5. Display Settings on page 26) for more information. Product code: 34042... -
Page 23: Menu Overview
6.6.6. Fixture Test on page 27) Manual Defined Amber 000–255 Lime 000–255 Dimmer 000–255 Strobe 000–015 Fixture Information (see 6.6.7. Fixture Hours Information on page 27) Version Special Functions (see 6.6.8. Special Functions Factory Reset on page 27) Product code: 34042... -
Page 24: Main Menu Options
• RAW (5 channels) • • Basic (8 channels) • • Advanced (12 channels) 02) Press the ENTER button to confirm the selection. For more information, refer to DMX Channels (see 6.7. DMX Channels on page 28). Product code: 34042... -
Page 25: Dmx Fail
Select the built-in chase. See Show Chase (see 6.6.2.2. Show Chase) for more information. • • Show Speed: Select the speed. See Show Speed (see 6.6.2.3. Show Speed) for more information. 02) Press the ENTER button to confirm. Product code: 34042... -
Page 26: Function Mode
02) Press the UP/DOWN buttons to select one of the 65 options. 03) Press the ENTER button to confirm. Note: To view all available options, see the Static Colors in DMX Channels (see 6.7. DMX Channels on page 28). Product code: 34042... -
Page 27: Fixture Settings
02) Press the ENTER button to confirm the selection and open the pop-up submenu where you can adjust the settings. 03) Press the UP/DOWN buttons to select the desired setting. 04) Press the ENTER button to confirm the selection. Product code: 34042... -
Page 28: Fixture Test
02) Press the UP/DOWN buttons to choose between No and Yes. If you choose Yes, the settings of the device will be reset to the default factory settings. 03) Press the ENTER button to confirm your choice. Product code: 34042... -
Page 29: Dmx Channels
145–148 Color 37 Pale Yellow 149–152 Color 38 Summer Blue 153–156 Color 39 Steel Green 157–160 Color 40 Half Shanklin Frost 161–164 Color 41 Regal Blue 165–168 Color 42 Special Pale Lavender Product code: 34042... - Page 30 064–095 Linear strobe, from low to high frequency 096–127 Open Strobe 128–159 Pulse strobe, from low to high frequency 160–191 Open 192–223 Random strobe, from low to high frequency 224–255 Open 000–002 No Function Built-in programs 003–127 Color 1– 32 Product code: 34042...
- Page 31 Make sure that the Strobe channel and the Master Dimmer channel are open in 8-CH and 12-CH mode in order to see the light output. • • If you play the built-in programs in 12-CH mode, the strobe (CH 10), the master dimmer (CH 8), and the master dimmer fine (CH 9) are not functional. Product code: 34042...
-
Page 32: Troubleshooting
The input power parameters of local current, voltage and frequency intermittently the device do not match the match the input voltage, current and local AC voltage and frequency specified on the information frequency label on the device Product code: 34042... -
Page 33: Maintenance
Do not immerse the device in liquid. • • Do not use alcohol or solvents. • • Make sure that the connections are fully dry before connecting the device to the power supply and to other devices. Product code: 34042... -
Page 34: Corrective Maintenance
Always observe the handling instructions printed on the outer carton box, for example: "Handle with care", "This side up", "Fragile". 9.3. Storage • • Clean the device before storing (see 8.2.1. Basic Cleaning Instructions on page 32). • • Store the device in the original packaging, if possible Product code: 34042... -
Page 35: Disposal
For more detailed information about recycling of this product contact the local authorities or the authorized dealer. Approval Check the respective product page on the website of Highlite International (www.highlite.com) for an available declaration of conformity. Product code: 34042... - Page 36 Showtec is a brand of Highlite International B.V.
