Connecting the power cord

Connecting an AC power cord to the switch

NOTE:
The power cords may vary with different standards of different countries, so you may need
to select a bail latch as needed.
To connect the AC power cord:
Verify that the chassis ground is correctly connected to the earth ground.
1.
Install the bail latch onto the switch and pivot the bail latch up.
2.
Plug one end of the power cord to the AC power receptacle on the rear panel of the chassis and
3.
plug the other end to the AC power source.
Place the bail latch over the AC power cord to secure the plug in place.
4.

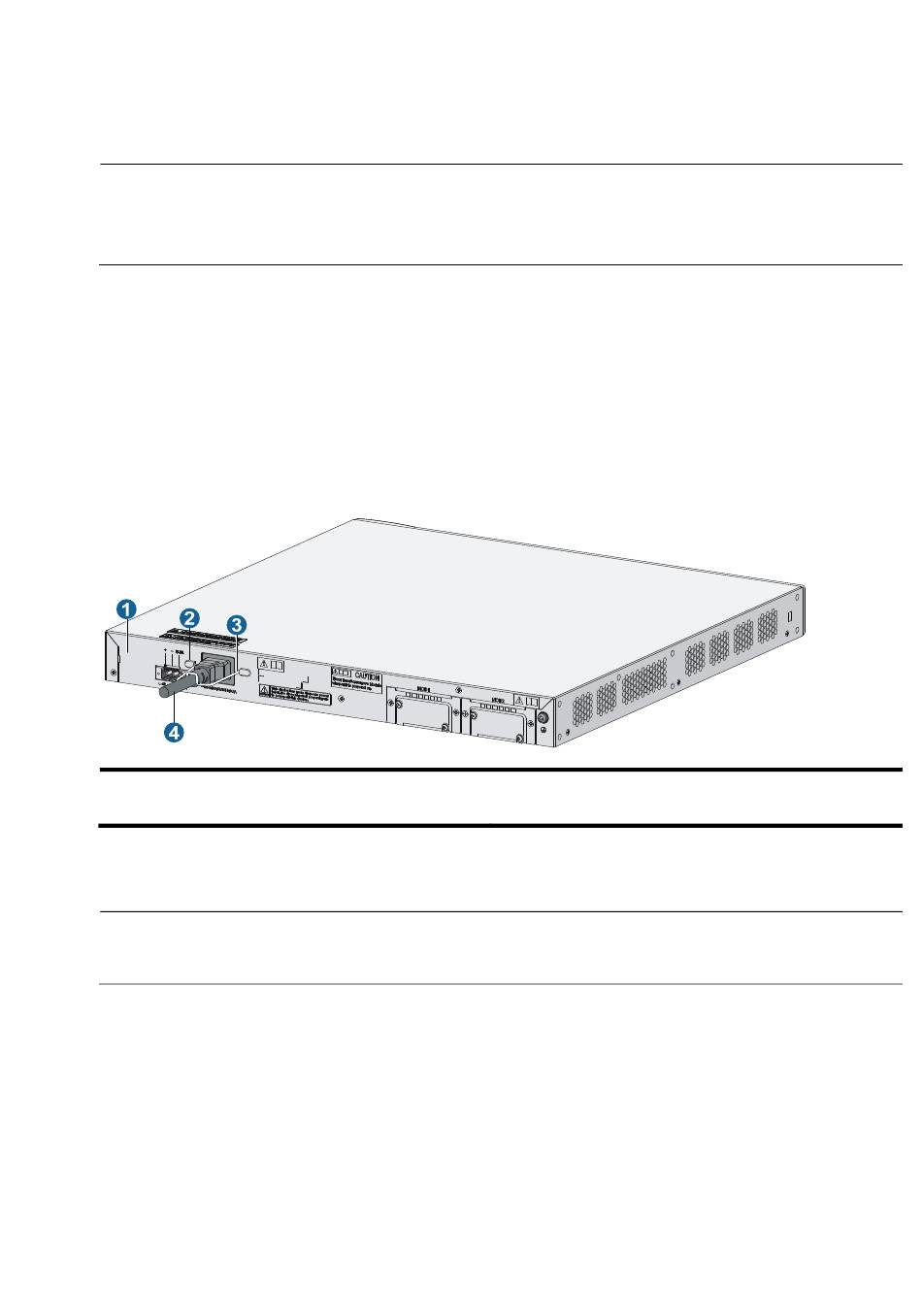

Figure 20 Connect the AC power cord
(1) Rear panel
(3) Bail latch
Check the system LED (PWR) on the front panel of the switch. If the LED is on, the AC power input
5.
is normal.
NOTE:
The bail latch prevents the power cord from accidentally falling off.

Connecting the switch to an RPS

The RPS power supply is optional. The WX3024E supports RPS power supply model RPS 1600.
To connect the switch to an RPS:
Check that the switch is powered off and the RPS is switched off.
1.
Use a Philips screwdriver to remove the screws on the cover on the DC power receptacle and take
2.
off the cover.
Connect the RPS power cord to the DC power receptacle on the chassis.
3.
(2) Bail latch holder
(4) AC power cord
17
