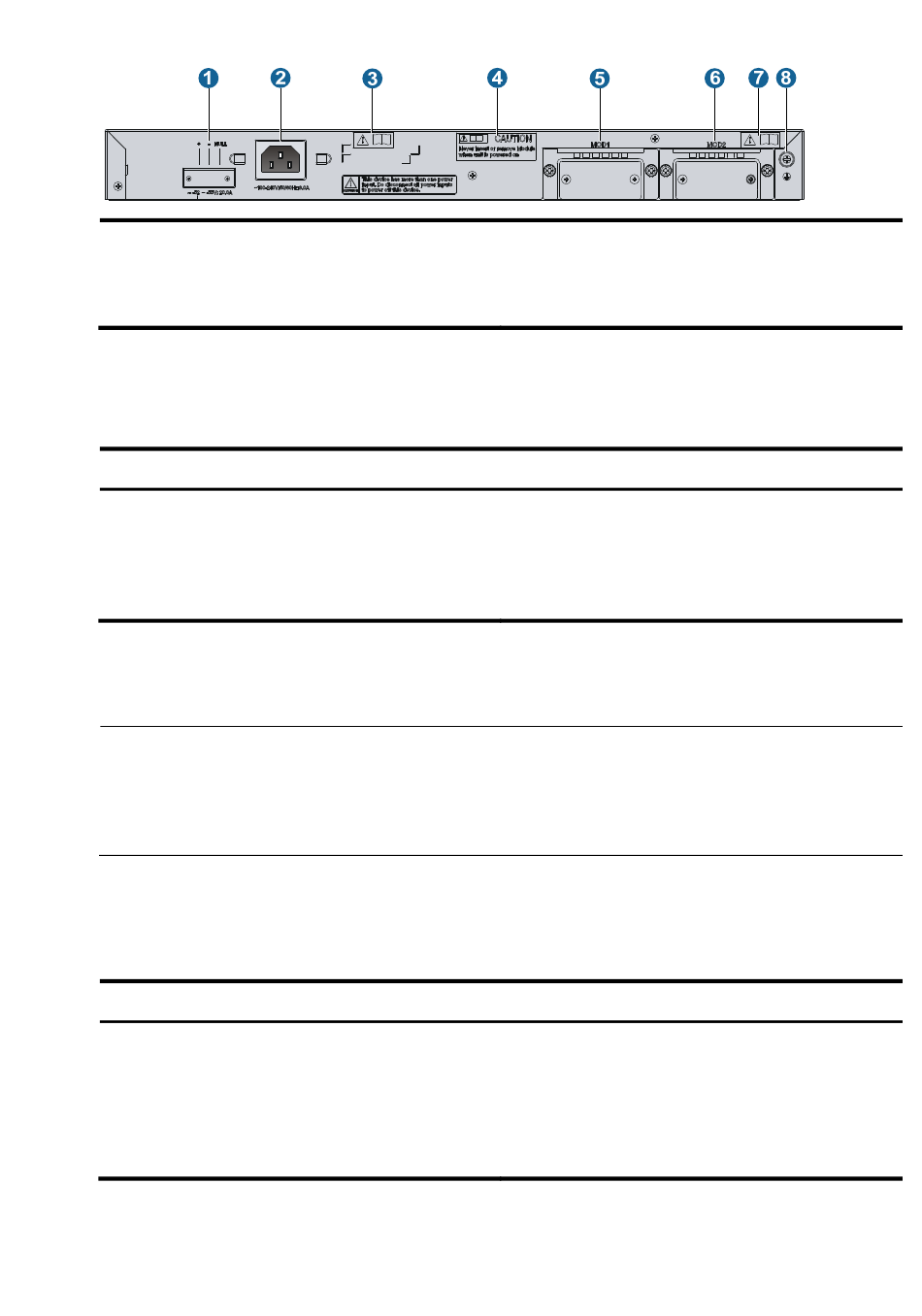

Figure 2 Rear panel of the WX3024E
(1) DC power receptacle
(3) OPEN BOOK mark
(5) 10 GE port slot 1
(7) OPEN BOOK mark
Refer to relevant sections before performing the corresponding operations for the OPEN BOOK and
CAUTION marks.
Table 1 Meanings of the OPEN BOOK mark
Operation
Connect the power cord
Ground the switch
Install optional interface cards

Power supply

NOTE:
The WX3024E supports several power input modes: AC input only, DC input only, and
concurrent AC and DC inputs. When AC and DC inputs are used concurrently, they serve as
backup for each other.

AC power supply

Table 2 AC power supply specifications
Item
Rated voltage range
Maximum voltage range
Maximum system power consumption (without
external PoE devices)
Minimum power consumption
(2) AC power receptacle
(4) CAUTION mark
(6) 10 GE port slot 2
(8) Grounding screw
Related section
Power supply
Connecting the power cord
Grounding the switch
Installing/removing an interface card
Description
100 to 240 VAC, 50/60 Hz
90 to 264 VAC, 47 to 63 Hz
90 W
53 W
