H3C WX3024E Installation Manual page 16

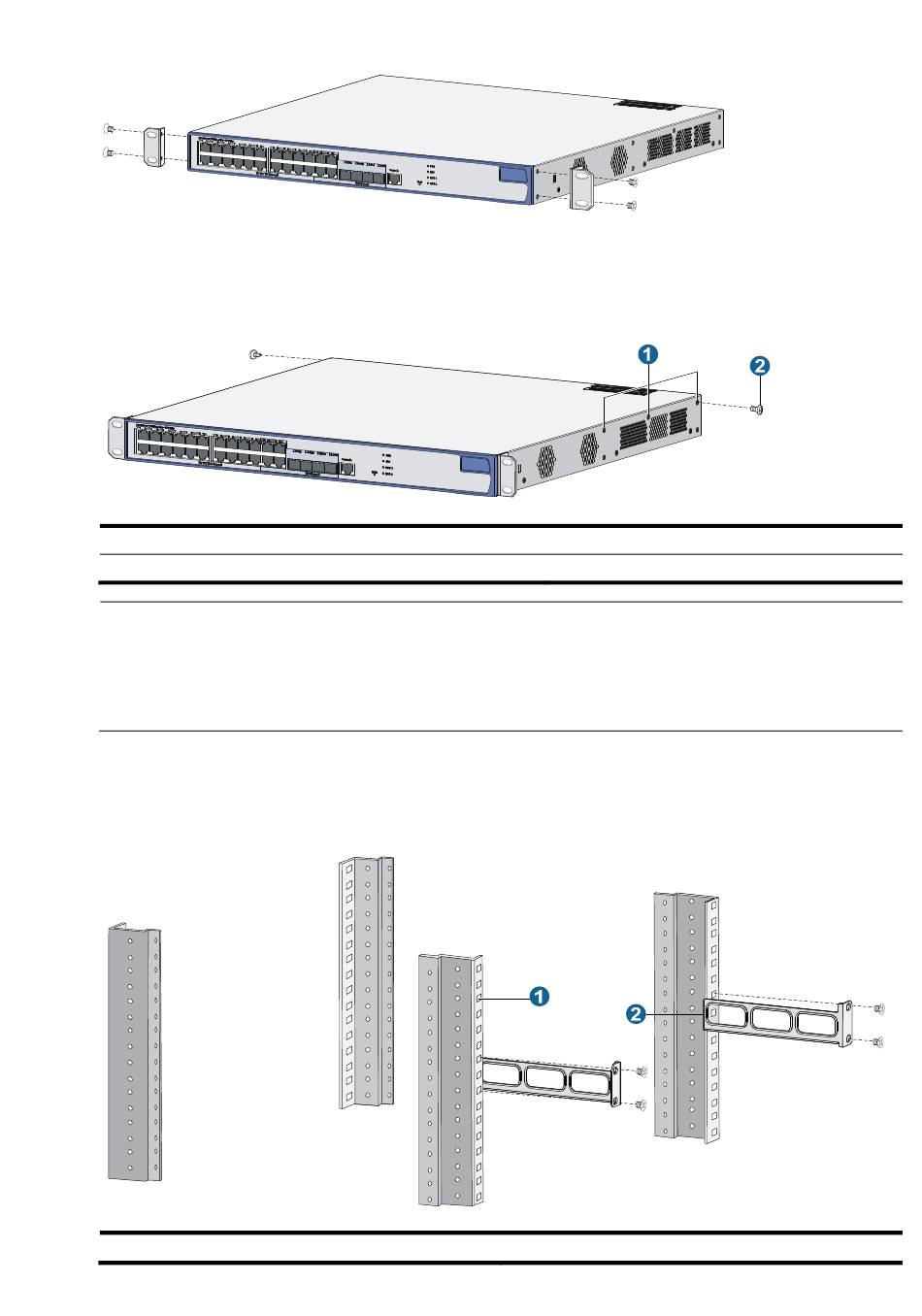

Figure 7 Attach the front mounting brackets to both sides of the switch
Fix the weight-bearing screws packed with the rear mounting brackets on both sides of the switch.
3.
See Figure 8.
Figure 8 Install the weight-bearing screws
(1) Three holes for mounting the weight-bearing screw (select one as needed)
(2) Weight-bearing screw
NOTE:
There are three screw holes on each side of the switch for the weight-bearing screws. You
can select a proper location as needed. The rear mounting brackets will support the weight
of the switch through firm contact with the weight-bearing screws.
Determine the switch installation position in the rack and use screws and cage nuts to fix the rear
4.
mounting brackets on the rear square-holed brackets of the rack. See
Figure 9 Install rear mounting brackets
(1) Rear square-holed brackets (2) Rear mounting bracket
10
Figure 9.
