H3C WX3024E Installation Manual page 30

Select the serial port to be used from the Connect using list, and click OK.
3.

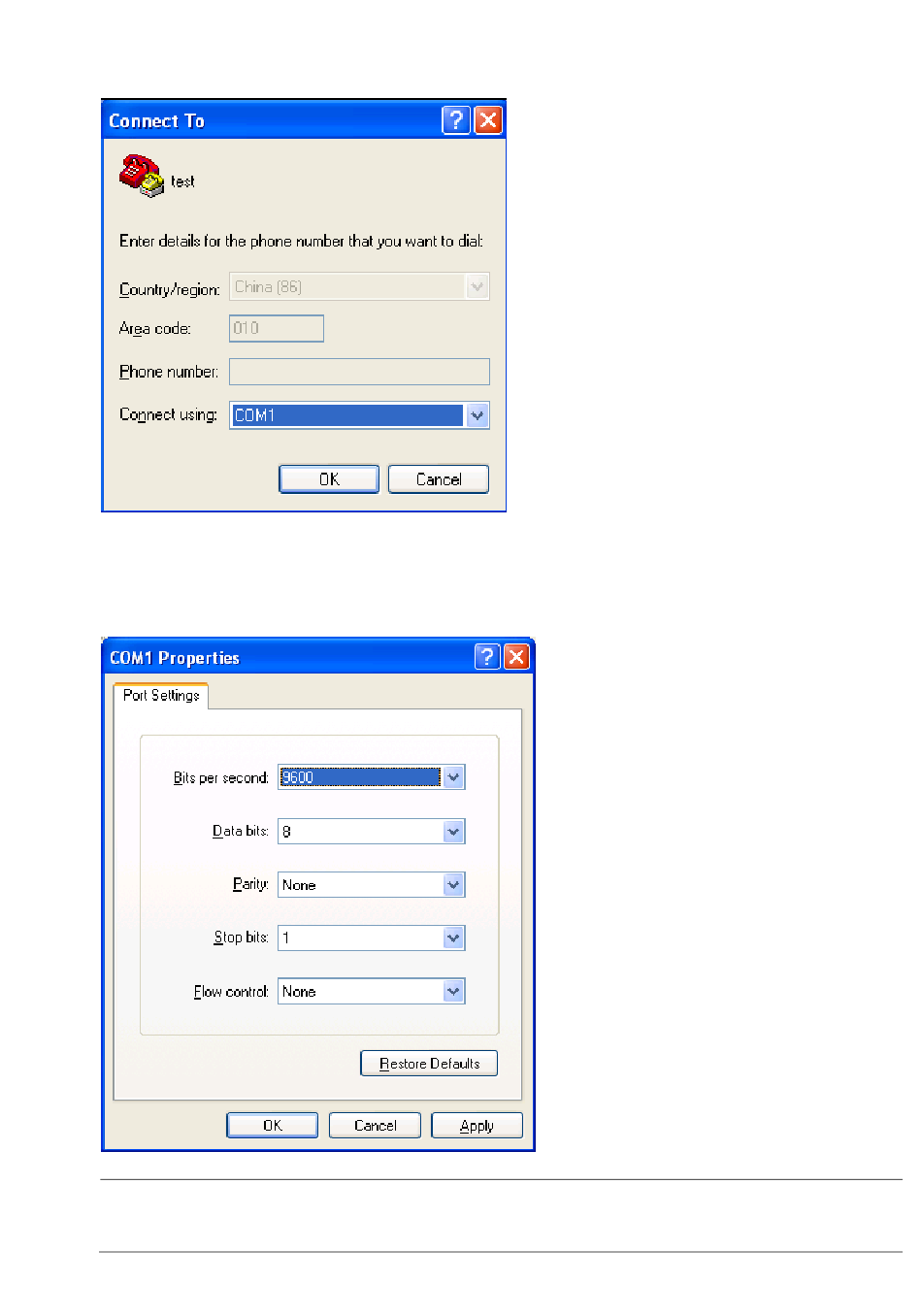

Figure 28 Set the serial port used by the HyperTerminal connection
Set Bits per second to 9600, Data bits to 8, Parity to None, Stop bits to 1, and Flow control to None,
4.
and click OK.
Figure 29 Set the serial port parameters
NOTE:
To restore the default settings, click Restore Defaults.
24
