Grounding The Switch Through The Pe Wire Of An Ac Power Cord - H3C WX3024E Installation Manual

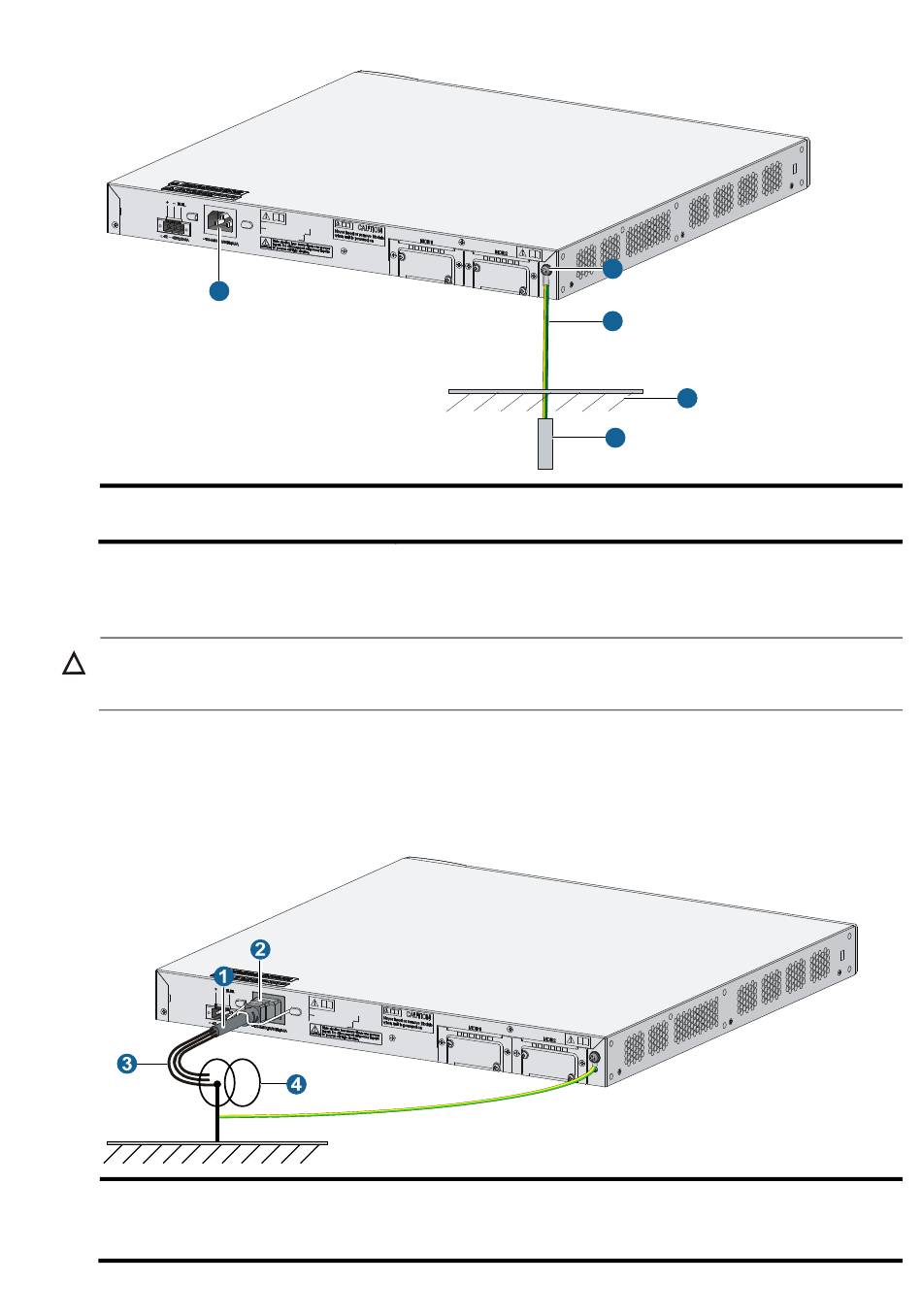

Figure 18 Ground the switch by burying the grounding conductor into the earth ground
(1) AC power receptacle
(5) Angle iron

Grounding the switch through the PE wire of an AC power cord

CAUTION:
Use this method only when the switch is AC powered.
If the installation site has no grounding strips or earth ground, you ground an AC-powered switch through
the protective earth (PE) wire of the power cord, and check that the ground contact in the power outlet is
well connected to the ground in the power distribution room or on the AC transformer side.
Figure 19 Ground the switch through the PE wire of an AC power cord
(1) Three-core AC power cord
(3) PE wire
(5) Earth
1
(2) Grounding screw
(4) Earth
(2) AC power receptacle
(4) Power transformer
16
2
3
4
5
(3) Grounding cable
