H3C WX3024E Installation Manual page 17

Hold the bottom of the switch with one hand and the front part with the other hand, and gently push
5.
the switch into the rack. See

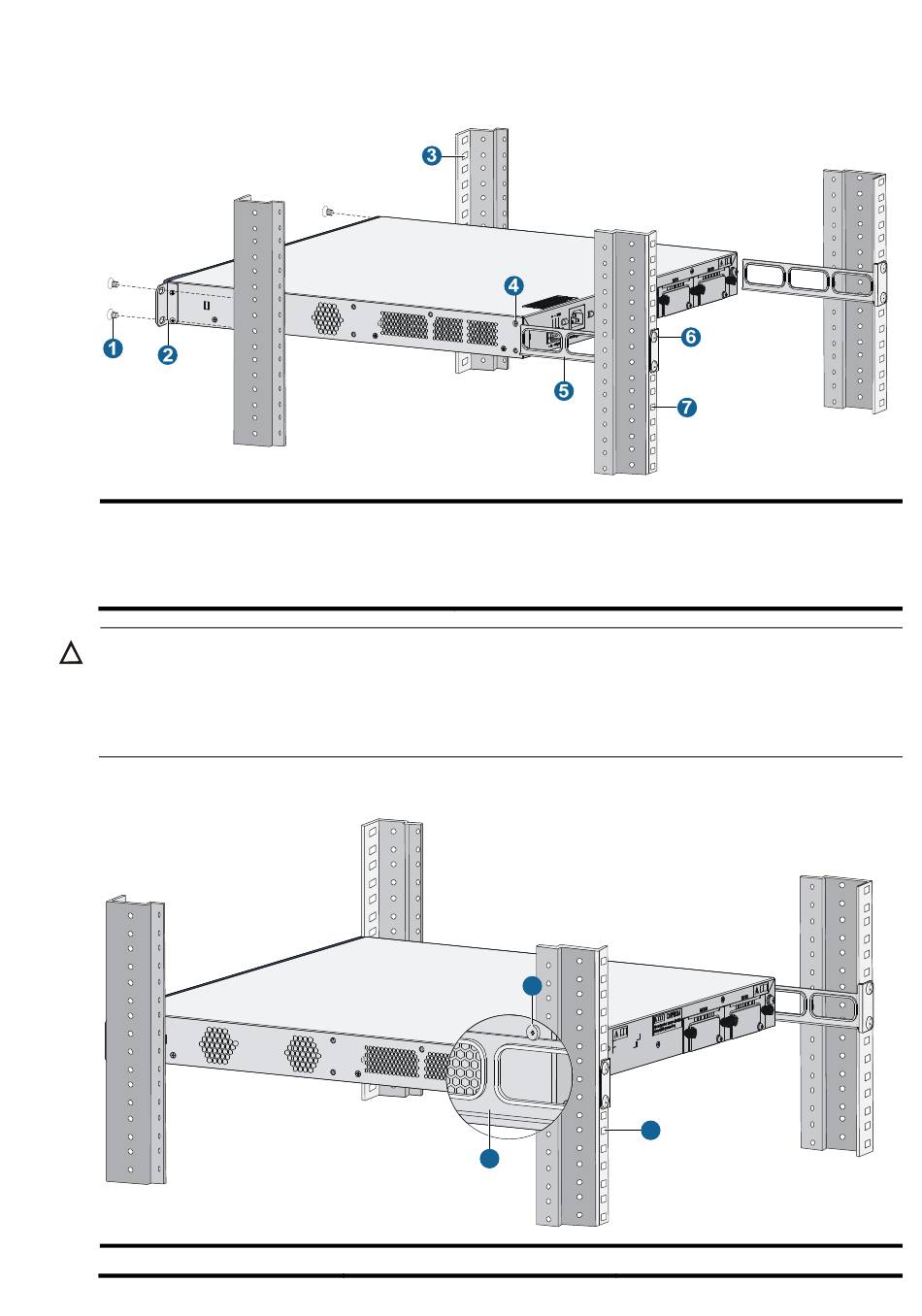

Figure 10 Install the switch using front and rear mounting brackets (I)
(1) Screw for fixing the front mounting bracket
(3) Front square-holed bracket
(5) Rear mounting bracket
(7) Rear square-holed bracket
CAUTION:
After pushing the switch into the rack, make sure that the upper edges of the rear
mounting brackets fixed on the rack have close contact with the weight-bearing screws on
the switch. See
Figure
Figure 11 Install the switch using front and rear mounting brackets (II)
(1) Rear mounting bracket
Figure 10.
(2) Front mounting bracket
(4) Weight-bearing screw
(6) Screw for fixing the rear mounting bracket
11.
(2) Weight-bearing screw
11
2
3
1
(3) Rear square-holed bracket
