NOTE:
Identify the mark on the console port and make sure that you are connecting to the correct
port.

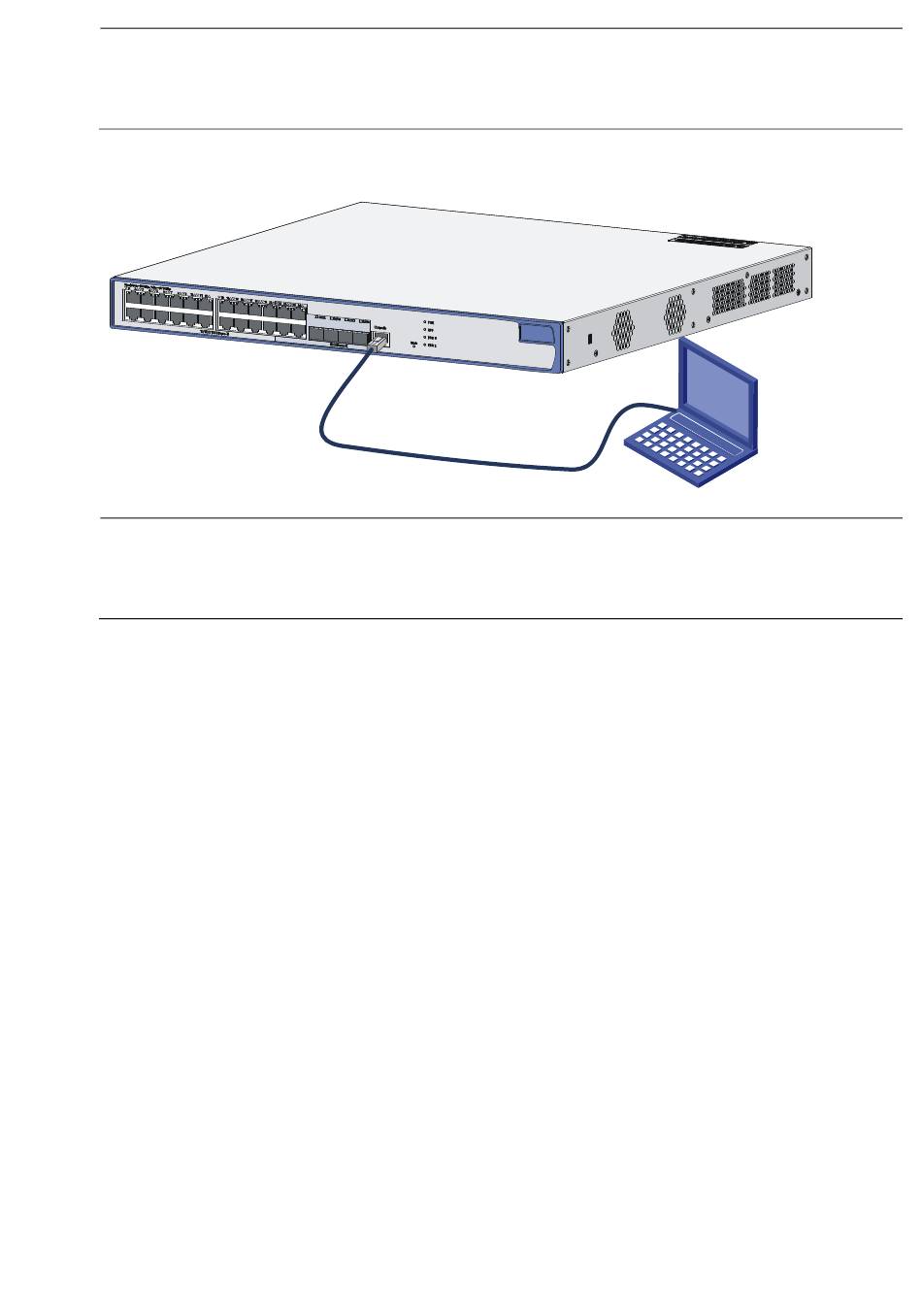

Figure 22 Connect the console cable
NOTE:
If the switch has been powered on, connect the console cable to the PC before connecting
to the switch, and when you disconnect the cable, first disconnect from the switch.

Connecting the Ethernet cables

Connecting a copper Ethernet port
To connect a copper Ethernet port:
Connect one end of the Ethernet cable to the copper Ethernet port on the switch and the other end
1.
to an Ethernet port of the peer switch.
After powering on the switch, check the LEDs of the fixed copper Ethernet port.
2.
For more information about the LED description, see the chapter "Appendix A Technical
specifications."
Connecting a fiber Ethernet port
To connect a 1000 Mbps fiber port:
Identify the top side of the SFP module, and gently insert it into the socket.
1.
