Installing The Switch By Using Front Mounting Brackets And Slide Rails - H3C WX3024E Installation Manual

Place the switch horizontally on the rack shelf, push it into the rack along the rack shelf, and fix the
4.
front mounting brackets onto the front square-holed brackets of the rack using the screws and cage
nuts. See

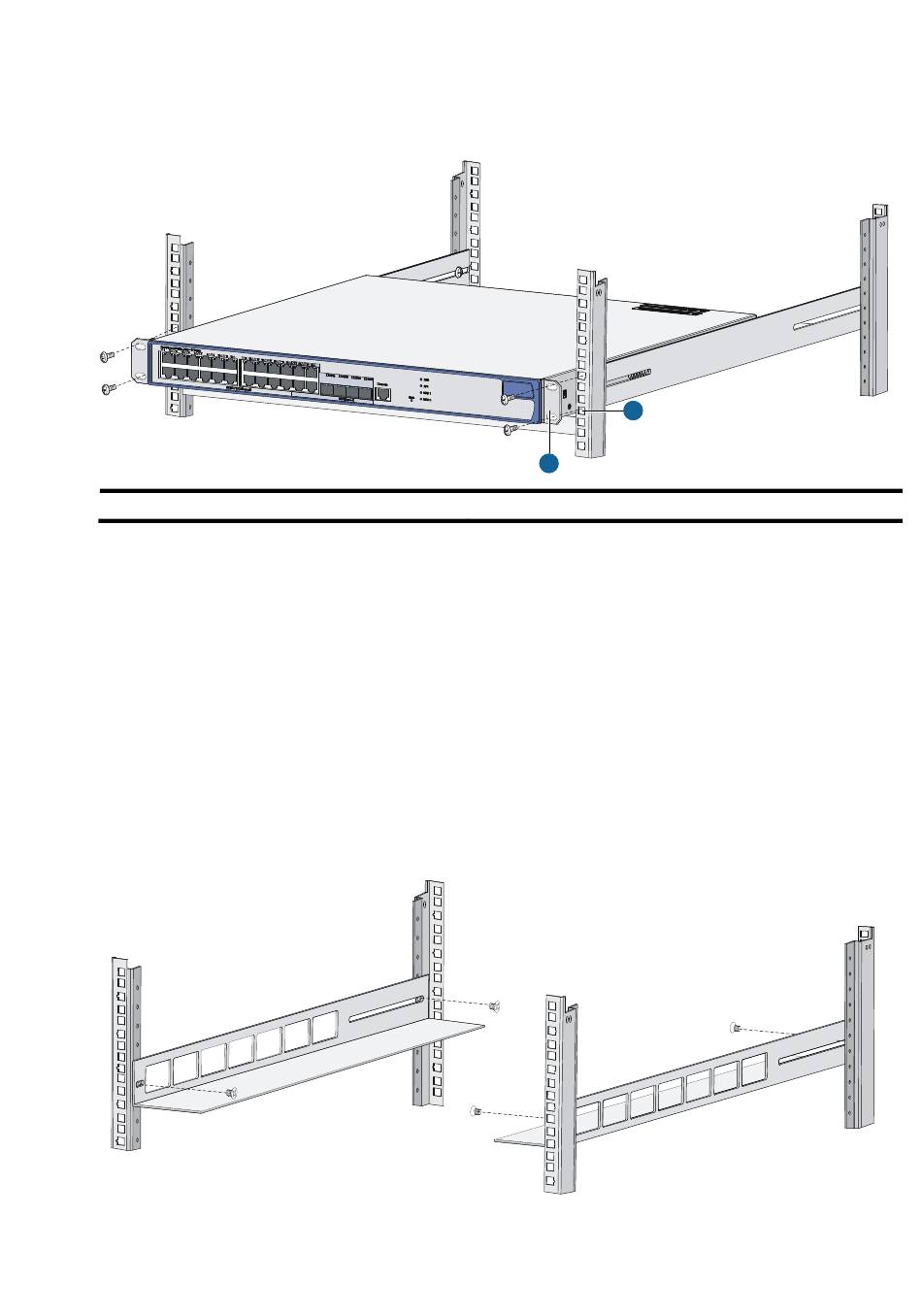

Figure 14 Install the switch using front mounting brackets and a rack shelf
(1) Front mounting bracket
Installing the switch by using front mounting brackets and slide
rails
To install the switch with front mounting brackets and slide rails:
Wear an ESD-preventive wrist strap and verify that the rack is sturdy and properly grounded.
1.
Use the screws packed with the front mounting brackets to fix the front mounting brackets on both
2.
sides of the switch. See
Fix the slide rails on both sides of the rack with M5 self-tapping screws (see
3.
is for reference only and may differ from the actual installation on your rack and slide rails).
Figure 15 Install slide rails
Hold the switch by both sides of it and gently push it into the rack along the slide rails (see
4.
16). Verify that the bottom of the switch is in firm contact with the slide rails.
Figure 14.
Figure 7.
1
(2) Front square-holed bracket
13
2
Figure 15. This figure
Figure
