Incorrect entry gives an audible error tone and correct entry gives three bleeps. Communication Delay is factory set at
zero seconds.
9.11

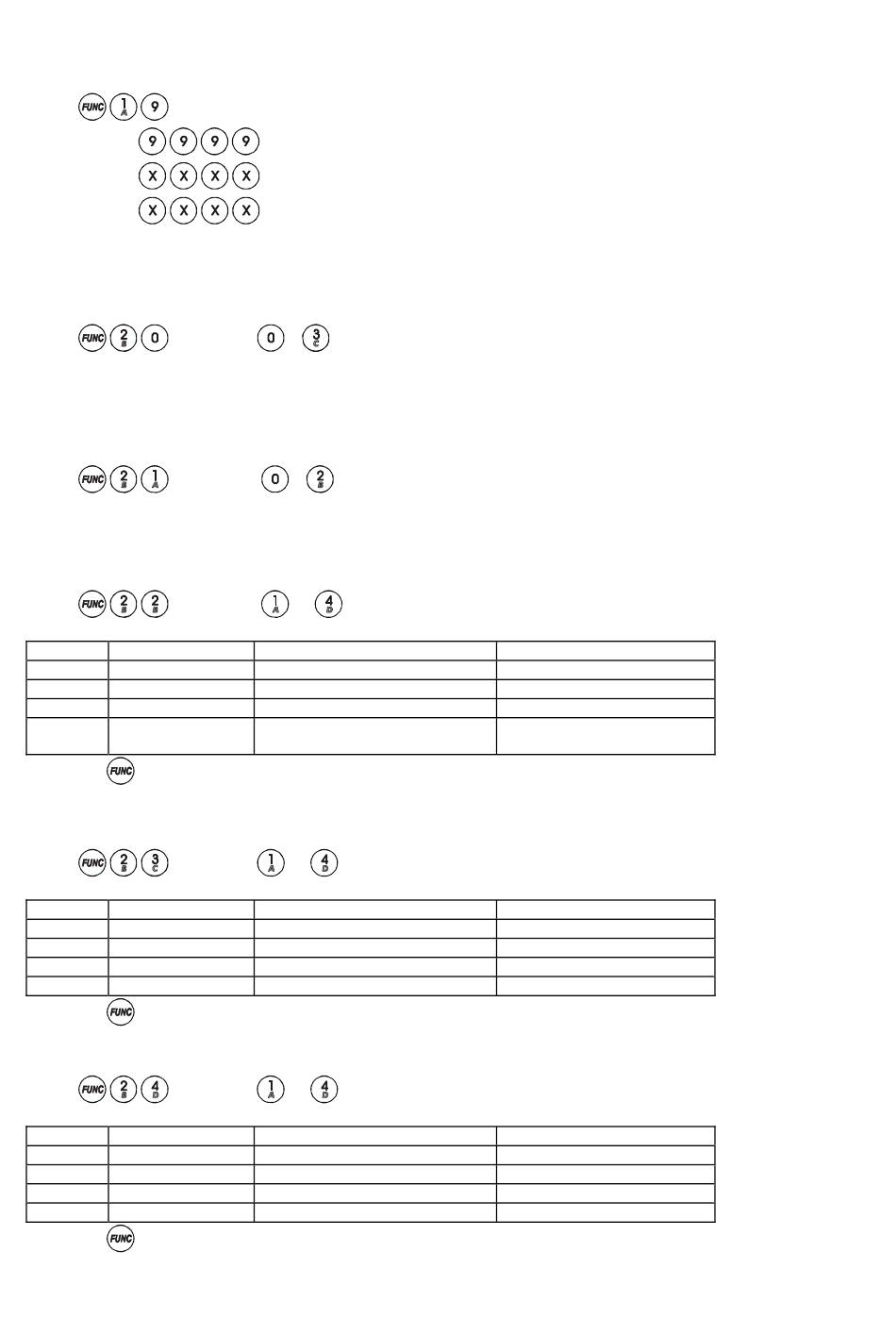

Changing the Engineer Code

Enter
Then
Then
Then
If an incorrect key is entered an error tone will be given and the function ended.
9.12

Programmable Outputs

9.12.1

Programmable Output 1.

Enter followed by
9.12.2 Programmable Output 2.
Enter followed by
9.12.3

System Option 1.

Enter followed by
Key Keypad LED
1 Alarm
2 Tamper
3 P.A.
4 Fire
Press the key to accept changes.
9.12.4 System Option 2.
Enter followed by
Key Keypad LED
1 Alarm
2 Tamper
3 P.A.
4 Fire
Press the key to accept changes.
9.12.5 System Option 3.
Enter followed by
Key Keypad LED
1 Alarm
2 Tamper
3 P.A.
4 Fire
Press the key to accept changes.
Page 24
the old Engineer Code (Factory Set at 9999) -this gives an audible acceptance tone.
the new Engineer Code - gives an audible acceptance tone
the new Engineer Code again- gives an audible acceptance tone
- for following options:
0 OFF (programmable output 1 not used).
1 PIR remote LED enable.
2 PIR latch memory.
3 Shock Sensor reset.
- for following options:
0 OFF (programmable output 2 not used).
1 PIR remote LED enable.
2 PIR latch memory.
- The RKP LEDs will toggle on and off indicating the selection made.
LED ON
Silent P.A.
User log reset enabled
Engineer only system reset
External and Internal Sounders
on Tamper activation
- to toggle RKP LEDs
LED ON
Engineer code lock NVM reset
Siren enable on line fail
Panel set on AC fail
Limited Reset
- to toggle RKP LEDs
LED ON
Alarm digi active high
P.A. digi active high
Fire digi active high
Confirmed digi active high
LED OFF
Audible P.A.
User log reset disabled
User system reset
Internal sounder only on
tamper activation
LED OFF
Power up NVM reset
No siren on line fail
No panel set on AC fail
All Reset
LED OFF
Alarm digi active low
P.A. active low
Fire digi active low
Confirmed digi active low
