8.4
Remote Keypad 'RKP' Connections
If more than one keypad is to be used, additional keypads can be wired in either daisy chain or star configuration.
8.4.1

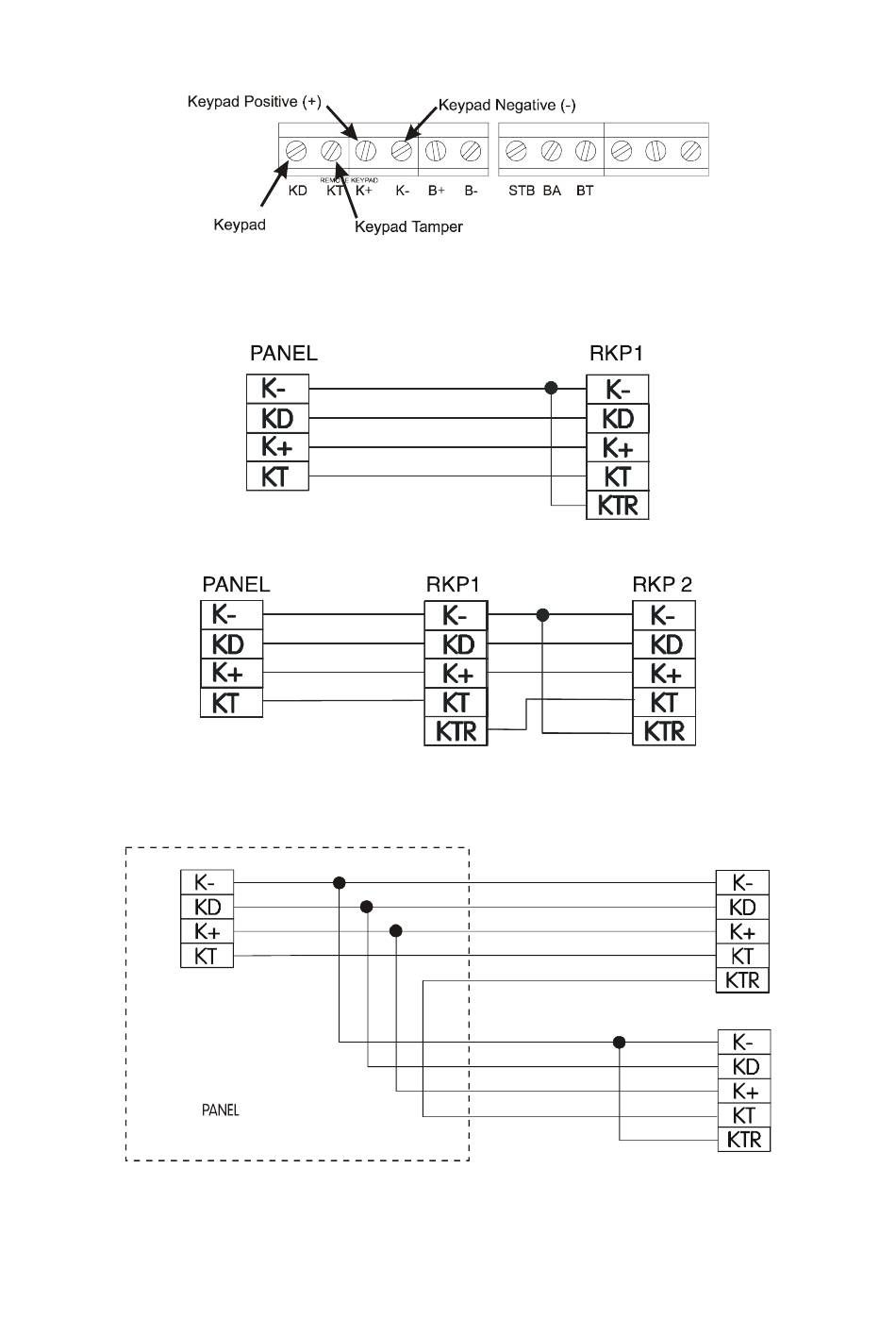

Wiring for single Remote Keypad
8.4.2
Wiring for multiple Remote Keypads (daisy chain)
8.4.3
Wiring for multiple Remote Keypads (star configuration)
PANEL
Page 18
RKP1
RKP2
