7.2

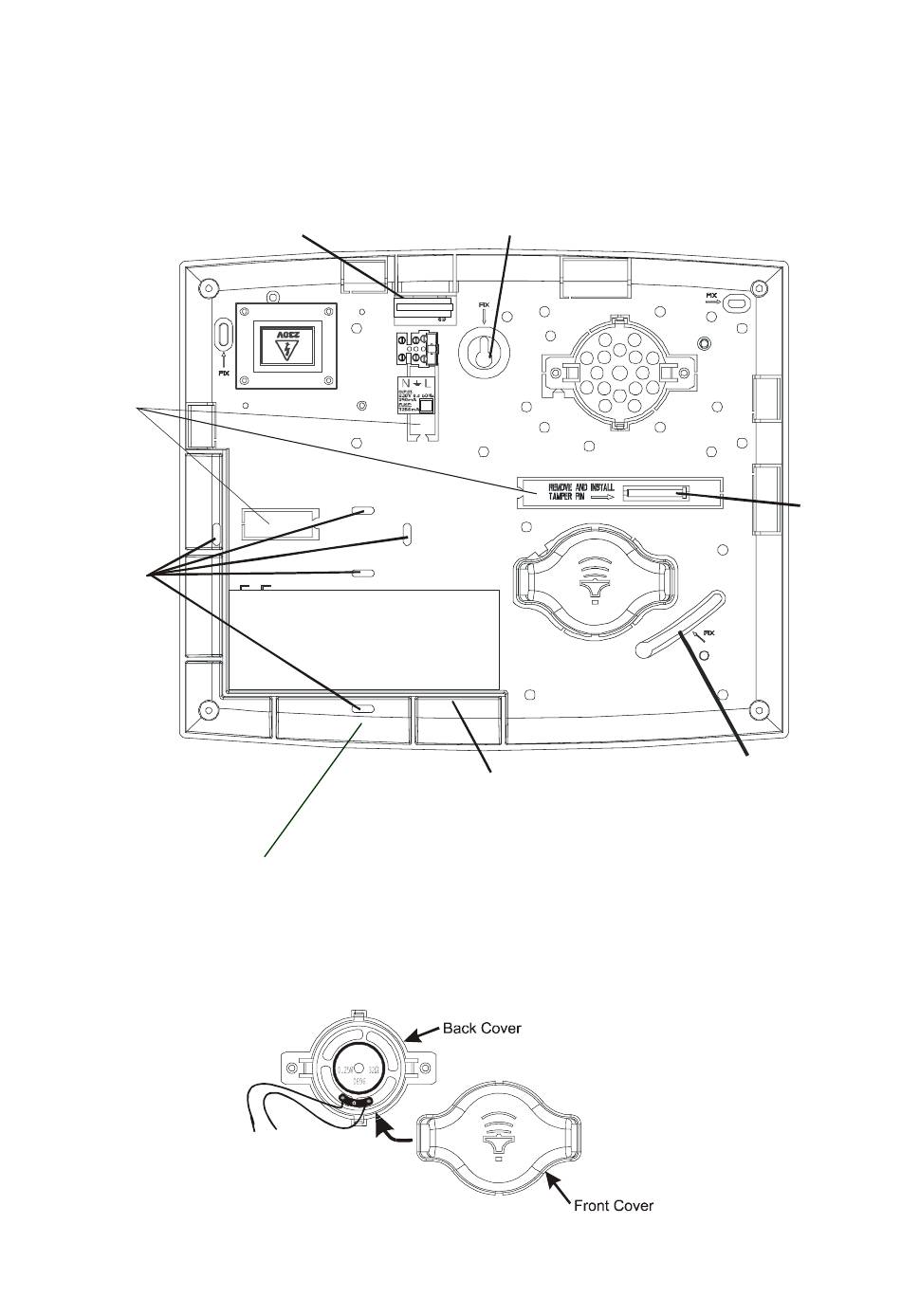

Panel Assembly (Plastic Version)

The Sterling 10 plastic case is packaged with the transformer, speaker and tamper switch in place. The speaker cover,
tamper switch pin and cable knock out should be removed from the panel prior to affixing to the wall.
Wiring
knockouts
Cable tie
slots
Note: Use the cable tie provided to secure the battery in place
Remove the speaker back cover. If the internal speaker is to be used inside the panel, discard the front cover. If the
speaker is to be fitted externally remove the speaker back cover from the panel. The speaker should be mounted using
the two outer holes on the back cover and then clip the front cover into place.
Rins136 Issue 9
Tamper switch
-
+
Battery support tray
Wall fixing hole
Tamper
switch pin
Wall fixing hole
Page 15
