7.1
Panel Assembly (Steel Version)

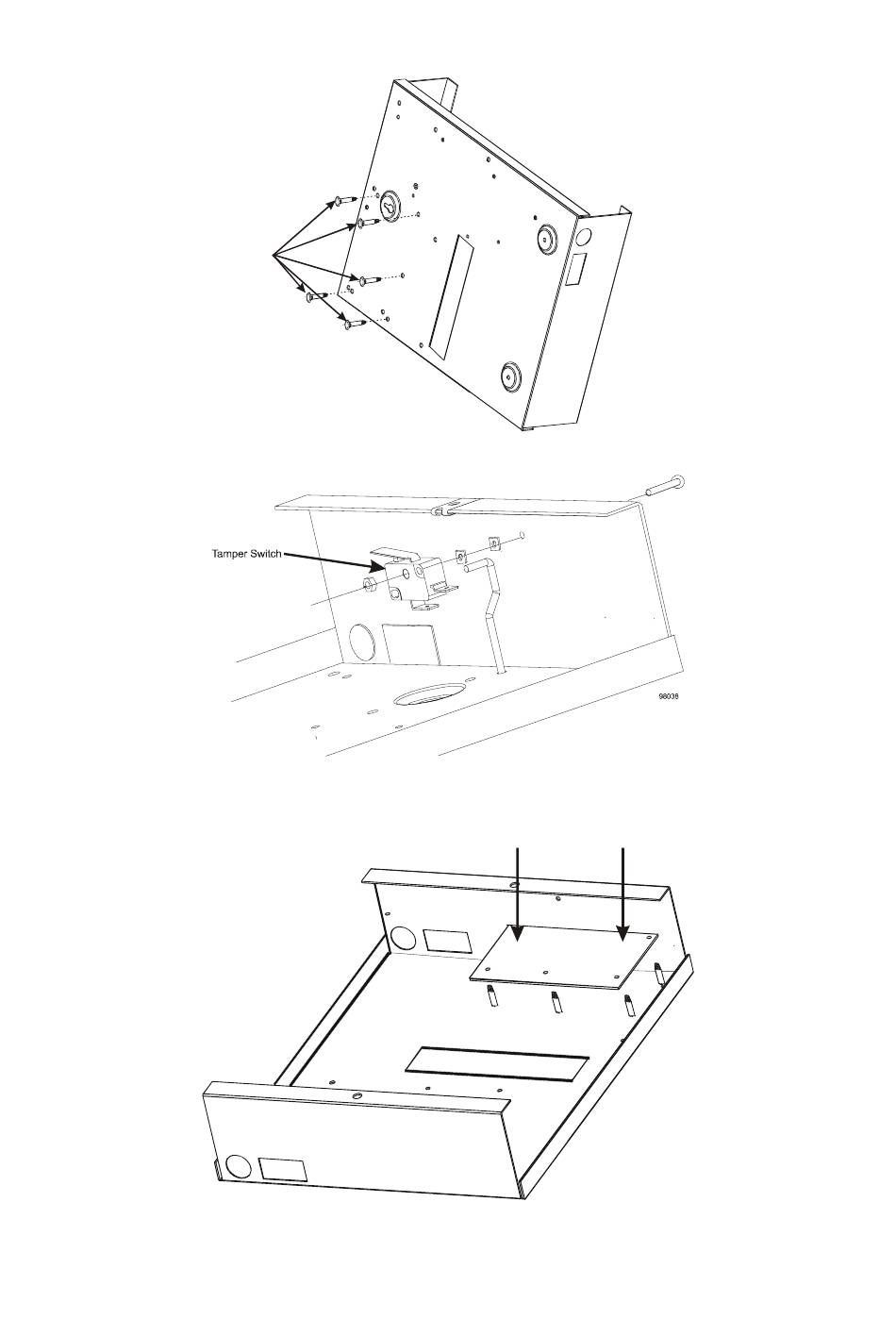

Take off the front cover and remove the components. Push in the PCB support posts from the rear of the panel as
shown.
Assemble the tamper switch from the kit of parts as indicated.
NOTE: When installing the panel cover the long screw should be used in the top hole, this will enable the tamper switch
to be operated correctly. Do not use the long screw in the bottom hole as damage to the battery may occur.
Fix the control panel to the wall using the screws and fixings supplied. Carefully place the PCB onto the supports and
push into place.
Page 14
PCB
Support
Posts
98037
