UG-1759 ADMV4530IQ-EVALZ/ADMV4530IF-EVALZ

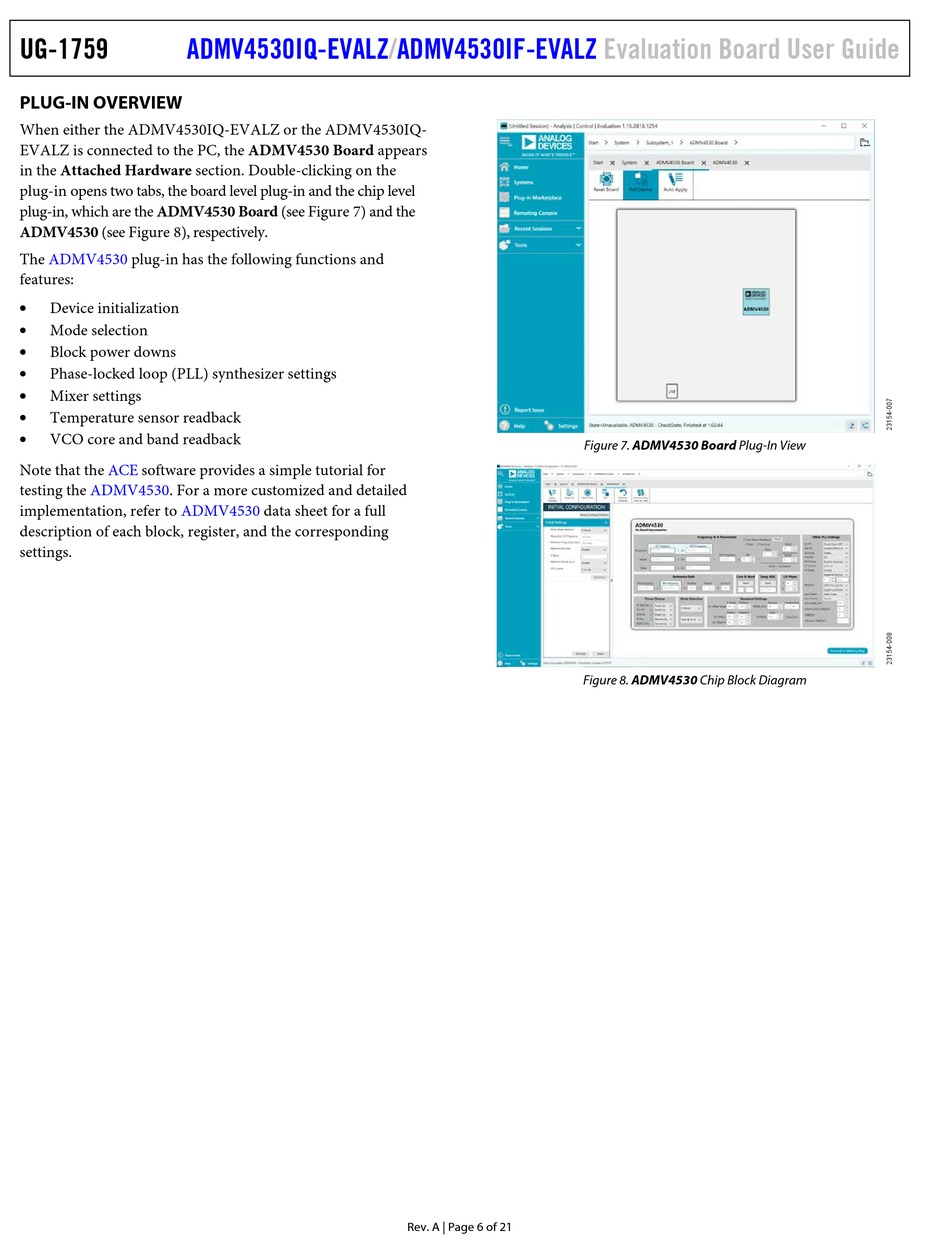

PLUG-IN OVERVIEW

When either the ADMV4530IQ-EVALZ or the ADMV4530IQ-
EVALZ is connected to the PC, the ADMV4530 Board appears
in the Attached Hardware section. Double-clicking on the
plug-in opens two tabs, the board level plug-in and the chip level
plug-in, which are the ADMV4530 Board (see Figure 7) and the
ADMV4530 (see Figure 8), respectively.
The ADMV4530 plug-in has the following functions and
features:

Device initialization

Mode selection

Block power downs

Phase-locked loop (PLL) synthesizer settings

Mixer settings

Temperature sensor readback

VCO core and band readback
Note that the ACE software provides a simple tutorial for
testing the ADMV4530. For a more customized and detailed
implementation, refer to ADMV4530
description of each block, register, and the corresponding
settings.
data sheet for a full
Rev. A | Page 6 of 21
Evaluation Board User Guide
Figure 7. ADMV4530 Board Plug-In View
Figure 8. ADMV4530 Chip Block Diagram
