User Guide
EVALUATION BOARD SOFTWARE

PLUG-IN OVERVIEW

When the ADMV8502-EVALZ is connected to the PC, the
ADMV8502 Board appears in the Attached Hardware section
of the Start tab. Double-click the ADMV8502 Board plug-in to
open two tabs, which are the ADMV8502 Board plug-in view (see
Figure 5) and the ADMV8502 chip plug-in view (see
respectively.
The ADMV8502 chip plug-in view includes the following feature
sections (see Table 1 for additional information on these sections):
The CONFIGURATION section (load from .csv)
►
The Logic Pins section
►
The SFL Settings section
►
The chip Status section
►
The Display controls section
►
The Filter Settings section
►
The ACE software provides a simple tutorial for testing the
ADMV8502. For a more customized and detailed implementation,
refer to ADMV8502 data sheet for a full description of the function-
ality, registers, and corresponding settings.
analog.com
Figure 6),

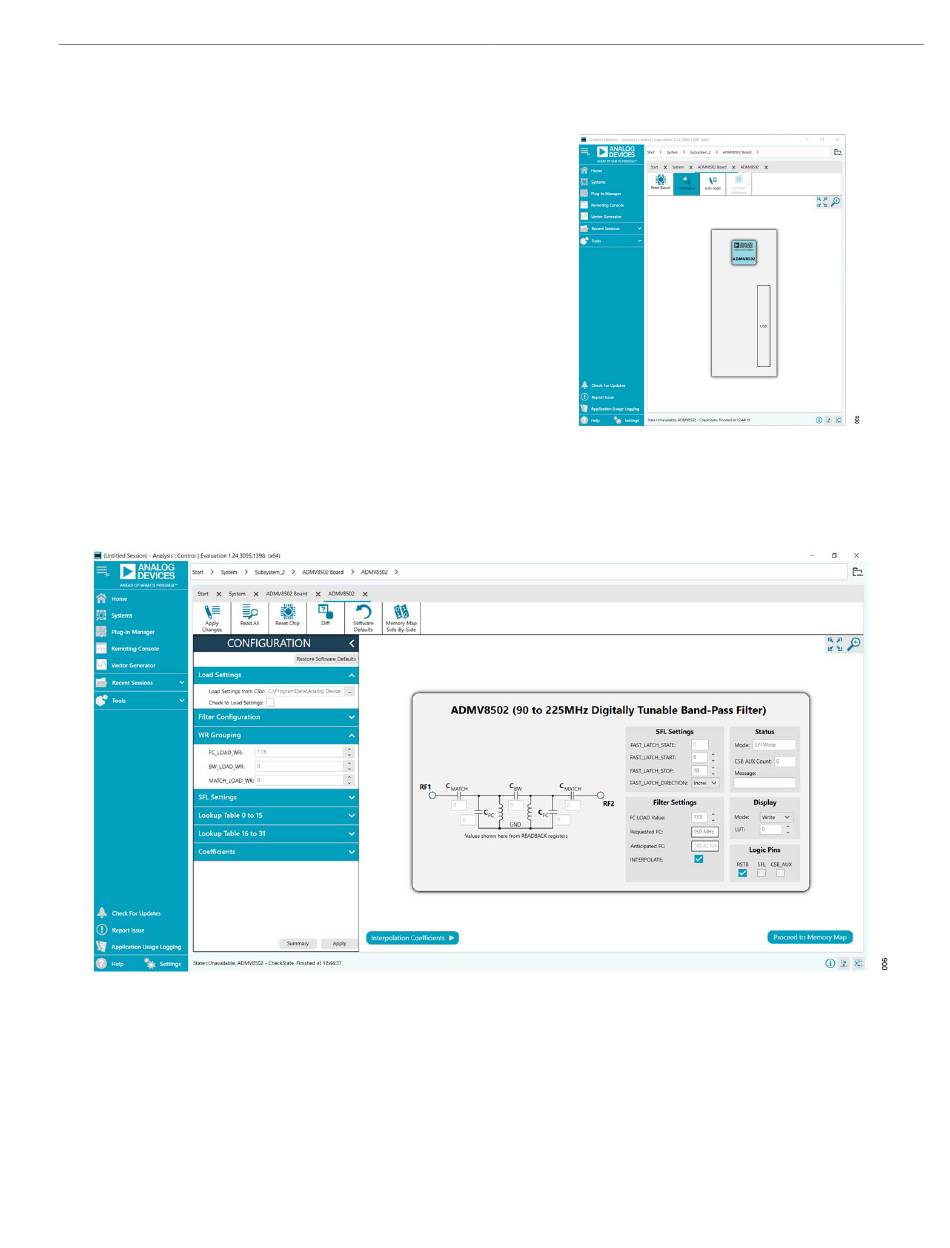

Figure 6. ADMV8502 Chip Plug-In View
EVAL-ADMV8502
Figure 5. ADMV8502 Board Plug-In View
Rev. 0 | 5 of 17
