PLUG-IN OVERVIEW

When the ADMV8913-EVALZ is connected to the PC, the
ADMV8913 Board appears in the Attached Hardware section
of the Start tab. Double click the ADMV8913 Board plug-in to
open two tabs, the ADMV8913 Board plug-in view (see Figure 5)
and the ADMV8913 chip plug-in (see Figure 6), respectively.
The ADMV8913 chip plug-in includes the following feature
sections (see Table 1 for additional information on these sections):
• The CONFIGURATION section (load from CSV)
• The Logic Pins section
The SFL Settings section
•
• The chip Status section
• The Display controls section
• The Filter Settings section
The ACE software provides a simple tutorial for testing the
ADMV8913. For more customized and detailed implementation,
refer to the ADMV8913 data sheet for a full description of the
functionality, registers, and corresponding settings.
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
Evaluation Board User Guide

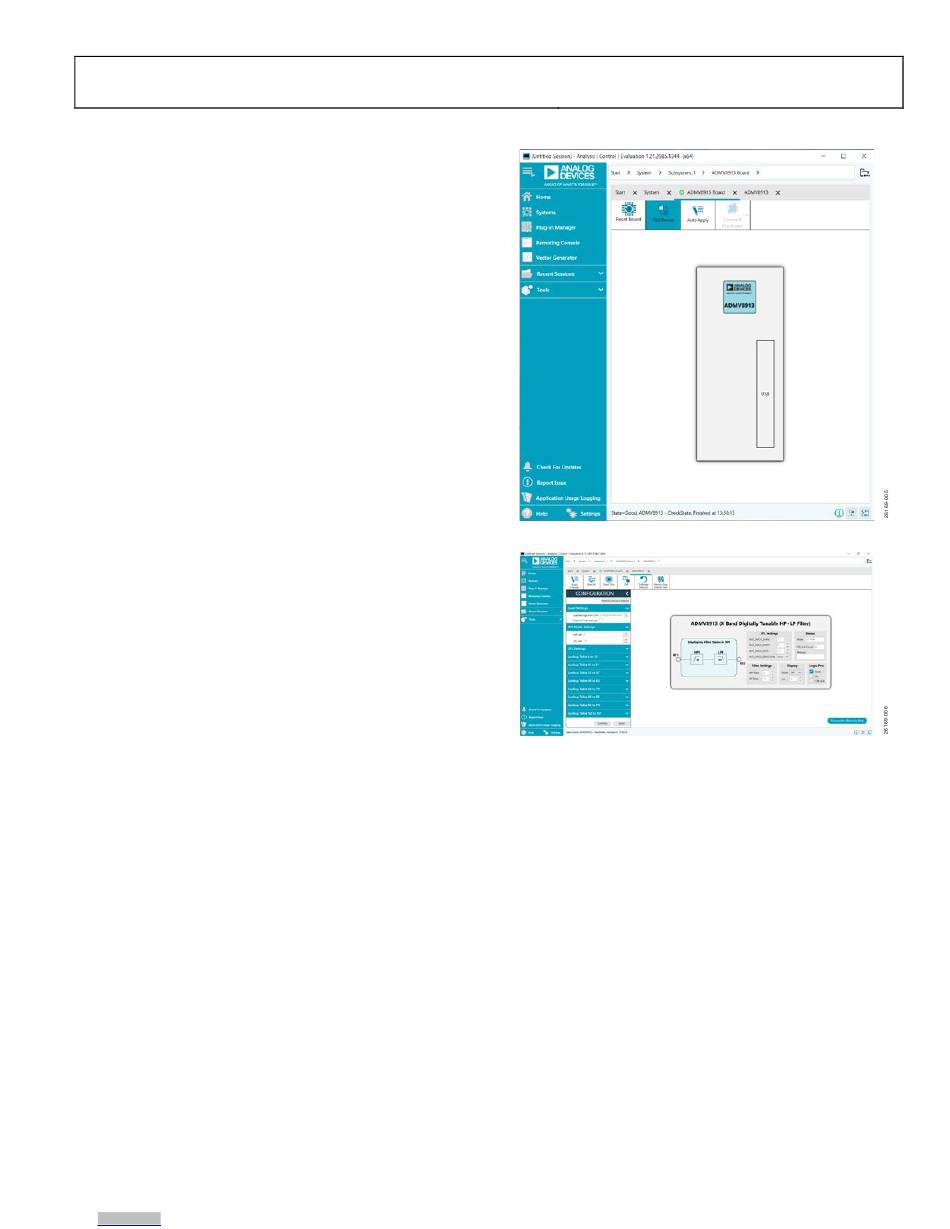

Figure 5. ADMV8913 Board Plug-In View
