External Control - Source Audio EQ2 Programmable EQ User Manual

External Control

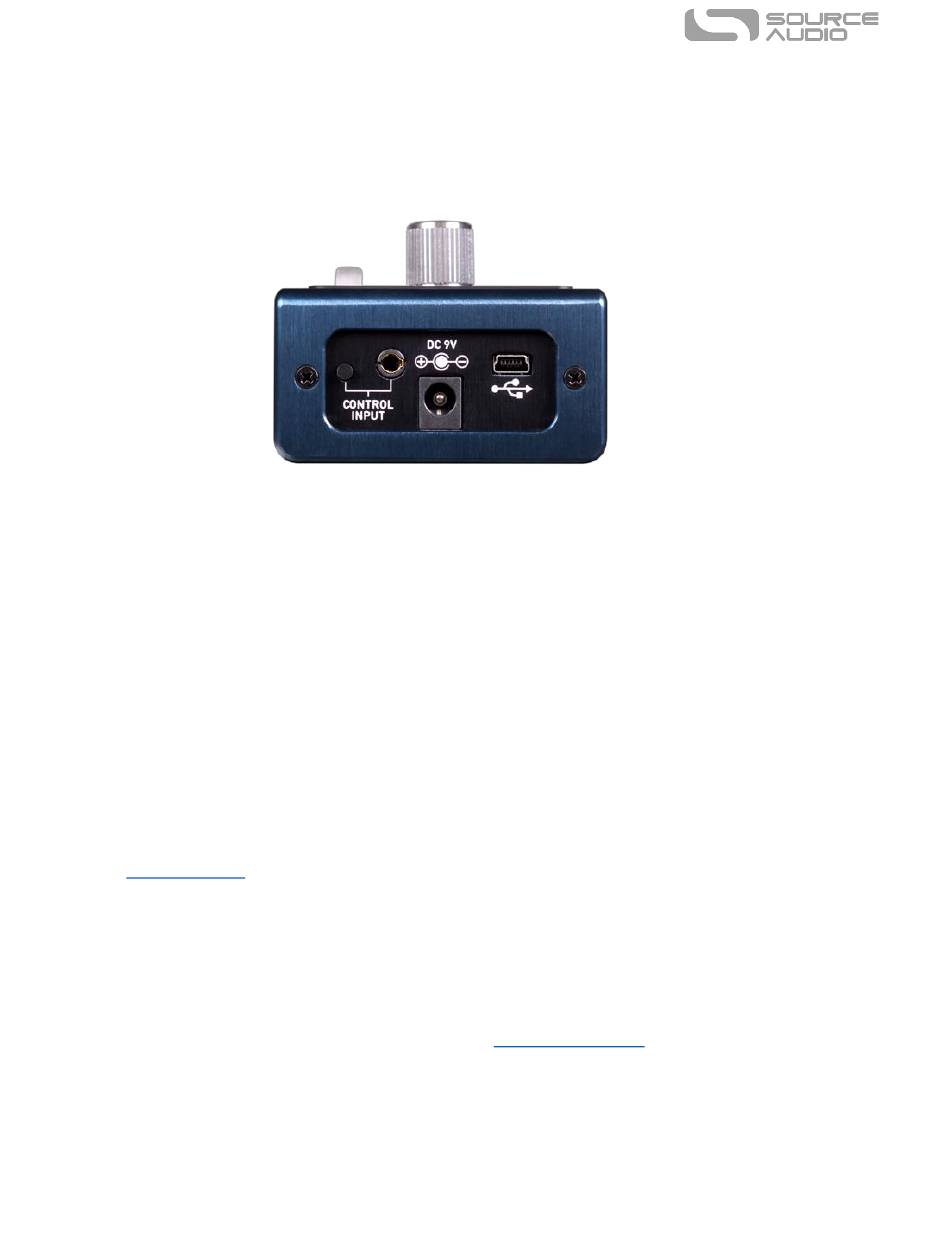

Plug an expression pedal, an external footswitch, the Source Audio Tap Tempo Switch, or the Source
Audio Hot Hand 3 Universal Wireless Controller into the EQ2 Programmable EQ's CONTROL INPUT
jack and access an array of external functionality and expression control.
External Switch
External switches can be used for several different control options. They provide an easy way to
remotely step through presets, toggle between settings, and more. The EQ2 is compatible with the
Source Audio Tap Tempo Switch.
External Switch Options
There are four ways the Control Input port can be configured. Three of these ways are through the
use of an external switch; the Source Audio Tap Tempo Switch. Below are the possible
configurations for the Control Input port. Please note that External Switch Options is a global
hardware setting.
Neuro Hub/Expression: This configures the Control Input port to receive expression signal (via the
Source Audio Dual Expression Pedal) and MIDI signal from the Neuro Hub.
External Switch (Assignable): This option maps the external switch to any of the functions listed in
the External Switch section of the EQ2's Sound Editor, and allows you to decide whether the action is
momentary (only active when held), or latching (activated after pushing once, deactivated after
pushing a second time). Additionally, these actions are saved per preset.
External Switch (Preset Up/Down): This option configures the external switch to increment or
decrement presets.
External Switch (Tuner): This option configures the external switch to activate the EQ2's onboard
tuner. For more information on the tuner, visit the
External Switches (1/8" TRRS Connection)
The Source Audio Tap Tempo footswitch can also be connected to the CONTROL IN jack using a
3.5mm (1/8 inch) cable. If you wish to use this function, you must enable the function globally with
SA270
Additional Features
EQ2 User Guide
section of this guide.
21
