Confer Plastics ROLLGUARD 7200 Assembly And Installation Manual page 5

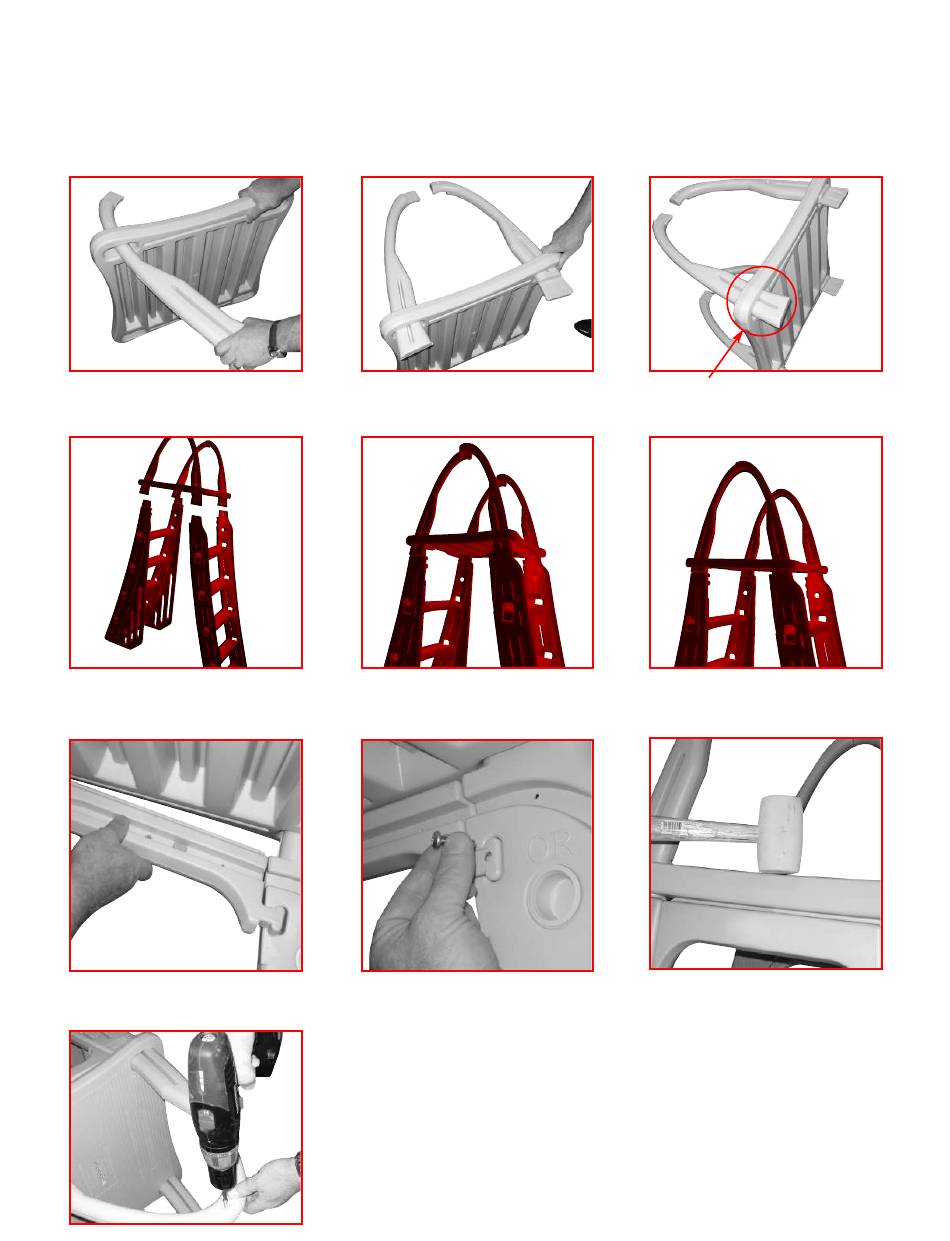

STEP 3:
HANDRAILS/DECK
#1-3: Push handrails up through bottom of deck leaving about 3" exposed.
#4: Align the inside/outside
rails with deck/handrail.
#7: Install right and left
ladder bridges.
Tools needed:
Parts needed:
#5-6: Partially slide deck down locking handrails onto
ladder sections.
#8: Using the 1/4" - 20 x 1"
screws and hex nuts provided
attach both outside bridge
tabs to the outside ladder rails
marked OL & OR. Insert
screws through from the
inside and fasten with hex
nuts on the outside of rail.
#10: Overlap the flat sections at top
of the handrails and connect using
1-#10 x 1-1/4" self tapping screw.
Repeat for other handrail.
rubber mallet, cordless drill w/Phillips driver
1- Deck
4- Handrails
1- Left bridge with lock assembly
1- Right bridge
2- #10 x 1-1/4" self tapping screws
2- 1/4 - 20 x 1" Bolts
2- 1/4 - 20 Hex Nuts
#9: Finish tapping deck all
the way down until engaged
on to bridge.
