4" Standard Pump Installation, Operation & Service Manual

Replacing the UMP

OFF DANGER! Always disconnect, lock out, and tag the power before starting to service the pump.
When servicing unit use non-sparking tools and use caution when removing or installing equipment to
avoid generating a spark.
1. Remove the extractable portion of the old pump from the tank as described in Removing the Pump.

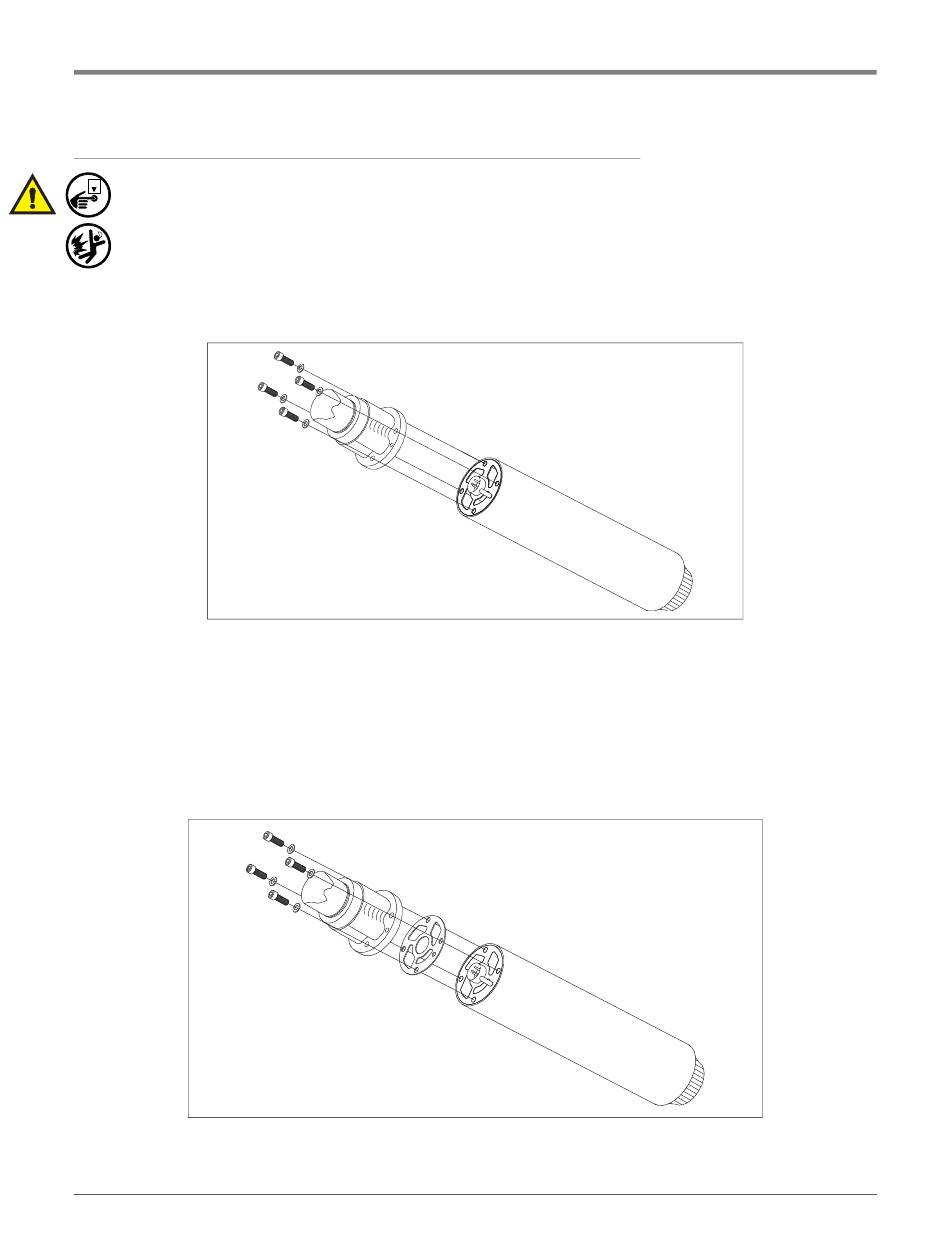

2. Remove the old UMP by removing the four bolts holding the discharge head as shown in Figure 29.
3. Rock the unit while pulling away from the discharge head until it is free.
4. Replace the old gasket with a new one provided. Place the new gasket on the new UMP so that all the holes
align (see Figure 30).
CAUTION! Gaskets from competitive UMPs will not seal properly and performance will be reduced.
5. Visually inspect the pigtail connector in the discharge head - replace if damaged. Be certain the indexing tab
of the pigtail is seated in the notch of the discharge head.
153-12.eps
Figure 29. Removing the UMP
153-13.eps
Figure 30. Replacing the gasket
33
