Recommended Floating Suction Installation

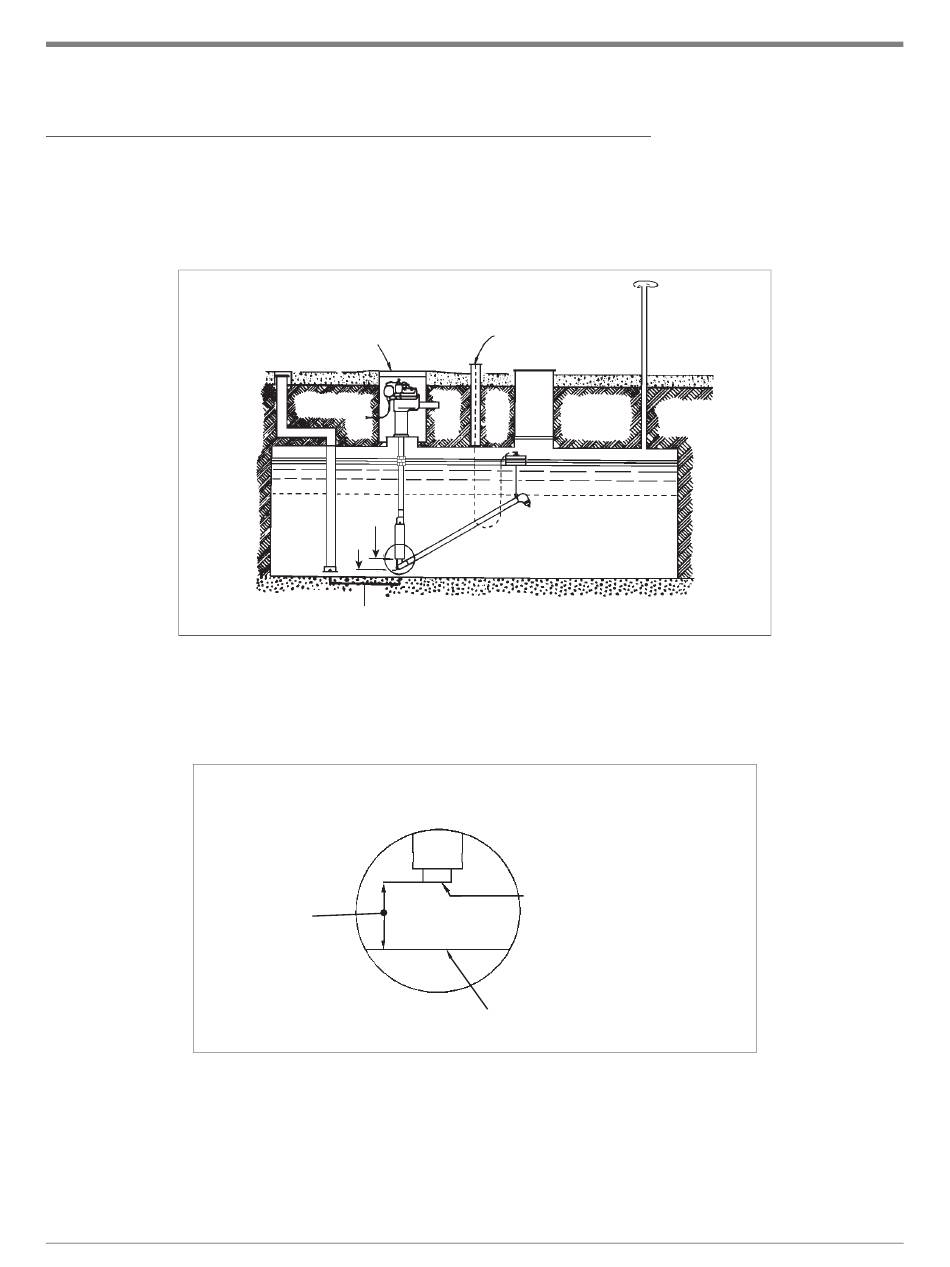

Figure 2 is an example of a floating suction installation. The floating suction arm can be mounted to pump previous
to installing in tank.
NOTE: Veeder-Root supplies adapter only, not the apparatus.
Manhole:
should be larger than manhole
welded on tank, keep area open
down to tank.
Figure 3 is an enlarged view within the circle in the above figure.
Easy service access is provided by unbolting manhole lid through which pump is mounted and removing entire
assembly. Use proper thread sealant and insert gasket between flanges of floating suction and pump. This
prevents hindrance to pump performance when product level is below this point.
NOTE: Red jacket pumps are centrifugal type pumps and are not designed to pump product when the level is
below the bottom end of the UMP.
14''
(356 mm)
4''
(102 mm)
Minimum 3 ' (914 mm)
Figure 2. Floating suction installation
14''
(356 mm)
153-3.eps
Figure 3. Floating suction adapter
Recommended Floating Suction Installation
Opening for gauging and
adjusting cable
2'' NPT female thread
Bottom of tank
6
