ISOTROL CONTROL BOX (P/N 880-049-1)
120 VOLT
DISPENSER
SIGNALS
120 VOLT ISOLATED OUTPUT TO IQ CONTROL BOX
IQ CONTROL BOX (P/N 880-051-1)
C23
TB1
COM+
RS-485 CONNECTIONS
INSTALL IN CONDUIT
(MANIFOLDED UNITS
ONLY)
NEUTRAL
(FROM SUPPLY PANEL)
ISOTROL CONTROL BOX WIRING PRECAUTIONS
WARNING! This device is intended to provide electrical isolation between the dispenser pump enable (Hook) signal and the
submersible turbine pump (STP) control relay. Other energized sources of power can still exist within the dispenser even
with this device. The neutral connection to the N terminal of TB1 and N terminal of TB2 must be from the service panel and be
a permanently connected, unswitched connection.
The N connection on TB1 and the eight N connections on TB2 may be spliced to a common neutral wire from the service panel
described above.
Make only one "wire" connection on each N terminal on TB2.
CAUTION! The phase of L1 (TB1) must match the phase of the power supplying the ATG device in order to prevent cross phasing
which may damage the input on some ATG equipment.
GENERAL WIRING PRECAUTIONS
Wiring must be rated 90°C minimum.
Make ground connection in accordance with local codes.
UNSWITCHED
NEUTRAL TO TB2
NEUTRAL
TB2
HOT
1 2 3 4 5 6 7 8
DISPENSER INPUTS
PHASE ON L1 MUST BE SAME AS DEVICE
CONNECTED TO ATG TERMINAL
CHANNEL 1
CHANNEL 2
CHANNEL 3
CHANNEL 4
CHANNEL 5
CHANNEL 6
CHANNEL 7
CHANNEL 8
COM- SHLD D2 D1 M2 M1 L1 L2

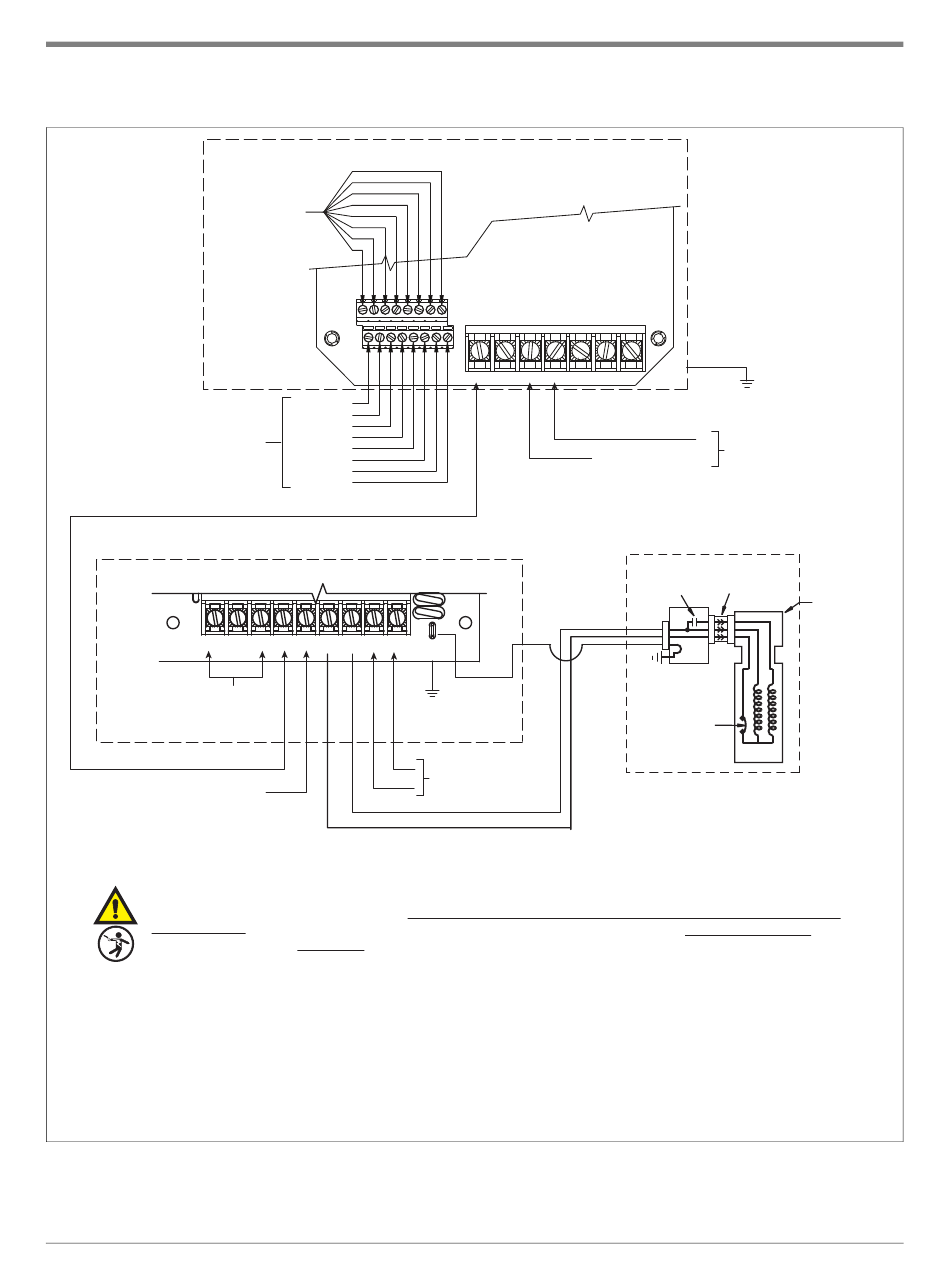

Figure 19. Isotrol to IQ System Wiring - 120 Volt Dispenser Signals
TB1
ATG S N L1 L2
NOT NOT
USED USED
Z2
Z3
GND
CONNECT TO
ELECTRICAL
GROUND
208/230 VOLT
FROM SUPPLY
PANEL
22
M2 M1
NOT NOT CONNECT TO
USED USED
ELECTRICAL GROUND
L1
120 V FROM
SUPPLY PANEL
UNSWITCHED NEUTRAL
Electrical
Continuous
interlock
duty capacitor
R
B
O
G
Junction box
in manifold
Internal
overload
protector
Motor
STP
153-8.eps
Conduit Box Wiring
Extractable
packer
