4" Standard Pump Installation, Operation & Service Manual
8. Lay the tubing beside the column pipe. Stop 1 - 3 inches (25 - 76 mm) above the discharge head.
9. Secure the siphon return line tube to the column pipe with tie straps. Locate the tie straps approximately 6
inches (152 mm) from the packer, 6 inches from the discharge head and in the middle of the tubing (see
Figure 12).
(152mm)
10. Apply an adequate amount of fresh, UL classified for petroleum, non-setting thread sealant to the threads of
the riser pipe.
WARNING! For fixed length pumps:
Confirm that the lifting eyebolt is properly torqued to 10 ft-lbs (13.6 N•m) with a minimum of 6 full threads in-
stalled. Occasionally, eyebolts are removed after pump installation and corrosion may occur in the threaded
areas of the wiring compartment cover (eyebolt plug) and the eyebolt. If corrosion has occurred, the cover
and eyebolt should be replaced.
Utilize the lifting eyebolt to suspend the pump vertically and then install the pump onto the riser pipe until
watertight and in alignment with the piping to the dispensers.
11. Remove cover from wiring compartment.
12. Pull pigtail wires into wiring compartment.
13. Cut pigtail wires leaving approximately 8 inches (200 mm) hanging out of wiring compartment.
14. Strip insulation off all wires 3/8 inch (10 mm).
15. Using supplied wire nuts, attach like colored pump pigtail wires to like colored electrical connector wires as
shown in Figure 13.
From power
panel
Ground wire connection
in contractor's box
6"
1/2 distance
Don't crimp tubing with tie straps

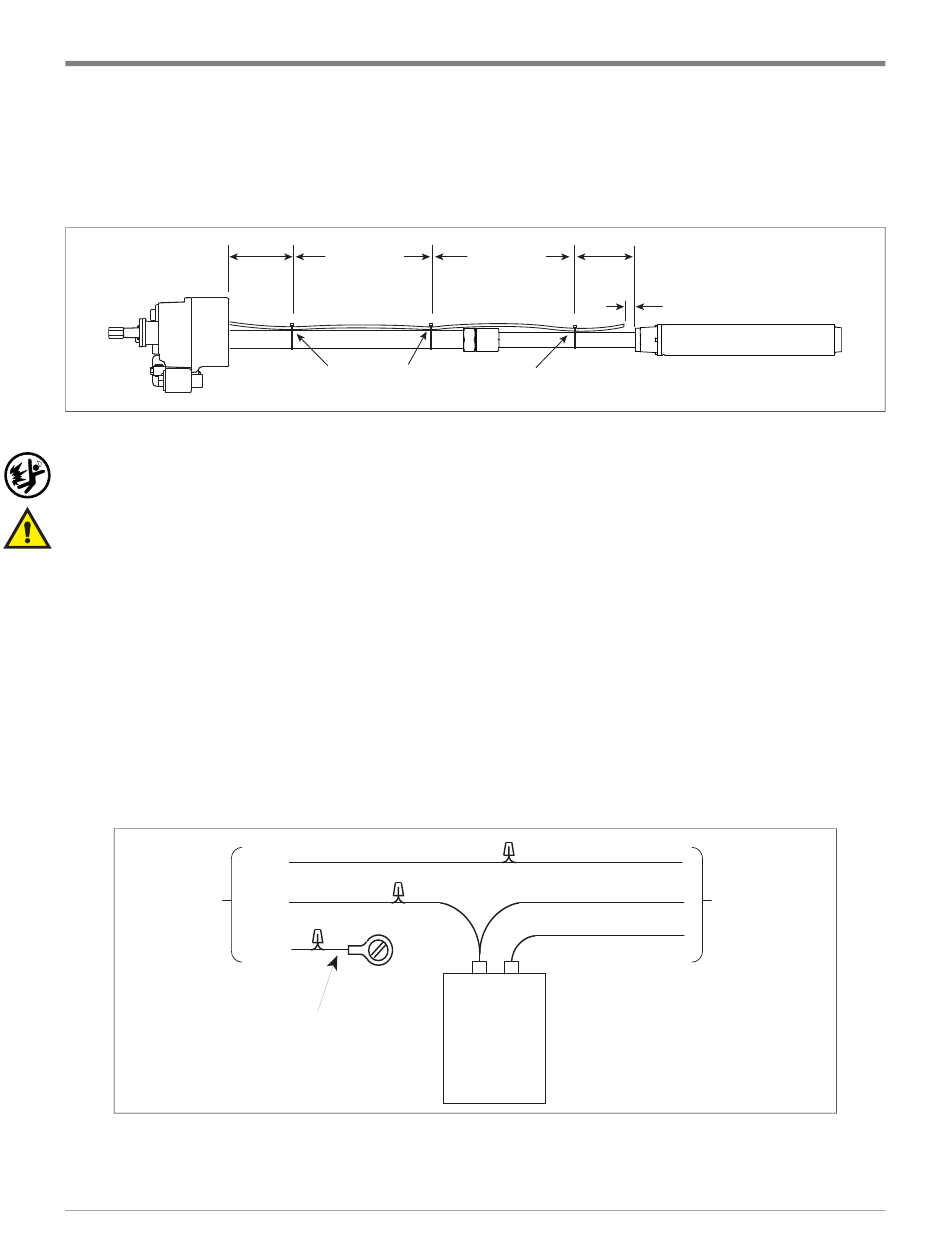

Figure 12. Attaching Return Line Tubing To Pump
M1
M2
GND
Figure 13. Capacitor wiring schematic
6"
1/2 distance
(152mm)
ORANGE
CAPACITOR
17
Installing the Pump
1 - 3" (25 - 76 mm)
rj\153\fig12.eps
From female
BLACK
connector
RED
rj\153\fig13.eps
