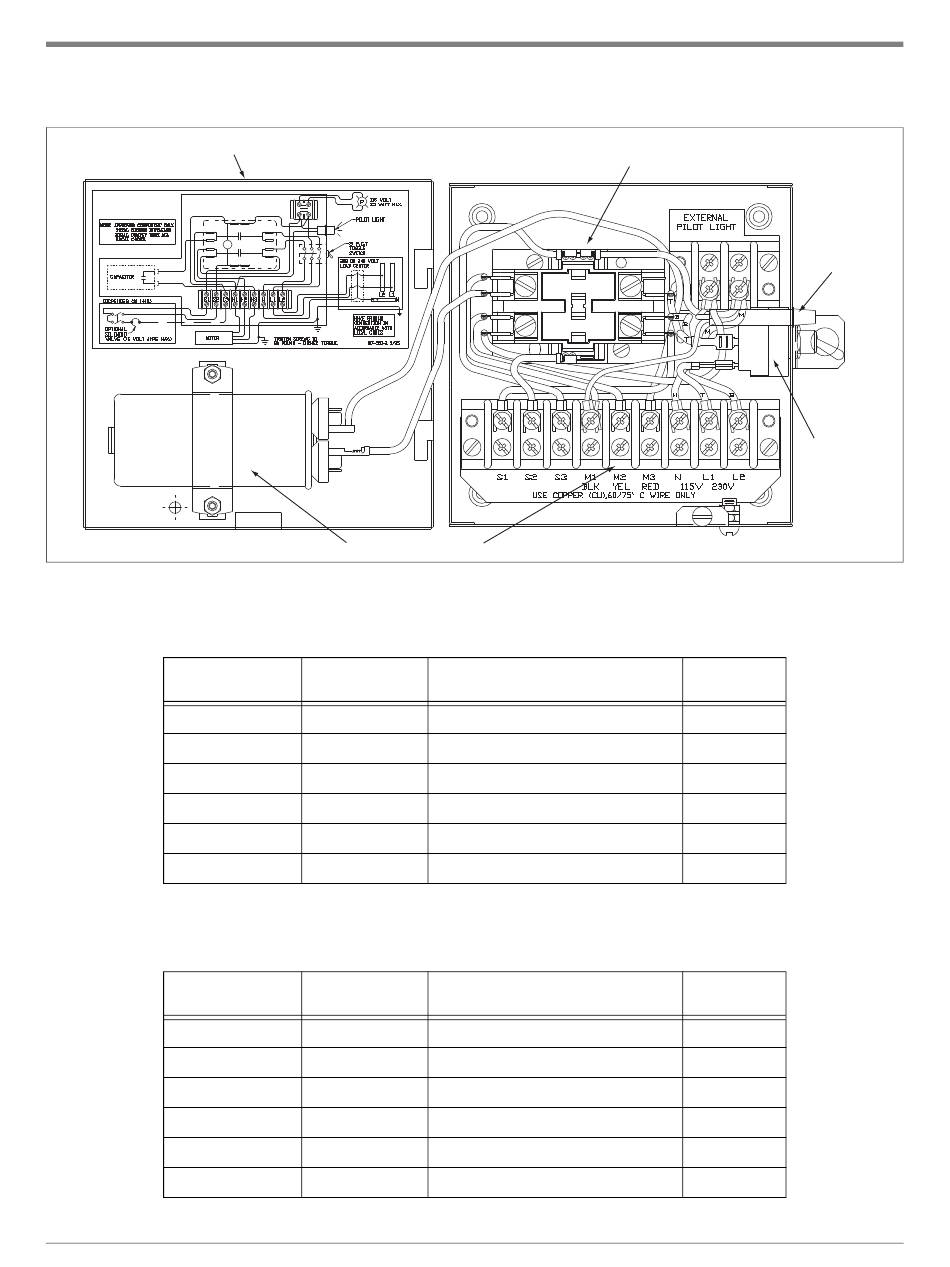

Figure 39. 880-045-5/880-046-5 control box
Table 13.- 880-045-5 1/3 & 3/4 HP Control Box w/Cap (115V Coil)
Part No.
1 123-141-1
2 147-006-1
3 014-723-1
4 080-858-1
5 008-202-1
6 111-092-5
Table 14.- 880-046-5 All 1-1/2 HP Control Box w/Cap (115V Coil)
Part No.
1 123-141-1
2 147-006-1
3 014-723-1
4 080-858-1
5 008-202-1
6 111-661-5
5
Description
Control box
Pilot light ass'y
Line contractor relay
Toggle switch
Terminal block
Capacitor
Description
Control box
Pilot light ass'y
Line contractor relay
Toggle switch
Terminal block
Capacitor
