2.4

Standard Power

2.4.1

Supply Voltage

• 4.75 V – 5.25 V
2.4.2

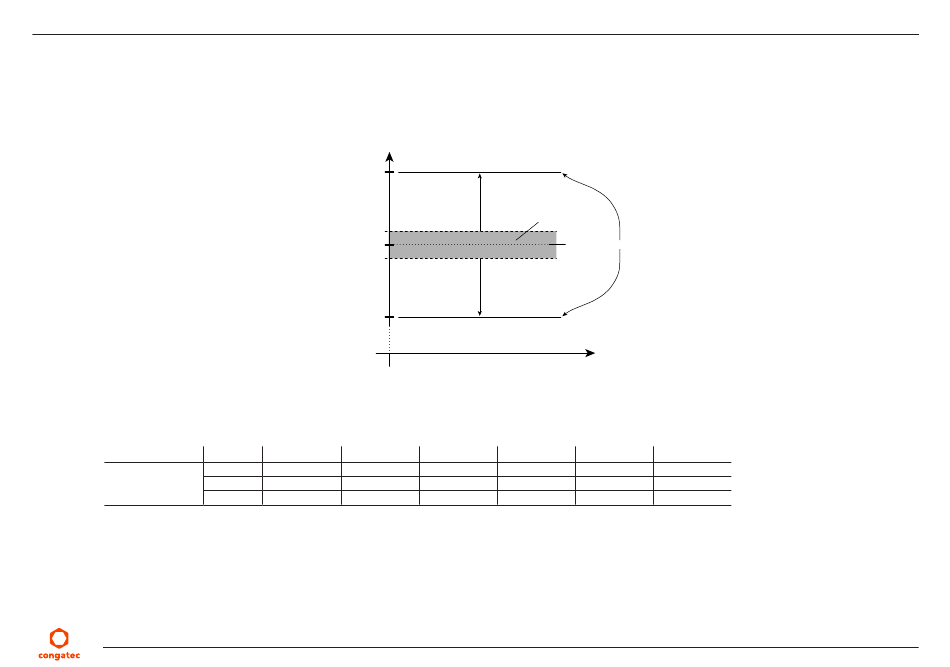

Electrical Characteristics

Characteristics
5V Voltage
Ripple
Current
2.4.3

Rise Time

The input voltages shall rise from 10 percent of nominal to 90 percent of nominal at a minimum slope of 250 V/s. The smooth turn-on requires
that, during the 10 percent to 90 percent portion of the rise time, the slope of the turn-on waveform must be positive.
Copyright © 2020 congatec AG
5.25V
5.05V
5V
4.95V
4.75V
Min. Typ.
± 5% 4.75 5.00
- -
Absolute Maximum
Dynamic Range
Nominal Static Range
Absolute Minimum
Max. Units Comment
5.25 Vdc
± 50 mV 0-20 MHz
PP
