- Page 1 HDMI/ KVM Extender User Manual Model : HKM01E HDMI & USB Keyboard Mouse CAT5e Extender 1080p 150M Smart Cabling & Transmission Corp. V1.0_1904090...
-
Page 2: Installation View

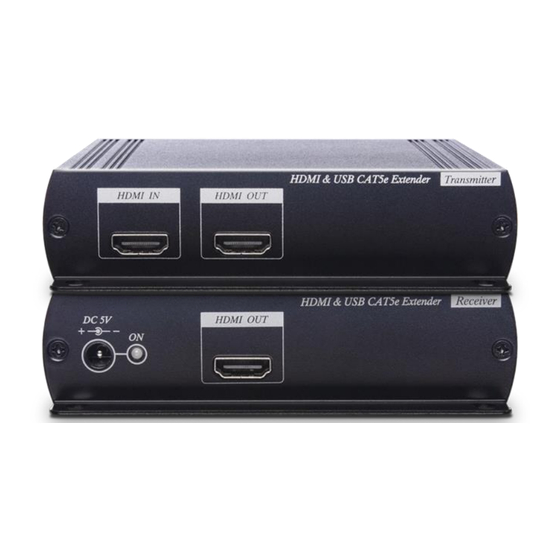

Introduction HKM01E is an HDMI KVM extender that sends HDMI & USB signal over one CAT5e or greater cable. Its TX unit has a local loop out for an extra HDMI monitor. And there are 2 built-in USB ports at the RX unit to connect with one keyboard and one mouse. - Page 3 User Manual HKM01E HDMI over IP Solution: support point to many connections via network switch Panel View HKM01ET HKM01ER LED Indication Status Front Panel Green LED: Power ON/OFF RJ45 LED: Orange Flash: Data transmission Green On: Linking RJ45 Define Link Cable (TIA/EIA-568-B) 1.
- Page 4 User Manual HKM01E Computer IP Address Setting System default IP address is 192.168.168.55 for HKM01ET, 192.168.168.56 HKM01ER (subnet mask 255.255.255.0). Your computer must set in same subnet mask to enter the web setup page. To change the IP address of computer please follow below step: (based on Windows XP): Right click on “My Network Place”...
-
Page 5: Package Include
User Manual HKM01E Resolutions 640x480@60Hz 800x600@60 Hz 1024x768@60 Hz 720x480p@60 Hz 720x576p@50 Hz 1280x720p@60 Hz 1280x720p@50 Hz 1920x1080i@60 Hz 1920x1080i@50 Hz 1920x1080p@60Hz Cable Video Link cable using high quality CAT5e UTP/STP/FTP or CAT6 UTP cable. Caution 1. This device not support wireless and gaming keyboard mouse. -
Page 6: Specification
User Manual HKM01E Specification: ITEM NO. HKM01ET HKM01ER Support Max. Video Resolution 1080p@60Hz Max. Transmission Distance 150M over CAT5e/ CAT6 Ports & Interfaces Video Input 1 x HDMI Type A 1 x RJ45 Video Output 1 x RJ45 1 x HDMI Type A...
