ASSEMBLY INSTRUCTIONS (continued)

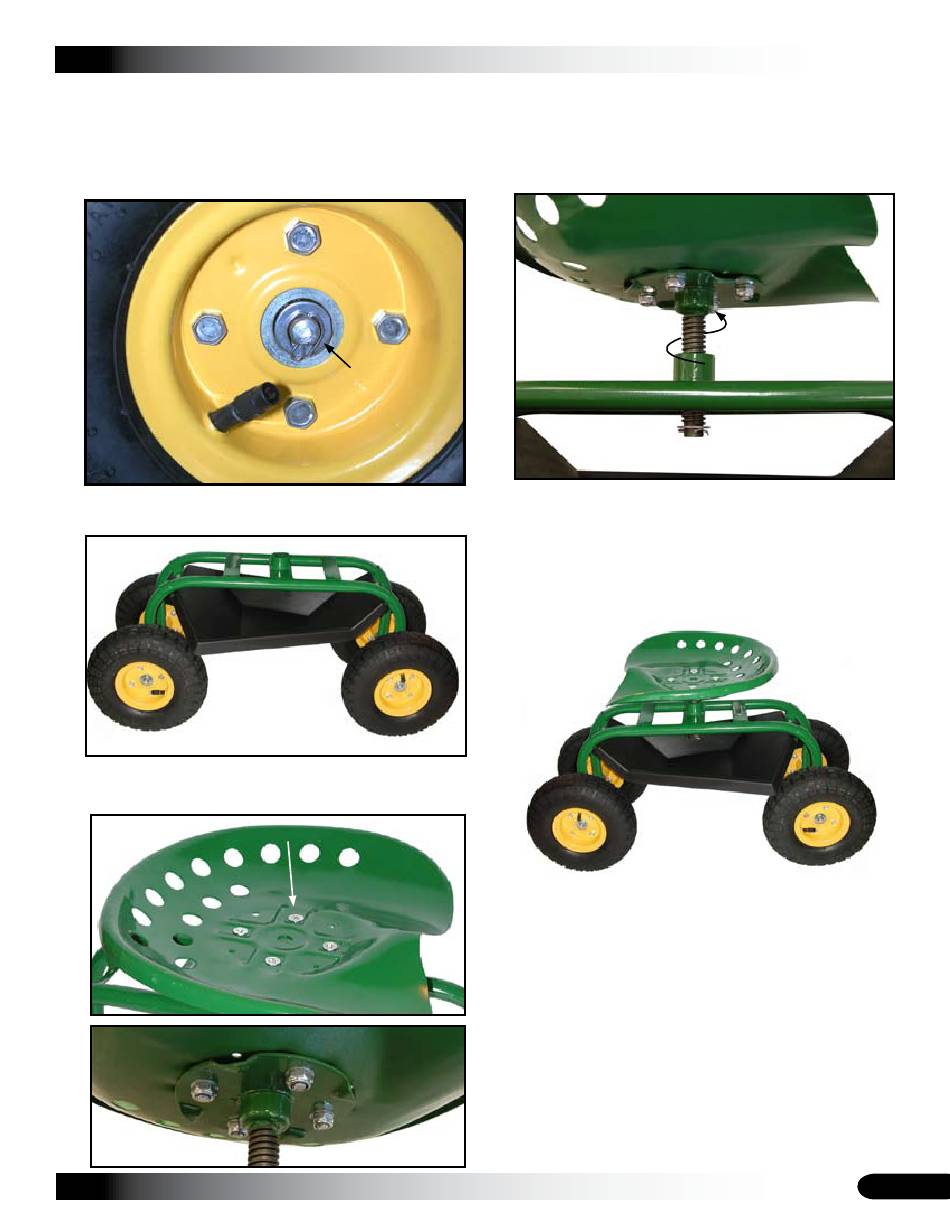

5. Insert a cotter pin into each pre-drilled hole on the
axle. Using a pliers, spread the ends of the cotter pins
and wrap ends tightly around the axles to secure the
wheels.
6. Place work seat frame on the wheels to attach the seat.
7. Attach the seat to the seat post using four (4) 10x15mm
flat head bolts, washers, and nuts.
Revision date: 05.01.12
8. Thread the seat assembly onto the frame in a
clockwise motion until the threaded post can be seen
from under the work seat.
9. Secure the seat to the frame using the large washer
and cotter pin. Using pliers, spread the ends of the
cotter pin to secure the seat.
Seat height can be adjusted by rotating the seat
clockwise or counter-clockwise.

MAINTENANCE

1. Periodically check all connections to ensure safe
operation of work seat.
2. Periodically check air pressure in tires.
overinflate. Ratings are found on tires.
LAWN AND GARDEN
Do not
5
