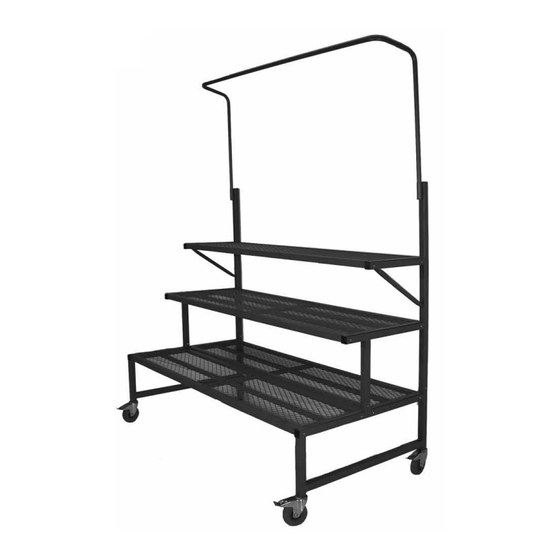

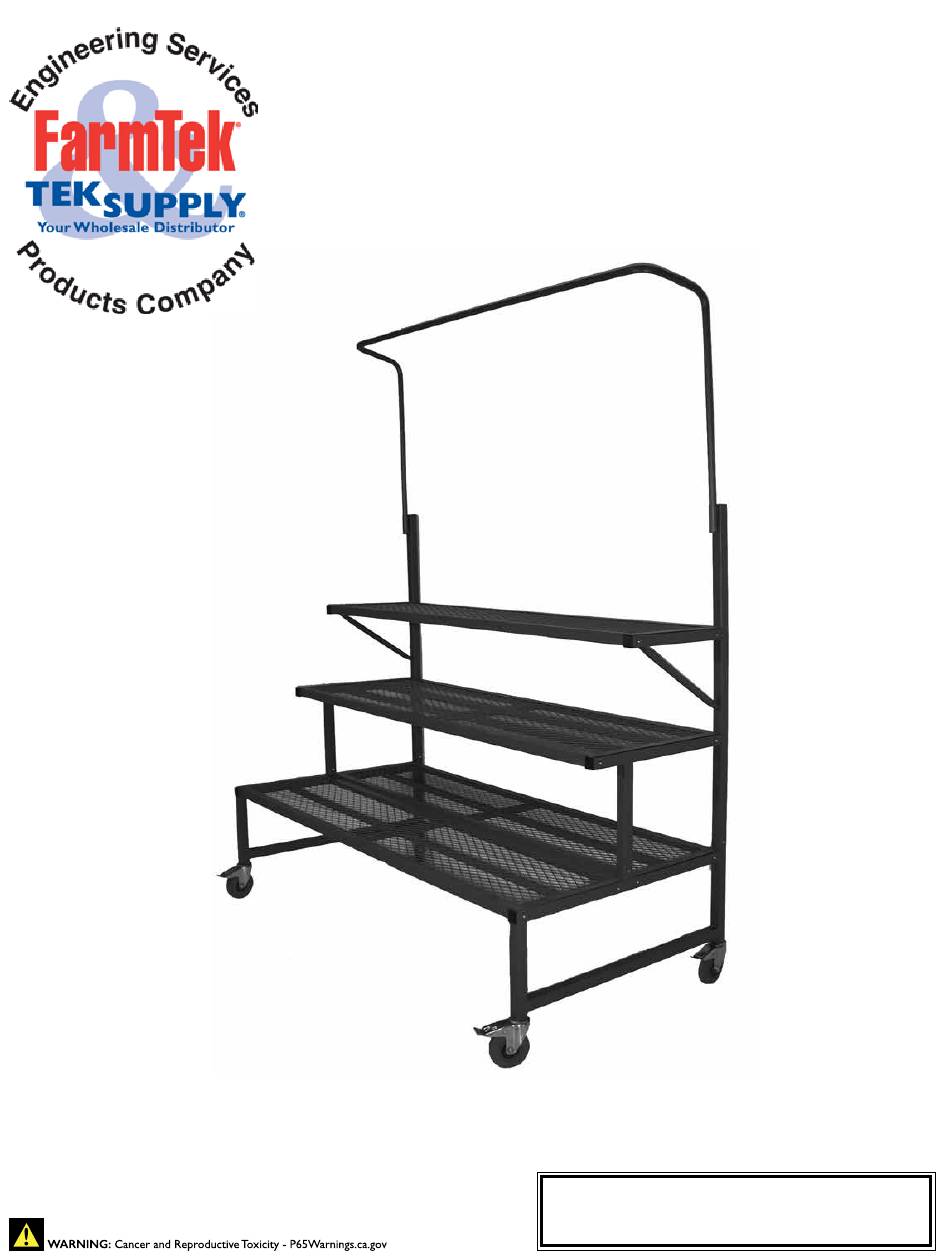

- Page 1 EZ-Grow 3-Level Plant and Display Bench 10712 ©2012 FarmTek ® All Rights Reserved. Reproduction is prohibited STK# DIMENSIONS without permission. 103854 72-1/4” W x 39” D x 94” H...
- Page 2 DISPLAY UNITS REQUIRED TOOLS The following list identifies the main tools needed to assemble the bench. • Flat Head Screwdriver • 10mm Wrench UNPACK AND IDENTIFY PARTS The following steps will ensure that you have all the necessary parts before you begin to assemble the bench. YOU MUST READ THIS DOCUMENT BEFORE YOU BEGIN TO ASSEMBLE THE DISPLAY BENCH.
-
Page 3: Display Units
DISPLAY UNITS The following graphics and photos will help you identify the different parts. Round Head Wheels (4) Bolts (20) Narrow Shelves (3) Wide Shelf (1) Upper End Frames (2) Lower End Frames (2) Purlin Supports (2) Purlin (1) Revision date: 09.04.12... - Page 4 DISPLAY UNITS 2. Insert one (1) round head screw through each hole in the legs of the frame. Position the screw heads to the outside of the frame. Tighten screws securely. ASSEMBLY 1. Stand one (1) lower frame upright. Slide legs of one (1) 3.
- Page 5 DISPLAY UNITS 5. Stand both end frames up as shown. 7. Set one (1) narrow shelf on both frames in the upper position. Insert four (4) round head screws, with their NOTE: A helper is recommended for this step. heads to the outside of the frame, through the frame and shelf.
- Page 6 DISPLAY UNITS 9. Set the last narrow shelf on both frames in the lower 11. Continue pushing purlin support over the purlin until front position. Insert four (4) round head screws, with the lock button pops through the hole in the purlin their heads to the outside of the frame, through the support.
