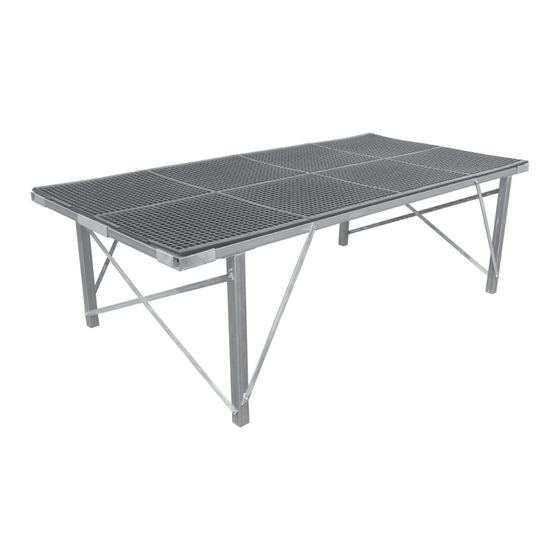

- Page 1 GREENHOUSE BENCH KITS PolyMax® Bench Systems SKU# DIMENSIONS All Rights Reserved. Reproduction is prohibited without permission. 108293 4' W x 8' L (Top only) 108293S 4' W x 8' L x 30" H Revision date: 10.26.21...
-
Page 2: Required Tools
GREENHOUSE BENCH KITS REQUIRED TOOLS The following list identifies the main tools needed to assemble the feed bunk. Additional tools may be needed. • Tape measure or measuring device • Marker READ THIS DOCUMENT BEFORE YOU • Variable speed drill and impact driver (cordless with BEGIN TO ASSEMBLE THE BENCH. - Page 3 GREENHOUSE BENCH KITS The following graphics and photos will help you identify the different parts of the bench. Square Tube SKU# Cut Length Quantity S15P044 1.5" x 1.5" x 44" 104779 1.5" x 1.5" x 96" S15P092 1.5" x 1.5" x 92" 104625 S20P028 2"...
- Page 4 GREENHOUSE BENCH KITS Before assembling the bench, layout and measure the 1.5" x 1.5" square tube lengths to verify that you have all the correct tubes. Gather two (2) 3-Way fittings and one (1) 92" length of square tube. Assemble the center brace as shown below using a Tek screw on the side of the fitting.
- Page 5 GREENHOUSE BENCH KITS Gather two (2) 96" tubes, two (2) 44" tubes, four (4) 2-way corner fittings, and the assembled center brace from Step 1. Slide the 44" tubes through the 3-way fittings first, and then assemble as shown below. Set the outside-to-outside dimensions and measure diagonally to verify that the frame is square.
- Page 6 GREENHOUSE BENCH KITS After securing the 2-way fittings at each corner, center the center brace on the frame. Measure 19-1/8" from each corner to verify the correct placement. Secure the center brace using Tek screws positioned on the inside of the fitting. If you have not already done so, attach the loose end of the main center brace tube using a Tek screw on the side of the 3-way fitting.
- Page 7 GREENHOUSE BENCH KITS ATTENTION: The following steps explain the assembly of the legs of the complete Bench System (#108293S). If you have not ordered the complete Bench System and have only the 108293 bench top, continue with Step 8. Gather four (4) one-way plates (104624). Measure and mark a line 6-1/2"...
- Page 8 GREENHOUSE BENCH KITS Gather four (4) 28" lengths of 2" x 2" tube. Slide a 28" tube over each one-way plate and secure as shown below using one Tek screw per leg. 28" Tube 28" Tube 28" Tube 28" Tube Tek screw Tube fits over the fitting.
- Page 9 GREENHOUSE BENCH KITS Gather four (4) 53" lengths of aluminum strap (112480Z53). Measure 3" from each end of each leg. At these points, secure the aluminum straps to the legs as shown below using Tek screws. ATTENTION: Verify that the legs are straight before attaching the aluminum straps. 3"...
- Page 10 GREENHOUSE BENCH KITS Gather four (4) 29" lengths of aluminum strap (112480Z29). Secure a strap to each corner as shown below using Tek screws. After the aluminum straps are secured, carefully (and with assistance) flip the assembled frame onto its legs.
- Page 11 GREENHOUSE BENCH KITS ATTENTION: The 108293 Bench Top does not include legs as shown below. Legs, bracing, and fittings are included with the 108293S Bench System only. Installation of the PolyMax® panels is the same for both. Gather four (4) PolyMax® (#HA2217) panels for the bench top. Set the PolyMax®...
- Page 12 GREENHOUSE BENCH KITS Bench Frame Dimensions Outside-to-Outside 96-1/2" Outside-to-Outside 30" 48" (108293 only) Revision date: 10.26.21...
- Page 13 GREENHOUSE BENCH KITS Page reserved for customer notes. Revision date: 10.26.21...
