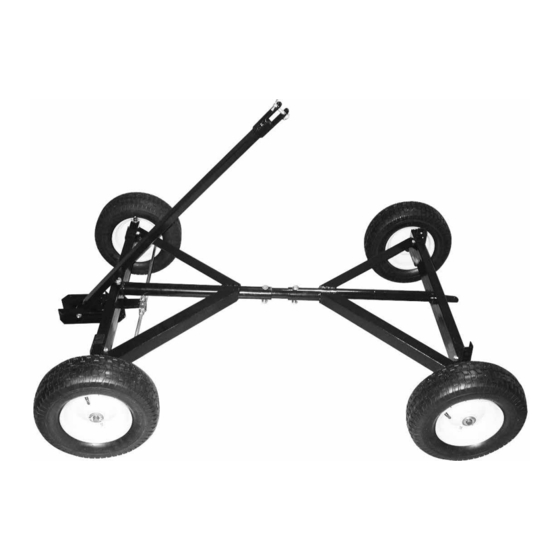

103446 TRAILER FRAME
10712
TOOLS REQUIRED
Flat Head Screwdriver
Two Medium Adjustable Wrenches
(Recommend Two People for Assembly)
If you have any questions or need additional instructions, call 1-800-245-9881 Monday through Friday,
9:00 a.m. to 5:30 p.m. EST. or email
Contactus@FarmTek.com
anytime.
Advertisement
Related Manuals for FarmTek 103446
Summary of Contents for FarmTek 103446

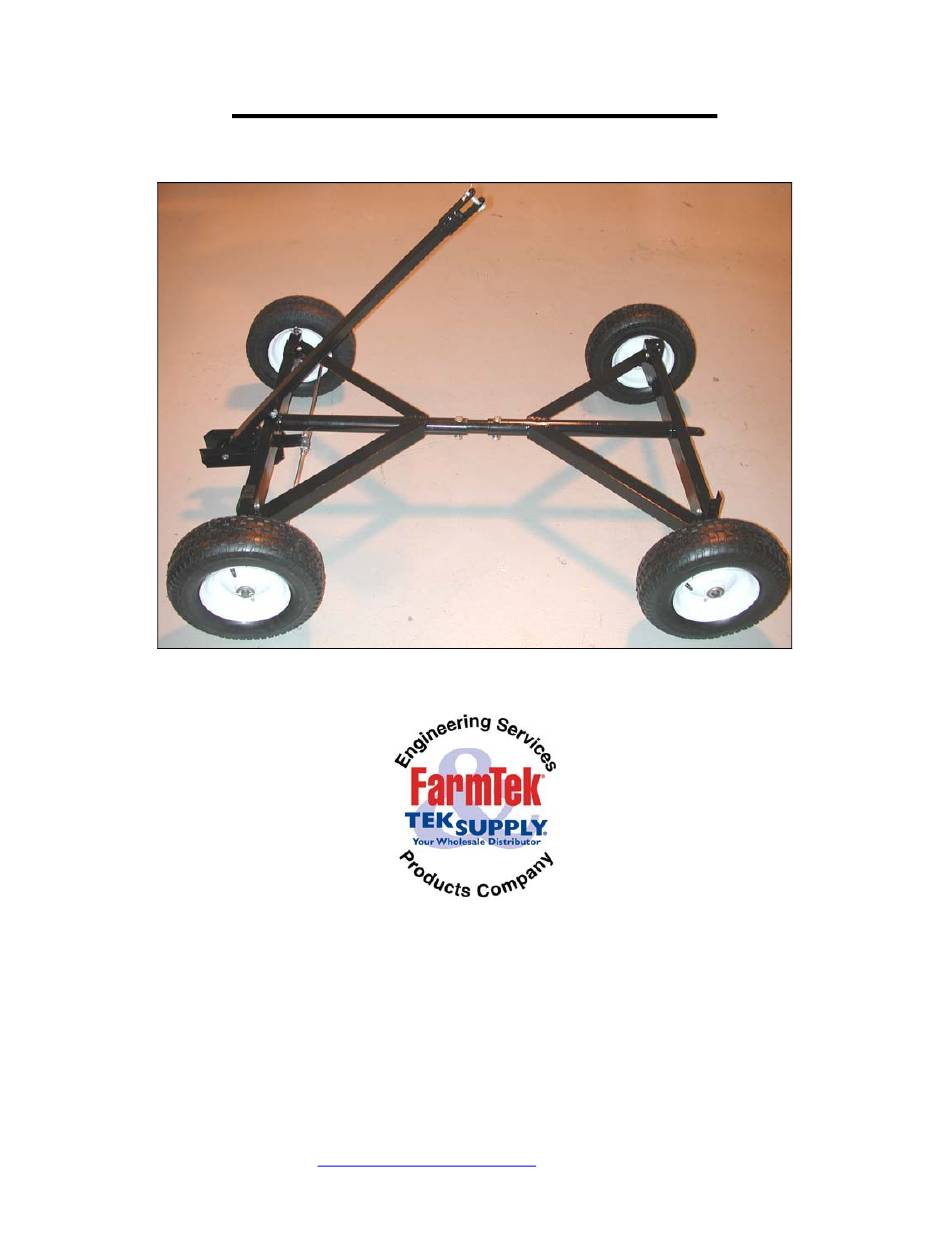

- Page 1 103446 TRAILER FRAME 10712 TOOLS REQUIRED Flat Head Screwdriver Two Medium Adjustable Wrenches (Recommend Two People for Assembly) If you have any questions or need additional instructions, call 1-800-245-9881 Monday through Friday, 9:00 a.m. to 5:30 p.m. EST. or email Contactus@FarmTek.com...
- Page 2 PARTS LIST (4) WHEEL (1) TONGUE (1) BACK AXLE (1) FRAME ADAPTOR (1) FRONT AXLE (4) LARGE (4) COTTER (1) COTTER (1) HITCH (4) TONGUE WASHER WASHER (3) WASHER (1) SPACER (1) TONGUE (1) 12x80mm (4) HEX (2) 12x70mm BOLT BOLT BOLT...
- Page 3 ASSEMBLY Remove parts from box and identify items. DO NOT TIGHTEN NUTS AND BOLTS UNTIL END STEP 1: Remove Tongue Bolt, Lock Nut, Tongue Washers, and Spacer from the center of the Front Axle. Align hole in center of axle with hole in center of the Tongue Attachment. Insert Spacer in between the Tongue Yoke and Axle Frame.
- Page 4 STEP 4: Position both Front and Back Axles as shown below and insert Frame Adapter into ends of both Axles. Slide in until you align holes of Frame Adapter with the holes of the Axles. Secure in place using 12x70mm Bolt, Washer, and Lock Nut. Install Bolts from the bottom. NOTE: There are 2 sets of holes on the Frame Adapter.
