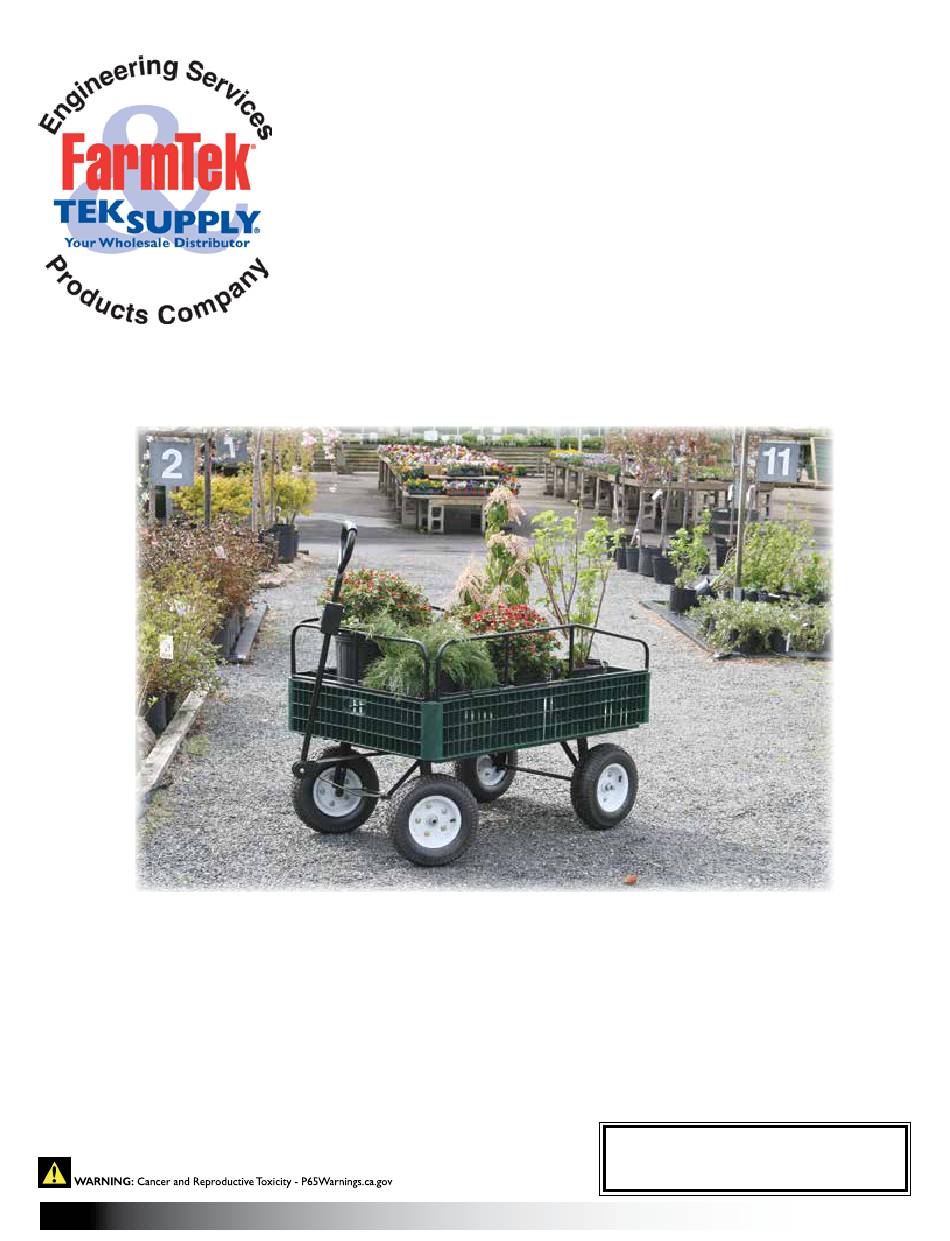

- Page 1 CARTS AND WAGONS 109912 EZ-HAUL GARDEN CRATE WAGON 12855 ©2010 FarmTek ® All Rights Reserved. Reproduction is prohibited without permission. STK# Description 109912 Garden Wagon Revision date: 09.03.10...
-
Page 2: Care And Maintenance
CARTS AND WAGONS CARE AND MAINTENANCE • Periodically check nuts and bolts to make sure they are tight and secure. • Clean the wagon using water and mild soap. Rinse with water sprayed from a garden hose. (Tip the bed to let water drain out after washing.) •... - Page 3 CARTS AND WAGONS ASSEMBLE FRONT AXLE AND ATTACH TO WAGON BED The following steps show how to assemble the front axle. 1. Take the front axle and the tie bar and connect them using two (2) short hex head bolts, locknuts, and flat washers. Position the tie bar on top of each front axle link, insert each bolt through the tie bar and through the axle link, and add the washer...
- Page 4 CARTS AND WAGONS ASSEMBLE FRONT AXLE AND ATTACH TO WAGON BED (continued) 7. Tighten the bolt. Do not overtighten. Linkage must remain free so wagon can turn. Align final mounting hole in axle bar with the mounting hole in the steering yoke. 8.
- Page 5 CARTS AND WAGONS Insert two pan head bolts, add locknuts ATTACH FRONT AXLE TO WAGON BED and washers, and tighten. 1. Position the wagon bed on a flat surface so both To prevent damage the bottom and inside can be accessed. With to the wagon bed, assistance, place the axle assembly on the wagon do not overtighten.
- Page 6 CARTS AND WAGONS ATTACH REAR AXLE AND BRACES TO WAGON BED 1. With assistance, place the wagon bed in a position that allows access to the bottom and inside. Take the rear axle, align its mounting holes with the mounting holes of the bed and insert the two pan head bolts.
- Page 7 CARTS AND WAGONS ATTACH ADJUSTABLE HANDLE 1. Take the handle and coupler, determine the desired handle position, and align the mounting holes of the two components. 2. Slide the handle and coupler into the steering yoke, align the holes of all components, and insert the long hex head bolt through the holes.
- Page 8 CARTS AND WAGONS ATTACH WHEELS 1. Remove the front axle wheel nuts and washers* and set them aside. Take one wheel, position the valve stem to the outside, and slide the wheel onto the axle. 2. Slide one flat washer over the axle. 3.
- Page 9 CARTS AND WAGONS INSTALL WAGON BED RAILS AND BASKET 1. With assistance, set the assembled wagon on its wheels. 2. Using the holes at the corners of the wagon Photo above shows how basket handle bed as guides, install the bed rails. Rails hooks over the lower brace of the side rail.
- Page 10 CARTS AND WAGONS CONVERT HANDLE TO HITCH 1. Remove clip and hitch pin. Use a pliers to grip the clip if needed. 2. Separate handle from wagon tongue and store handle. 3. Use hitch pin and clip to attach wagon to lawn tractor.
- Page 11 CARTS AND WAGONS Space reserved for customer notes. Revision date: 09.03.10...
