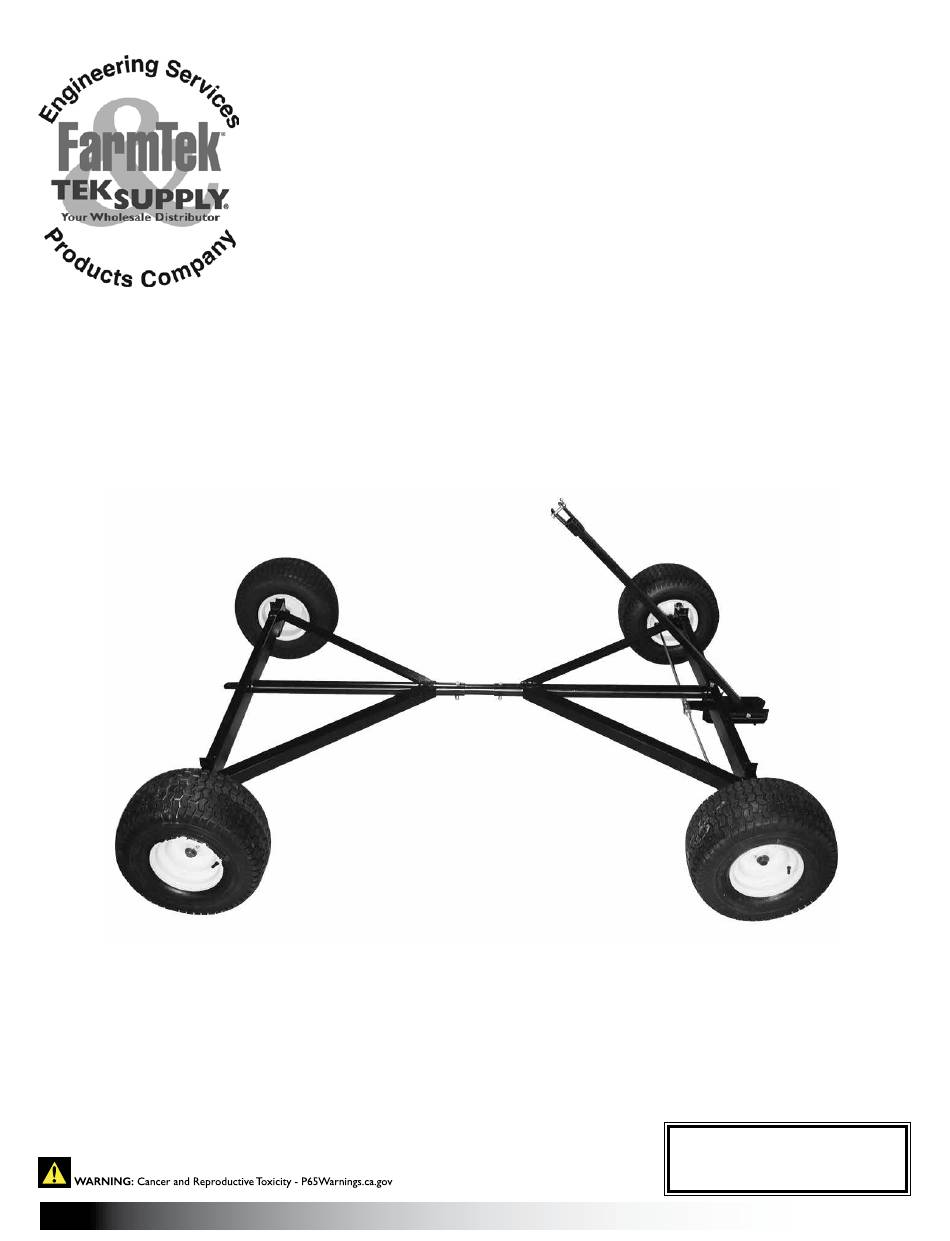

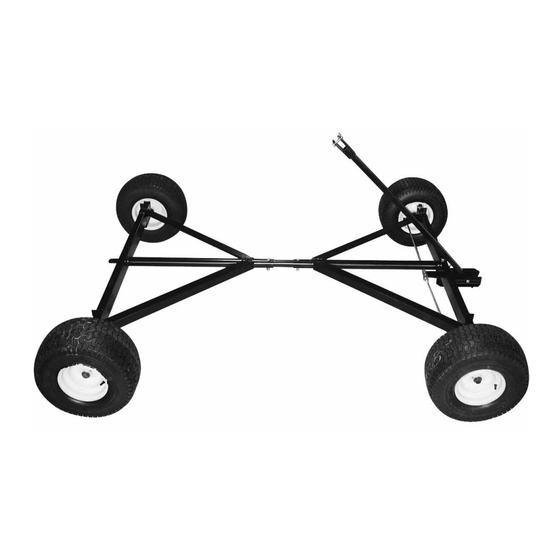

- Page 1 CARTS AND WAGONS 103865 EZ-Haul Utility Wagon w/ Trailer Hitch 10712 ©2009 FarmTek ® All Rights Reserved. Reproduction is prohibited without permission. STK# Description 103865 Utility Wagon Revision date: 08.20.09...
-
Page 2: Care And Maintenance
CARTS AND WAGONS CARE AND MAINTENANCE • Periodically check all fasteners to assure they are tight. • Clean the wagon using water and mild soap. Rinse with water sprayed from a garden hose. • Check the tire pressure and adjust to recommended pressure if needed. - Page 3 CARTS AND WAGONS FRONT AND REAR AXLE ASSEMBLY To better align the wagon, do not fully tighten the nuts and bolts until the entire wagon is assembled. 1. Remove tongue bolt, lock nut, tongue washers, and spacer from the center of the front axle.
- Page 4 CARTS AND WAGONS CONNECT AXLES AND ATTACH TONGUE 12x70mm bolts, NOTE: Hardware may ship attached to parts. washers,and Front Axle Back Axle 1. Position front and back axles as shown and insert the lock nuts frame adaptor into the slots in both axles. Align the holes and secure using 12x70mm bolts, washers and lock nuts.
- Page 5 CARTS AND WAGONS Space below is reserved for customer notes. Revision date: 08.20.09...
