2.5. Mounting Instructions

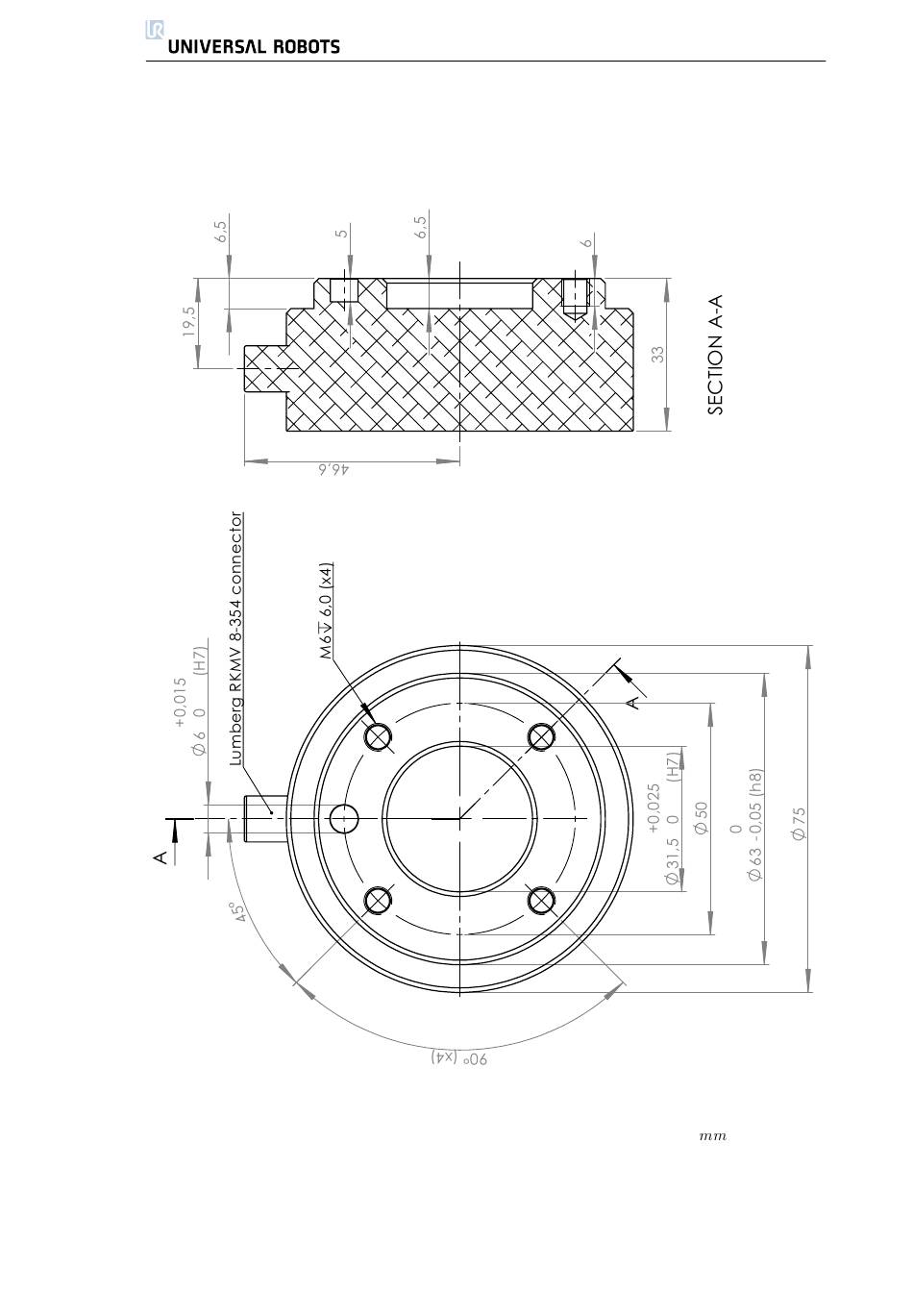

Figure 2.4: The tool output flange, ISO 9409-1-50-4-M6. This is where the tool
is mounted at the tip of the robot. All measures are in
.
22
UR5
All Rights Reserved
