Maytag Amana MES9 Series Installation Instructions Manual page 30

Single-stage gas furnace, type fsp category iv direct or non direct vent air furnace
Hide thumbs

Advertisement

Alternate
Manifold
Gas Line
Location
Gas Valve
*Ground
Joint
Pipe
Union
*NOTE: Union may be inside furnace cabinet where allowed by local codes.
Manual Shut Off Valve
(upstream from ground joint pipe union)
*Ground
Joint
Pipe Union
Grommet
in Standard
Gas Line
Hole
Drip Leg
*NOTE: Union may be inside furnace cabinet where allowed by local codes.
COUNTERFLOW
Manual Shut Off Valve
Burners
(upstream from
ground joint
pipe union)
*Ground
Joint
Pipe
Union
Drip Leg
Grommet
in Standard
Gas Line
Hole
UPFLOW

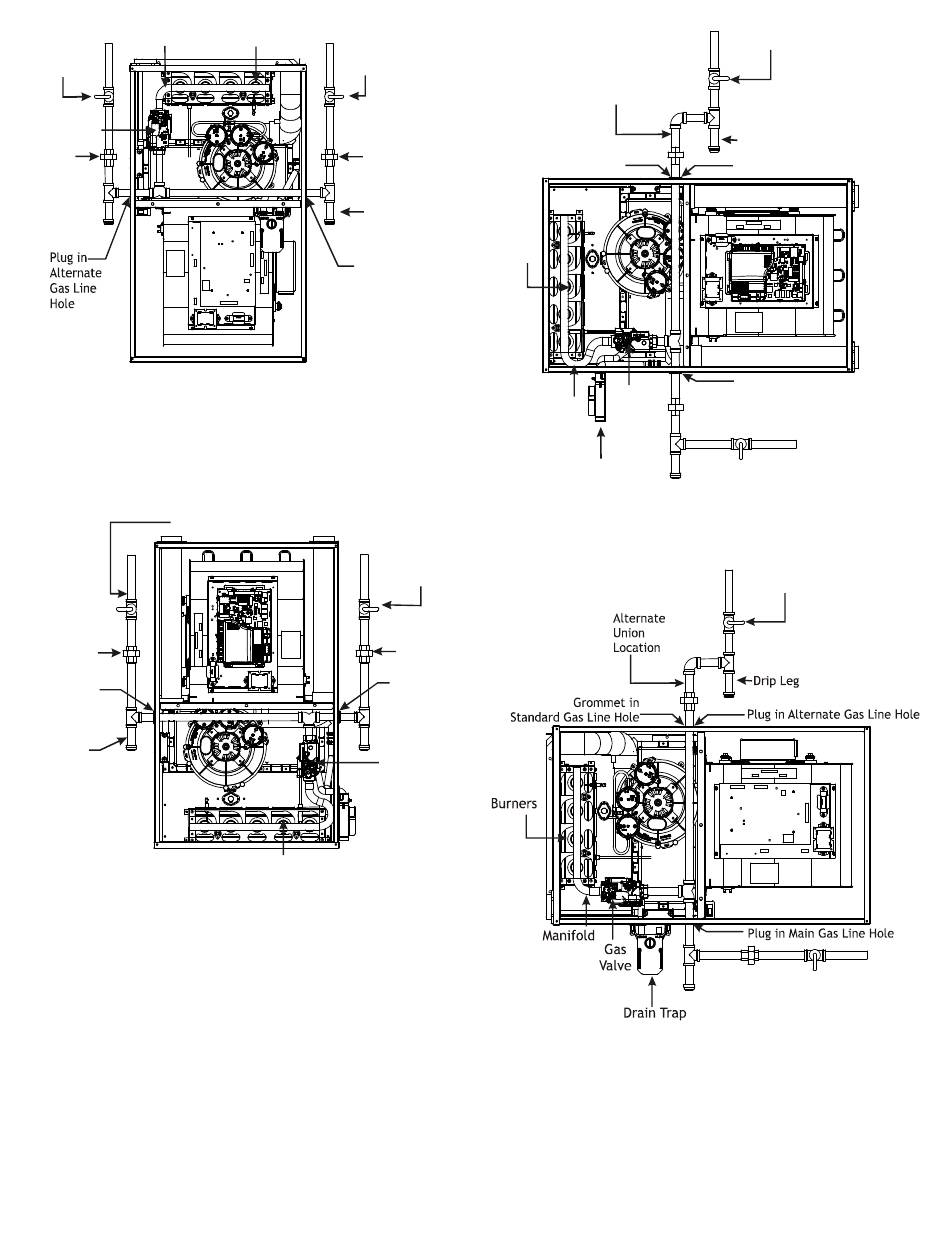

Figure 32
Plug in
Alternate
Gas Line
Hole
Gas Valve
Burners
Figure 33
Grommet in
Standard Gas Line Hole
Burners
Manifold
Drain Trap
Alternate
Gas Line
Location
*Ground
Joint
Pipe Union
Gas Piping Checks
Before placing unit in operation, leak test the unit and gas
connections.
30
Manual Shut Off Valve
Alternate
Union
Location
Drip Leg
Plug in Alternate Gas Line Hole
Plug in Main Gas Line Hole
Gas
Valve
UPFLOW - HORIZONTAL LEFT
Figure 34
Manual Shut Off Valve
COUNTERFLOW - HORIZONTAL RIGHT
Figure 35
(upstream from
ground joint pipe union)
(upstream from
ground joint
pipe union)
