Heating Input: 60,000-100,000 BTU/h
Standard Features
• Integrated communicating ComfortBridge™ technology
• Two-stage gas valve provides quiet,
economical heating
• Commissioning and diagnostics via on board
Bluetooth with the CoolCloud™ phone and
tablet application
• Efficient and quiet variable-speed ECM
circulator motor gently ramps up or down
according to heating or cooling demand
• SureStart® Silicon Nitride igniter
designed for long igniter life
• Self-diagnostic control board with constant memory
fault code history output to a triple 7-segment display
• Low constant fan speed circulates air
throughout the home
• Quiet, two-speed induced draft blower
• California Low NOx emissions-compliant
models available
• Can no longer be installed in California's
South Coast Air Quality Management District
(SCAQMD) on or after October 1, 2019.
• AHRI Certified; ETL Listed
SS-AMVC8
Amana® is a trademark of Maytag Corporation or its related companies and used under license to Goodman Company, L.P., Houston, Texas.

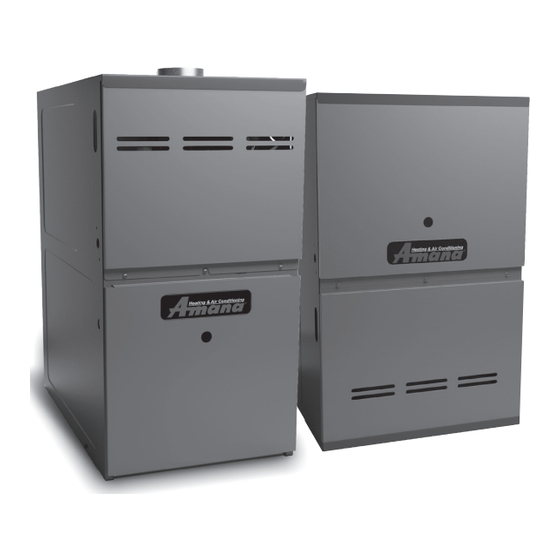

AMVC8 (C) / ACVC8 (C)
Two-Stage, Variable-Speed
Cabinet Features
• Fully insulated, heavy-gauge steel cabinet
with durable baked-enamel finish
• Multi-position installation:
AMVC8: upflow, horizontal left or right
ACVC8: downflow, horizontal left or right
• Removable bottom for side- or
bottom-return applications
• Convenient left or right connection
for gas/electric service
• Cabinet air leakage ≤ 2%
• Coil and furnace fit flush
for most installations
* Complete warranty details available from your local dealer or at www.amana-hac.com. To receive the
Lifetime Unit Replacement Limited Warranty (good for as long as you own your home) and 10-Year Parts
Limited Warranty, online registration must be completed within 60 days of installation. Online registration
is not required in California or Quebec.
www.amana-hac.com
ECM Gas Furnace
80% AFUE
Contents
Nomenclature ........................................ 2
Product Specifications ........................... 3
Dimensions ............................................ 5
Airflow Data ........................................... 7
Accessories ............................................ 8
Wiring Diagram ................................... 10
10/19
Supersedes 6/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Amana AMVC8 and is the answer not in the manual?

Questions and answers

Summary of Contents for Maytag Amana AMVC8

  • Page 1: Table Of Contents

    Limited Warranty, online registration must be completed within 60 days of installation. Online registration is not required in California or Quebec. SS-AMVC8 www.amana-hac.com 10/19 Amana® is a trademark of Maytag Corporation or its related companies and used under license to Goodman Company, L.P., Houston, Texas. Supersedes 6/19...
  • Page 2: Nomenclature

    Nomenclature 7,8,9 13,14 Brand Engineering A - Amana® Brand Major /Minor Revisions * Not used for inventory control. Configuration M - Upflow/Horizontal N - Natural Gas C - Downflow/Horizontal X - Low NOx Motor Cabinet Width V - Variable Speed ECM / ComfortBridge™ A - 14"...
  • Page 3: Product Specifications

    Product Specifications AMVC8 AMVC8 AMVC8 AMVC8 AMVC8 AMVC8 AMVC8 0603B*C 0604B*C 0803B*C 0804C*C 0805C*C 0805D*C 1005C*C Heating Capacity High Fire Input (BTU/h)¹ 60,000 60,000 80,000 80,000 80,000 80,000 100,000 High Fire Output (BTU/h)¹ Natural Gas 48,000 48,000 64,000 64,000 64,000 64,000 80,000 LP Gas...
  • Page 4 Product Specifications ACVC8 ACVC8 ACVC8 ACVC8 0603B*C 0803B*C 0805C*C 1005C*C Heating Capacity High Fire Input (BTU/h)¹ 60,000 80,000 80,000 100,000 High Fire Output (BTU/h)¹ Natural Gas 48,000 64,000 64,000 80,000 LP Gas 48,000 64,000 64,000 80,000 Low Fire Input (BTU/h)¹ 42,000 56,000 56,000...
  • Page 5: Dimensions

    AMVC8 Dimensions Alternate Gas Inlet Alt. Flue Outlet — Horizontal Left 1¾” 1 ⁄ ” 19½” ➤ 33⅜” Alt. Gas Inlet 27⅞” 20” 23 ⁄ ” Alt. High Voltage High-Voltage Inlet 13¼” 15” Low-Voltage Inlet Alt. Low Voltage 23” ➤ 28”...
  • Page 6 ACVC8 Dimensions ” ⅝” High-Voltage Electrical Low-Voltage Electrical ⅜” Gas Inlet ⅜” ⅜” Dimensions Widths Model ACVC80603B** 17½” 28” 33⅜" 17½” 16” ACVC80803B** 17½” 28” 33⅜" 17½” 16” ACVC80805C** 21” 28” 33⅜" 21” 19½” ACVC81005C** 21” 28” 33⅜" 21” 19½” Minimum Clearances to Combustible Materials Vent ²...
  • Page 7: Airflow Data

    Airflow Data MODEL/TEMP RISE RANGE ACVC80603BXC* ACVC80603BXC* ACVC80805CXC* ACVC81005CXC* AMVC80603B*C* AMVC80604B*C* (MID RISE) 25-55 (40) 30-60 (45) 25-55 (40) 20-50 (35) 15-45 (30) 20-50 (35) RISE RISE RISE RISE RISE RISE Recommended cfm for high heat / 1100 1325 1470 2090 1400 1275...
  • Page 8: Accessories

    Airflow Data (Contd.) ACVC Continuous Fan Speeds Furnace Continuous Model Maximum CFM Fan Speed ACVC80603BXBX 1,400 350-1,400 ACVC80803BXBX 1,400 350-1,400 ACVC80805CXBX 2,200 550-2,200 ACVC81005CXBX 2,200 550-2,200 ACVC8 Minimum Filter Sizes Model # ACVC80603BX, ACVC80803BX ACVC80805CX ACVC81005CX Filter Size (in²) (2) 10 x 20 or (1) 16 x 25 (Top Return) (2) 14 x 20 or (1) 20 x 25 (Top Return) Note: Other size filters of equal or greater surface area may be used;...
  • Page 9 Temperature Rise Range Chart SS-AMVC8 www.amana-hac.com...
  • Page 10: Wiring Diagram

    BLACK Amana® is a trademark of Maytag Corporation or its related companies and used under license to Goodman Company, L.P. All rights reserved. Our continuing commitment to quality products may mean a change in specifications without notice. © 2019 Goodman Company, L.P. • Houston, Texas • Printed in the USA.
