115 Volt Line Voltage Connection of Accesso-
ries (Humidifier and Electronic Air Cleaner)
The furnace integrated control module is equipped with line
voltage accessory terminals for controlling power to an optional
field-supplied humidifier and/or electronic air cleaner.
Turn OFF power to the furnace before installing any accessories.
Follow the humidifier or air cleaner manufacturers' instructions
for locating, mounting, grounding, and controlling these acces-
sories. Accessory wiring connections are to be made through the
1/4" quick connect terminals provided on the furnace integrated
control module. The humidifier hot terminal is identified
as 120V HUM-H, its neutral terminal is identified as 120V
HUM-N. The electronic air cleaner hot terminal is identified
as EAC-H, its neutral terminal is identified as 120V EAC-N.
All field wiring must conform to applicable codes. Connections
should be made as shown. (See Figure 30.)
If it is necessary for the installer to supply additional line
voltage wiring to the inside of the furnace, the wiring must
conform to all local codes, and have a minimum tempera-
ture rating of 105°C. All line voltage wire splices must be
made inside the furnace junction box.
The integrated control module humidifier terminal 120V
HUM-H is energized with 115 volts whenever the induced
draft blower is energized. This terminal can also be used
to provide 115 volt power to a humidifier transformer. The
remaining primary transformer wire would be connected
to the Line N on the control board. The integrated control
WARNING
. U
SE GLOVES AS A
.
WARNING
WARNING
,
ELECTRICAL SHOCK OR
WARNING
,
,
ELECTRICAL SHOCK OR DEATH
,
WITH THE LATEST EDITION OF THE
module electronic air cleaner terminals EAC-H is energized
with 115 volts whenever the circulator blower is energized.
NOTE: Wire routing must not to interfere with circulator
blower operation, filter removal, or routine maintenance.
,
115 VAC HUM
115 VAC EAC
THE
Connection of 24 Volt Humidifier
The integrated control module single humidifier terminal
"24 VHUM" is energized with 24 volts whenever the induced
draft blower is energized. Connect the common side of the
24 volt humidifier to the "C" terminal of the thermostat
terminal strip on the control board.

Junction Box Relocation

Line voltage connections can be made through either
the right or left side panel. The furnace is shipped con-
figured for a left side electrical connection. To make
electrical connections through the opposite side of the
furnace, the junction box must be relocated to the left
side prior to making electrical connections. To relo-
cate the junction box, perform the following steps.
1. Remove the burner compartment door.
2. Remove and save the two screws securing the junction
box to the side panel.
26

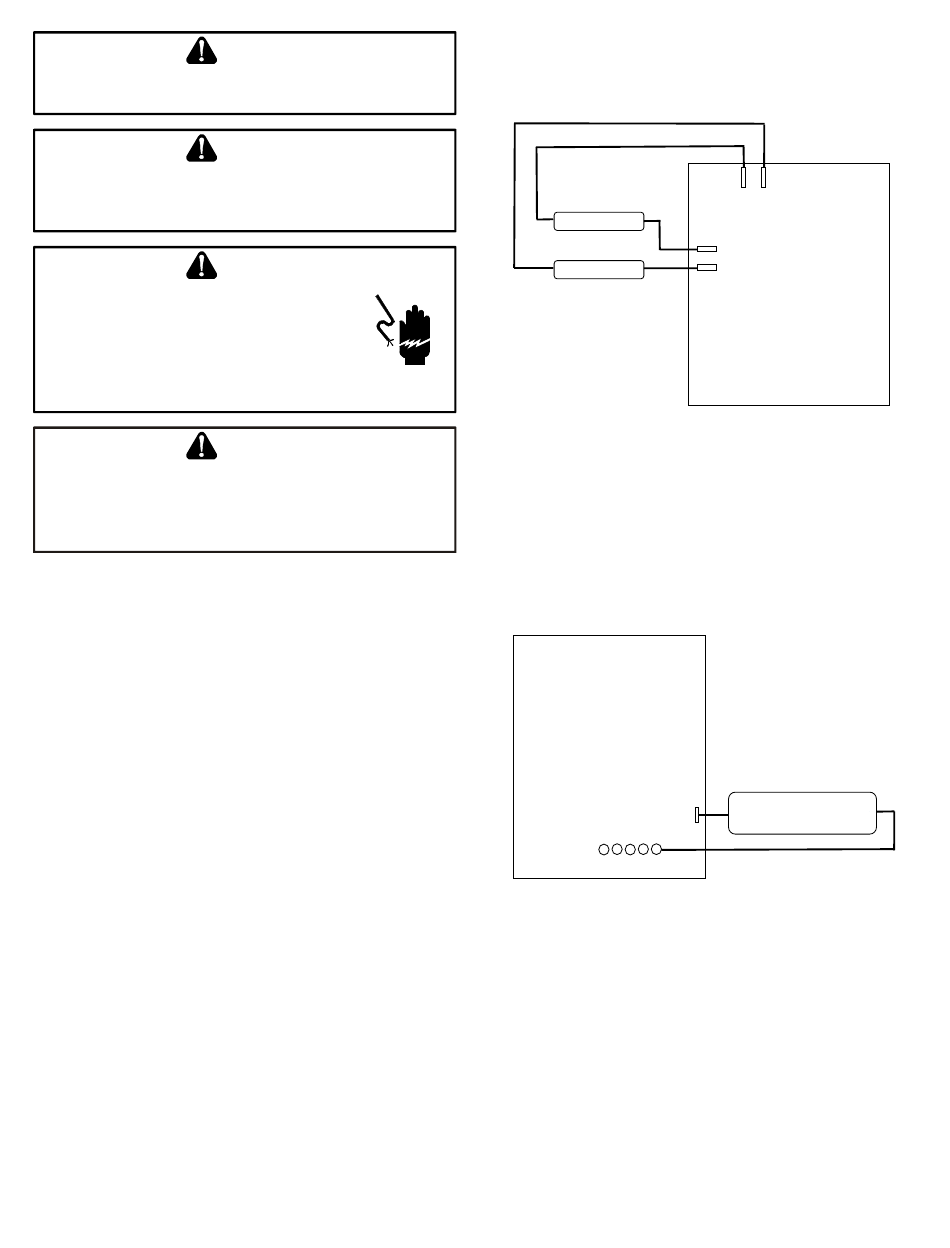

120 HUM-H
120V HUM-N
EAC-N
PCBBF145
CONTROL BOARD
FIG 30
PCBBF145
24 VOLT HUM. &
24VHUM
HUMIDISTAT
Y/Y2 W R G C
FIG 30A
EAC-H
