SC&T HE02P Quick Start Manual page 3

HDBaseT Port Status LED :
Color LED Function
Green HDBaseT Linking
Blue Reserve
Red HDMI
10/100 Ethernet Port :
Color LED Function
Green Ethernet Linking
Yellow Reserve
Low-power Mode:
When there is no HDMI video signal input, or TV is not connected or power off, this product will enter a
low-power mode to save power consumption of, Under a low power mode still provides Ethernet,
RS-232, IR, CEC of signal transmission.
Caution:
1. The wiring must away from any equipment with electromagnetic wave, i.e.: mobile phone,
microwave, radio equipment, fluorescent lamp, high voltage power lines.
2. This device HDBaseT port is not general Ethernet signal which also carry power, do not connect
with Network to avoid damage.
3. IR transmitter do not put near from receiver to avoid mutual interference.

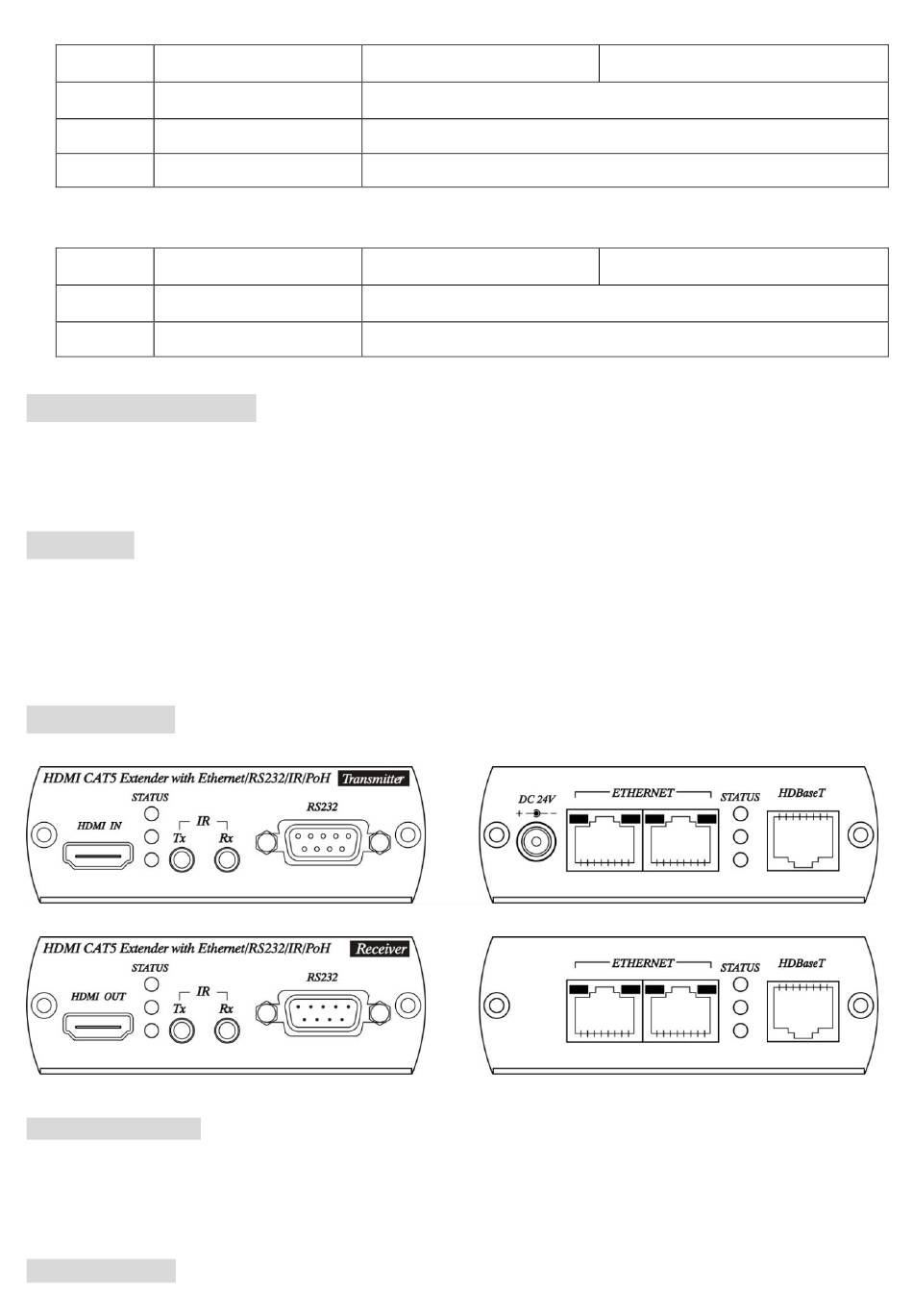

Panel view:
HE02PT
HE02PR
Package Include:
Transmitter x 1 piece
Receiver x 1 piece
Power adapter DC24V 1AMP x 1 piece
IR Emitter cable x 2 pieces
IR Receiver cable x 2 pieces
Specification:
HE02PT
On: HDBaseT Linking , Flash: Low Power Mode
No Function
On: With HDCP , Flash: Without HDCP , Off: HDMI Unlink
HE02PT
On: Linking , Flash: Data Transmission
No Function
HE02PR
HE02PR
3
