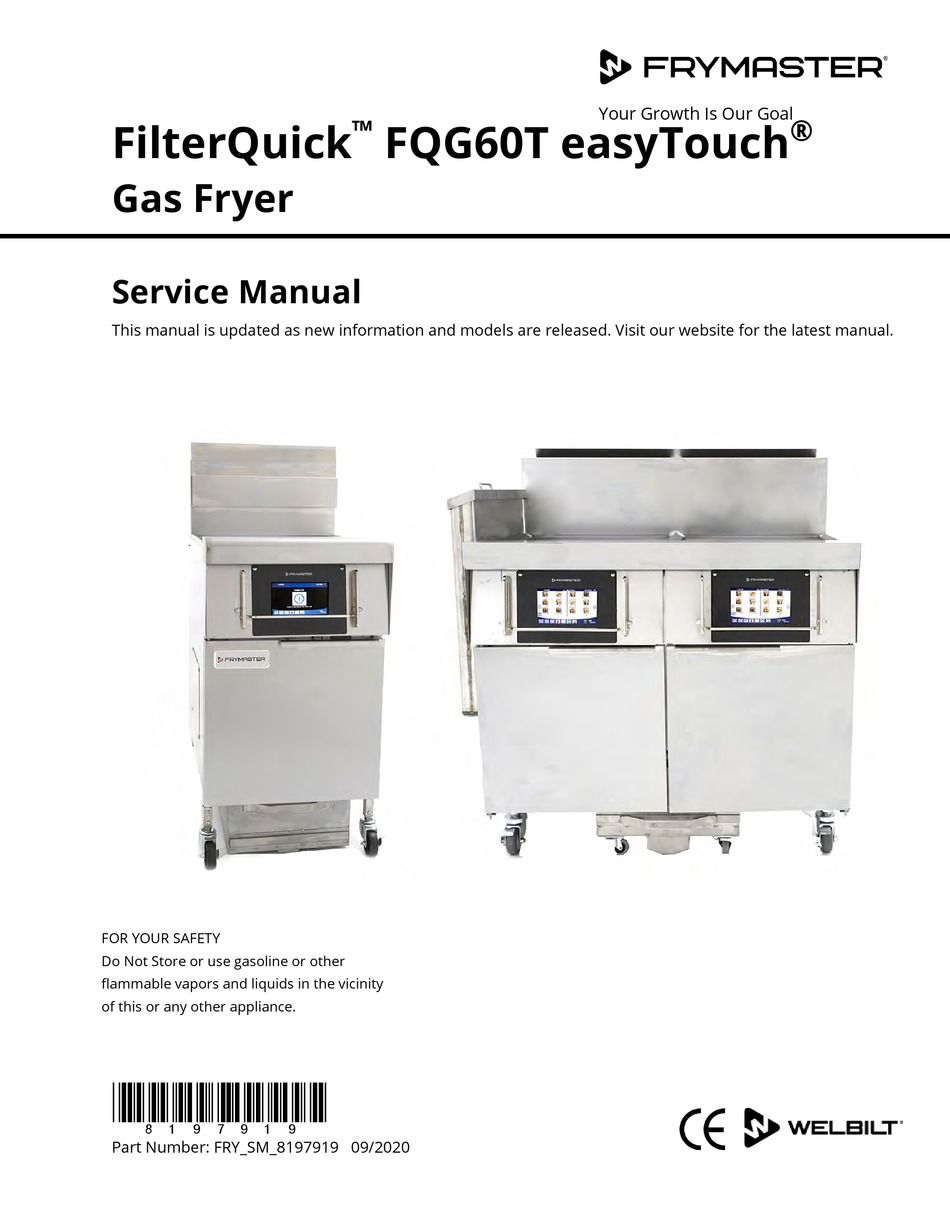

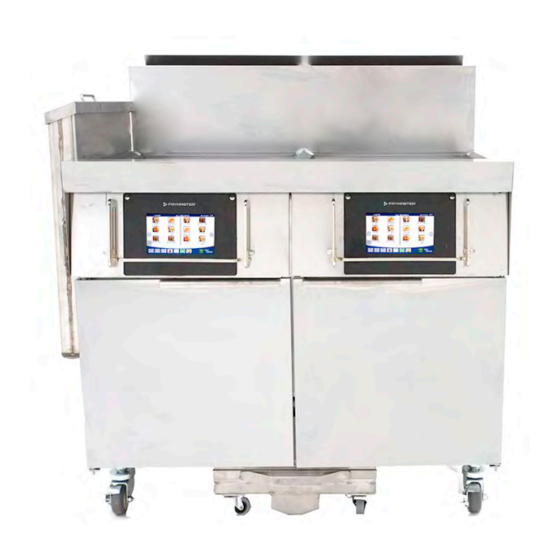

FilterQuick
Gas Fryer
Service Manual
This manual is updated as new information and models are released. Visit our website for the latest manual.
FOR YOUR SAFETY
Do Not Store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
*8197919*
Part Number: FRY_SM_8197919 09/2020
™
FQG60T easyTouch
Your Growth Is Our Goal
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FilterQuick easyTouch FQG60T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Frymaster FilterQuick easyTouch FQG60T

Summary of Contents for Frymaster FilterQuick easyTouch FQG60T

  • Page 1 Your Growth Is Our Goal FilterQuick ™ FQG60T easyTouch ® Gas Fryer Service Manual This manual is updated as new information and models are released. Visit our website for the latest manual. FOR YOUR SAFETY Do Not Store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
  • Page 2 NOTICE IF, DURING THE WARRANTY PERIOD, THE CUSTOMER USES A PART FOR THIS FRYMASTER EQUIPMENT OTHER THAN AN UNMODIFIED NEW OR RECYCLED PART PURCHASED DIRECTLY FROM FRYMASTER, OR ANY OF ITS FACTORY AUTHORIZED SERVICERS, AND/OR THE PART BEING USED IS MODIFIED FROM ITS ORIGINAL CONFIGURATION, THIS WARRANTY WILL BE VOID.

  • Page 3: Table Of Contents

    FQG60T easyTouch ® FILTERQUICK ™ SERIES GAS FRYERS SERVICE MANUAL TABLE OF CONTENTS Chapter 1: Service Procedures FQ4000 Menu Summary Trees ......................1-1 1.1.1 FQ4000 Menu Tree General Market ..................1-1 1.1.2 FQ4000 Information Statistics Menu Tree General Market ..........1-2 FQ4000 Password Codes ........................
  • Page 4 Bulk FIB Tests ........................1-38 1.21.2 Bulk Oil Wiring Connection Behind Fryer ..............1-39 1.21.3 Frymaster FQ-T Fryer and Bulk Oil System Plumbing Schematic ......1-39 1.21.4 Bulk Test Quick Reference ..................... 1-40 1.21.4.1 Dispose to Waste, Refill Vat from Bulk ............. 1-40 1.21.4.2...

  • Page 5: Chapter 1: Service Procedures

    ® FQG60T easyTouch SERIES FILTERQUICK GAS FRYERS CHAPTER 1: SERVICE PROCEDURES FQ4000 easyTouch ® Menu Summary Trees 1.1.1 FQ4000 easyTouch ® Menu Tree General Market Reflected below are the major programming sections in the FQ4000 easyTouch ® and the order in which the headings will be found in the controller.

  • Page 6: Fq4000 Information Statistics Menu Tree General Market

    1.1.2 FQ4000 Information Statistics Menu Tree General Market Reflected below are the information statistics in the FQ4000 and the order in which the headings will be found in the controller. Information Statistics Report Card 1. Today’s Report 2. Yesterday’s Report 3.

  • Page 7: Fq4000 Password Codes

    1.2 FQ4000 Password Codes Press the HOME button to enter MENUS, RECIPES, SETTINGS or SERVICE menus. 1650 – MENUS, RECIPES, • 1656 – SETTINGS (MANAGER), SERVICE (MANAGER) • 3000 – SETTINGS (SERVICE), SERVICE (SERVICE) Enter Tech Mode • 9000 – Component Check [SETTINGS (SERVICE), SERVICE (SERVICE) Enter Tech Mode] •...
  • Page 8 Code ERROR MESSAGE EXPLANATION SYSTEM INTERFACE BOARD 1 MISSING - CALL SERVICE SIB board 1 connection lost or board failure. DUPLICATE BOARD ID - CALL SERVICE Two or more controllers have the same location ID. USER INTERFACE CONTROLLER ERROR - CALL SERVICE The controller has an unknown error.

  • Page 9: Component Check

    1.5 Component Check The FQ4000 controller has a function to check the major components and their status. With the controller soft powered OFF, press the HOME button. Select Service, Service, Enter 9000, Select Tech Modes, scroll down and select Component Check. The component name is above each button.

  • Page 10: Reading The Model Numbers

    Reading Model Numbers Position Quick Model kW or Gas Energy Number Filtration Family Type Type of vats Spreader Splits Fryer Capacity 1FQG60U0ZQTZZNG Fryer # of Touch Basketlift Type 1 = E-Electric, G-Gas Splits Screen 2 = 30, 40, 50, 60lb frypot capacity Controller 3 = U-Open Fryer, T-Tube Fryer 4 = L-Left Side, R-Right Side, M-Middle, X-Mixed Positions, Z-All or...

  • Page 11: Thermostats

    (82ºC), the melt cycle function is activated where a timer activates for six seconds and deactivates for 24 seconds. If the temperature is 180ºF (82ºC) or above, the melt cycle is bypassed. In either case, ground is supplied to the other leg of the heat relay coils, which closes electronic switches in the 24 VAC circuit to provide current to the ignition module.

  • Page 12: Smart Interface Board (Sib)

    SMART INTERFACE BOARD LED 1.10 Smart Interface Board (SIB) DIAGNOSTIC LIGHTS All fryers in this series have a smart interface board (SIB) LED 1 24VAC Heat Relay located in the component box behind the controller panel. LED 2 12VDC to Controller The SIB board provides a link between the controller and LED 3 24VAC Latch Relay...

  • Page 13: Current Flow Through The Sib Board

    1.10.1 Current Flow Through the SIB board...

  • Page 14: Frequently Used Test Points For Sib

    1.10.2 Frequently Used Test Points for SIB (Smart Interface Board) NOTE: DO NOT CHECK WITH HARNESSES UNPLUGGED AS SHORTING THE PINS MAY OCCUR WHICH WILL DAMAGE THE BOARD. FREQUENTLY USED TEST POINTS FOR INTERFACE BOARD 1085980 Meter Test Setting Pins Results 24VAC Power to SIB 50VAC Scale...

  • Page 15: Sib (Smart Interface Board) Pin Positions And Harnesses

    1.10.4 SIB (Smart Interface Board) Pin Positions and Harnesses NOTE: DO NOT CHECK WITH HARNESSES UNPLUGGED (except ATO and Temp Probes) AS SHORTING THE PINS MAY OCCUR WHICH WILL DAMAGE THE BOARD. Connector From/To Harness # Function Voltage Wire Color From Transformer 24VAC Input 24VAC...

  • Page 16: Accessing Fryers For Servicing

    1.11 Accessing Fryers for Servicing Before performing any maintenance on your Frymaster fryer, shut off the gas supply to the unit and disconnect the fryer from the electrical power supply. Remove any attached restraining devices DANGER Moving a fryer filled with oil may cause spilling or splattering of the hot liquid. Follow the Drain to Pan instructions in Chapter 2 of the FQ4000 Controller Operation Manual before attempting to relocate a fryer for servicing.

  • Page 17: Adjusting The Pilot Flame

    Non- CE Standard for Incoming Gas Pressure FQG60T Gas Type Min Pressure W.C/kpa/mbar 6/1.49/14.93 11/2.74/27.37 Max Pressure W.C/kpa/mbar 14.00/3.48/34.84 14.00/3.48/34.84 CE Standard for Incoming Gas Pressure FQG60T Gas Type Pressure (mbar) (1) mbar=10,2mm H 20 or 25 28/30 or 50 37 or 50 Australia Standard for Incoming Gas Pressure FQG60T...
  • Page 18 RJ-45 Power / Communication Lanyard Tether USB Harness Speaker Harness Locator Wire Figure 2 With the replacement controller face down resting in the control box, reattach the lanyard tether FIRST. Failure to reinstall lanyard could result in damage to the SIB board. Reinstall the controller by reversing steps 1 thru 6.

  • Page 19: Overview Of Vat Components

    1.15.3 Overview of Vat Components ATO Probe VIB (AIF) Probe High Limit Temp Probe Probe Float Switch Figure 4 1.15.4 Replacing the Temperature Probe Figure 5 Drain the cooking oil from the frypot. Allow the frypot to cool completely before proceeding. Perform steps 1 through 8 from section 1.15.1.

  • Page 20: Replacing The High-Limit Probe

    1.15.5 Replacing the High Limit Probe Drain the cooking oil from the frypot. Allow the frypot to cool completely before proceeding. Perform steps 1 through 8 from section 1.15.1. Remove the bezel removing the two (2) screws on the bottom of the bezel (see Figure 5 from section 1.15.4). Locate the high-limit probe to be replaced inside the frypot (see Figure 4).

  • Page 21: Replacing The Ato Probe

    14. Mount the float switch shaft to the proper height in the frypot. 15. Using the hardware removed from step 10, securely tighten the compression fitting. 16. Using the wire insulation from step 7, slip the insulation over the new probe wires. 17.

  • Page 22: Replacing A Gas Valve

    Lower the control box by pushing gently down on 8he top, to gain access to the VIB (AIF) probe (see Figure 24). Disconnect the J1 connector on the VIB board. (see Figure 25). The VIB (AIF) probe is connected to pins 1 & 2 on the connector (see Figure 26).

  • Page 23: Adjusting The Ignitor Assembly

    1.15.11 Adjusting the Ignitor Assembly Disconnect the fryer from the electrical supply. Remove the outer cover plate by removing two screws as shown in Figure 30. Remove the air shutter plate if applicable by removing the four screws in the four corners as shown in Figure 31. Gently bend the ignitor spark probe until the gap distance is Figure 30 approximately ¼”...
  • Page 24 Remove the filter pan from the unit and drain the frypot being replaced into a Shortening Disposal Unit (SDU) or other appropriate metal container using the drain to pan function following the instructions in section 2.1.10 of the FQ4000 Controller Operation Manual. DANGER DO NOT attempt to drain more than one full frypot or two split frypots into the SDU at one time.

  • Page 25: Troubleshooting And Problem Isolation

    33. Remove bolts from brackets securing burner manifold to frypot. Leave the manifold in place. 34. Ensure wires and tubes will not be caught on the frypot when it is removed 35. Remove frypot from fryer by lifting up and out of the cabinet. 36.

  • Page 26: Heating (Ignition) Failure

    1.16.1 Heating (Ignition) Failure Heating (ignition) failure occurs when the ignition module fails to sense a pilot flame within the 90-second time delay period and locks out. When this happens, the module sends 24 VAC through the SIB (smart interface board) alarm circuit to the controller.

  • Page 27: Improper Burner Function

    1.16.2 Improper Burner Function With problems in this category, the burner ignites but exhibits abnormal characteristics such as “popping,” fluctuating flame intensity, and flames shooting out of the flue. “Popping” indicates delayed ignition. In this condition, the main gas valve is opening but the burner is not immediately lighting.

  • Page 28: Improper Temperature Control

    Burners lighting on the left side only may be caused by a trailing pilot problem (four- and five-tube frypots) or improper burner manifold pressure. Fluctuating flame intensity is normally caused by either improper or fluctuating incoming gas pressure but may also be the result of variations in the kitchen atmosphere.

  • Page 29: Leakage

    filter pan suction tube are present and in good condition. Missing or worn O-rings will allow the pump to suck air and decrease its efficiency. Also check the pre-filter. A plugged pre-filter (see Figure 34) can slow the flow of oil. Use the attached wrench to open (see Figure 35) and clean the pre-filter (see Figure 36).

  • Page 30: Troubleshooting Guides

    The clamps on the rubber boots that hold the drain tube sections together may loosen over time as the tubes expand and contract with heating and cooling during use. Also, the boot itself may be damaged. If the section of drain tube connected to the drain valve is removed for any reason, ensure that its rubber and clamps are in good condition and properly fitted around the drain tube when it is reinstalled.

  • Page 31: Troubleshooting The Gas Valve

    1.17.2 Troubleshooting the Gas Valve Prior to checking for problems associated with the gas valve, ensure that the unit is calling for heat. Also, for non-CE units, verify that the gas valve is in the ON position. The following processes will assist you in troubleshooting the gas valve and ruling it out as a probable cause: If 24 VAC is not present across gas valve main coil, the probable cause is the 24 VAC circuit.

  • Page 32: Probe Resistance Chart

    1.18 Probe Resistance Chart Probe Resistance Chart For use with FQG60-T fryers manufactured with Minco RTD probes only. OHMS OHMS OHMS OHMS OHMS 1059 1204 1350 1493 1634 1070 1216 1361 1503 1644 1080 1226 1371 1514 1654 1091 1237 1381 1524 1664...
  • Page 33 Problem Probable Causes Corrective Action Enter the INFO mode, and select SOFTWARE, review the FIB software status. If FIB: 00.00.000 is shown, the communication is lost between the FIB. Cycle power off for 60 seconds or longer using the master power reset switch. Repeat step A to check if a software version is shown other than zeros.
  • Page 34 Problem Probable Causes Corrective Action Ensure oil reservoir has oil. Ensure the lines/ATO pump is not obstructed. If an oil saddle is connected, ensure the quick disconnect is connected properly. Empty the reservoir and clean out pick up tube/saddle hose. Check to see that fryer is heating.

  • Page 35: Ato (Automatic Top-Off Troubleshooting)

    Problem Probable Causes Corrective Action Clear filter error properly. When “CHANGE FILTER PAD YES/NO” is displayed, do NOT press any button until the pan has been removed for at least thirty seconds. Filter error exists. One vat doesn’t top off. Actuator, pump, loose connection, After thirty seconds the controller returns to OFF or RTD or FIB issue.

  • Page 36: Control And Transformer Box Connections

    Problem Probable Causes Corrective Action A. Verify that the power cord is fully plugged in and the circuit A. Power cord is not plugged in breaker is not tripped. or circuit breaker is tripped. Filter pump won’t start or B. If the motor is too hot to touch for more than a few seconds, B.

  • Page 37: 15-Pin Control Box Connection Test Points (C6)

    1.19.3.2 15-pin Control Box Connection Test Points (C6) 24VAC + HOT Dispose Dispose Bulk Oil Open - Clos ed + Transformer Use these pins to easily test these test points 24VAC from (Filter Fresh Oil Interface Board) board. Solenoid + 24VAC COM - Bulk Oil 24VAC...
  • Page 38 1.19.3.3 Transformer Box Connections continued (1FQG60 shown) Power Reset Filter Pump Relay Motor Relay 24VDC Power Supply to Filter Pump Motor Transformer 24VAC SIB Power Transformer Figure 41A 1-34...

  • Page 39: Fib (Filter Interface Board) Filtration Top-Off Pin Positions And Harnesses

    1.19.4 FIB (Filter Interface Board) Filtration and Top-off Pin Positions and Harnesses NOTE: DO NOT CHECK WITH HARNESSES UNPLUGGED AS SHORTING THE PINS MAY OCCUR WHICH WILL DAMAGE THE BOARD. Connect Wire From/To Harness # Pin # Function Voltage Color Brown Ground - +24VDC...

  • Page 40: Replacing The Ato Pump Or Solenoid

    1.19.5 Replacing the FIB Board Power Supply, Filter Pump Motor Relay or Transformer See section 1.15.2 for instructions to replace the FIB board. 1.19.5.1 FIB (Filter Interface Board) LED’s and Test Points Test Points LED 3 3.3VDC Green LED LED 8 LED 5 LED 6 LED 7...

  • Page 41: Fib (Filter Interface Board) Service Procedures

    1.20 FIB (Filter Interface Board) Service Procedures The controller has a service mode that allows manually opening of return and drain valves, manual operation of the filter pump motor and the ATO pump. To access the mode, follow these steps: Press the Home button.

  • Page 42: Bulk Oil Service Issues

    1.21 Bulk Oil Service Issues 1.21.1 Bulk FIB Tests These instructions may NOT be applicable to all bulk oil systems. The FilterQuick-T™ fryer will ONLY operate with a three-pole float switch for waste oil. If a two- pole switch is used it may cause damage to the FIB board. The float switches are polarity specific which may short to ground and damage an FIB board.

  • Page 43: Bulk Oil Wiring Connection Behind Fryer

    24VAC WHEN BULK TANK IS FULL ON REAR OF ON REAR OF 0 VAC WHEN BULK TANK IS NOT FULL FRYER FRYER Figure 46 1.21.3 Frymaster FilterQuick-T Fryer and Bulk Oil System Plumbing Schematic Return Valves Frypots Check Valve Manifold Check...

  • Page 44: Bulk Test Quick Reference

    1.21.4 Bulk Test Quick Reference 1.21.4.1 Dispose to Waste, Refill Vat from Bulk Press the filtration menu button. Select DISPOSE OIL. “DISPOSE NOW? is displayed. * Press the √ (check) button to dispose of oil in vat. “REMOVE FILTER PAN” is displayed. Remove the filter pan. “IS FILTER PAN EMPTY?”...

  • Page 45: Fill Vat From Bulk

    22. “CLOSE DISPOSE VALVE” is displayed. 23. Close dispose valve. 24. “FILL VAT FROM BULK? is displayed. 25. Press “NO” if you wish to leave vat empty and exit. 1.21.4.3 Fill Vat from Bulk The vat must be off. Press the filtration menu button. Press the ADVANCED FILTER OPTIONS button.

  • Page 46: Vib (Valve Interface Board) Service Procedures

    1.22 VIB (Valve Interface Board) Service Procedures The VIB (Valve Interface Board) controls the actuators that open and close the drain and return valves. The VIB board is located inside a protective housing under each frypot (see Figure 48). Figure 48 24VDC 24VDC 3.3VDC...

  • Page 47: Vib (Valve Interface Board) Troubleshooting

    1.22.1 VIB (Valve Interface Board) Troubleshooting NOTE: DO NOT CHECK WITH HARNESSES UNPLUGGED AS SHORTING THE PINS MAY OCCUR WHICH WILL DAMAGE THE BOARD. Probable Causes Corrective Action Problem Check pins 4 and 5 of J2 at the FIB board. Should read 24VDC.
  • Page 48 1.22.2 VIB (Valve Interface Board) Actuator Board Pin Positions and Harnesses NOTE: DO NOT CHECK WITH HARNESSES UNPLUGGED AS SHORTING THE PINS MAY OCCUR WHICH WILL DAMAGE THE BOARD. Connector From/To Harness PN Pin # Function Voltage Wire Color VIB Probe Ground Yellow VIB Probe Time Delay Relay Board...

  • Page 49: Replacing A Vib (Valve Interface Board) Board

    1.22.3 Replacing a VIB (Valve Interface Board) Disconnect the fryer from the electrical power supply. Locate the VIB (valve interface board) to be replaced under a frypot. Mark and unplug the location of the harnesses. The VIB assembly is held in place with one screw (see Figure 50).

  • Page 50: Float Switch Troubleshooting

    1.22.5.1 Float Switch Troubleshooting Typical Sensor Related Failures -E65 in the error log. If the controller continues to display E65 and does not heat, and gas supply, gas valve, etc. have been checked and no heat lamp illuminates because no call for heat is initiated, then follow these steps: - Check (see diagram below) - Ensure the float switch can move freely up and down the rod.

  • Page 51: Fq4000 Controller Service Procedures

    1.23 FQ4000 Controller Service Procedures 1.23.1 FQ4000 Controller Troubleshooting Probable Causes Corrective Action Problem A. Verify the power cord is plugged in and that circuit breaker is not tripped. B. Swap the controller with a controller known to be good. If A.
  • Page 52 Probable Causes Corrective Action Problem Press home button. Press Service button. Press Service FQ4000 display is in wrong button again. Enter 3000. Press Tech Modes. Press Toggle to temperature scale Incorrect display option programmed. Select. Press F° to C° to toggle temperature scale. Press YES to (Fahrenheit or Celsius).

  • Page 53: Fq4000 Controller Functional Troubleshooting

    Probable Causes Corrective Action Problem The float switch does not detect oil. 1. Ensure the frypot is full of oil. 2. Float switch may be stuck up or down. 3. Clean the float switch. FQ4000 displays Low oil Ensure the float switch moves freely up and down. Ensure Dirty or stuck float switch.

  • Page 54: Loading And Updating Software Procedures

    1.24 Loading and Updating Software Procedures Updating the software takes approximately 30 minutes. The software only needs to be loaded in the USB port in the far-left fryer cabinet and it will update ALL the controllers and boards in the system. To update the software, follow these steps carefully: The software update may lose the location of product icons on the front screen after the update.

  • Page 55: Updating Menu Files

    25. Cycle the fryer control power using the reset switch. This is located under the USB slot on the far-left side of the fryer (see ENSURE THE SWITCH IS PRESSED AND HELD FOR 30 SECONDS. Failure to press and Figure 58). hold the reset switch long enough, may cause an incomplete software update.

  • Page 56: Software/Menu Update Troubleshooting

    1.25.1 Software/Menu Update Troubleshooting CAN COMMUNICATION FAILED or CAN communication error during an update Power cycle fryer ensuring that the reset switch is pressed and held for 30 seconds or greater or power is removed for 30 seconds or greater. Update the software or menus again.

  • Page 57: Wiring Diagram

    1.26 Wiring Diagram 1-53...
  • Page 58 FRYMASTER 8700 LINE AVENUE, SHREVEPORT, LA 71106-6800 800-551-8633 318-865-1711 WWW.FRYMASTER.COM EMAIL: FRYSERVICE@WELBILT.COM ©2020 Welbilt Inc. except where explicitly stated otherwise. All rights reserved. Continuing product improvement may necessitate change of specifications without notice. Part Number FRY_SM_8197919 09/2020...
