Hytronik HIR15 Manual

IP65 DALI-2 PIR Zhaga book 18 Standard Motion Sensor
HIR15 (High-Bay)
DALI-2 output

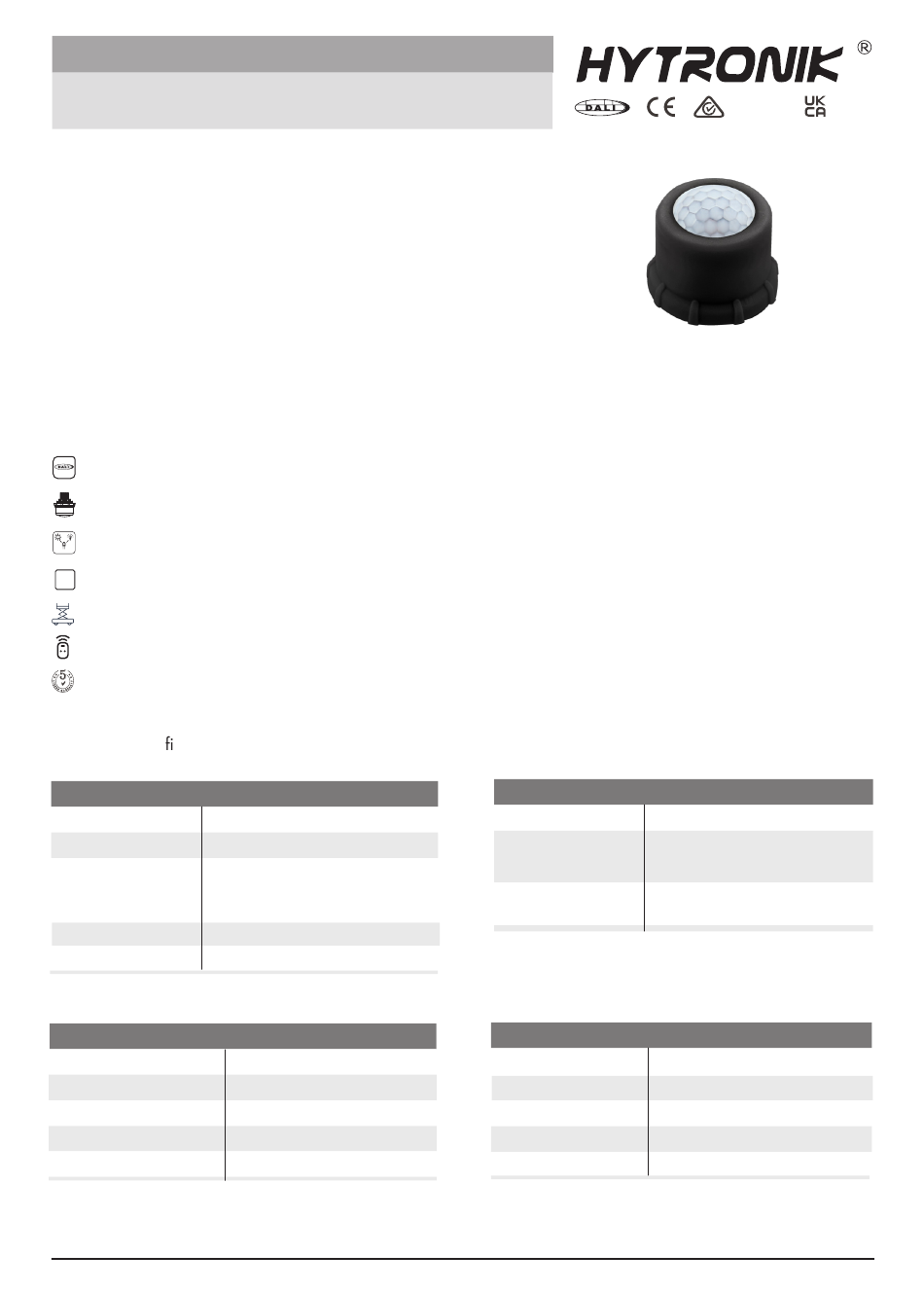

Product Description

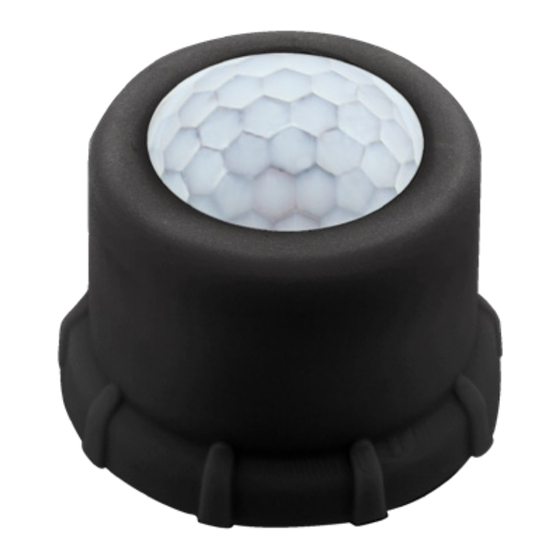

HIR15 is a Zhaga book 18 standard PIR motion sensor with DALI-2
output (40mA DALI-2 power supply built-in), which enables lighting
designers/manufacturers to freely connect to luminaires. All sensor
parameters can be programmed through remote controller HRC-11, like
adjusting sensitivity, time, lux level, and brightness settings. Designed
with a sturdy IP65 structure, HIR15 is perfect for high-bay applications,
accommodating installations of up to 12m in height, making it ideal for
outdoor lighting like streetlights.
Hardware Features
50mA DALI-2 Broadcast output
2
Zhaga Book 18 standard
Photocell Advance
Photocell Advance TM
IP65 design
IP
High-bay (up to 12m height)
Remote controllable
5-year warranty
Technical Speci cations
Input & Output Characteristics
Operating voltage
Stand-by power
Output
Lux range
Sensitivity
Environment
Operation temperature
Storage temperature
Relative humidity
IP rating
Insulation
Subject to change without notice.
TM
24VDC
max<0.5
I guaranteed: 30mA
I max: 50 mA
U rated: 15VDC
0-1000Lux
10% / 30% / 50% / 75% / 100%
Ta: -20°C ~ +50°C
-30°C ~ +70°C
20 ~ 90%
IP65
Class II
2
Sensor Data
Sensor principle
Max installation height：12m
Detection range*
Max diameter： 20m
Detection angle
* The detection range is heavily influenced by sensor
placement (angle) and different walking paces. It may
be reduced under certain conditions.
Safety & EMC
EMC standard (EMC)
Safety standard (LVD)
Certification
Compliance
DALI-2
Edition: 14 Aug. 2024 Ver. A0
IP65
TYPE D TYPE D
PIR
360 O
EN55015, EN61547
EN61347-1, EN61347-2-11
CE , UKCA
RoHS Reach
IEC62386-101,103,351
Page 1/6
